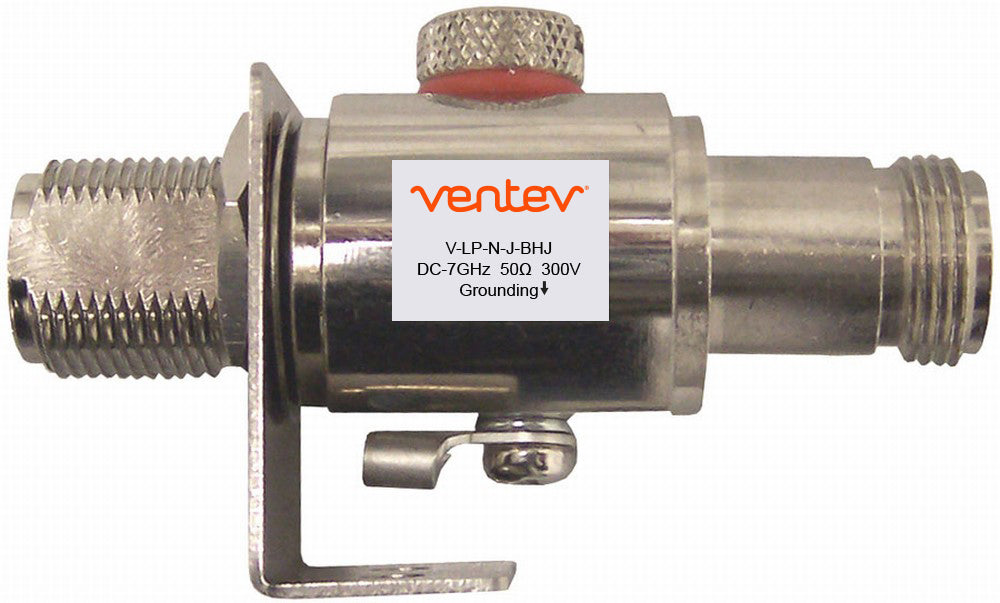

Ventev 0-7 GHz Lightning Arrestor with N Female to N Female Bulkhead Connectors

The Ventev Lightning Protector with N-Female Connectors is an essential safety device designed to shield network equipment from lightning-induced surges and static build-up. Ideal for protecting outdoor antennas and network systems, this device ensures continuous operation and reliability in various weather conditions, up to 7 GHz in frequency.

• Frequency Range: Operates from DC up to 7 GHz, suitable for a wide variety of applications.
• Connectors: Features N Female to N Female Bulkhead connectors, ensuring compatibility with a broad range of equipment.
• Protection Level: Includes a gas tube spark over voltage at 300 V and an impulse wave discharge rating, providing robust protection against surges.
• Insertion Loss: Minimal, at ≤ 0.1 dB at 4 GHz and ≤ 0.25 dB at 7 GHz, preserving signal integrity.
• VSWR: Excellent Voltage Standing Wave Ratio of ≤ 1.1 at 3 GHz, ≤ 1.2 at 4 GHz, and ≤ 1.4 at 7 GHz.
• Ingress Protection: Rated IP67, making it dust-tight and capable of withstanding temporary immersion in water.
• Operating Conditions: Designed to function in extreme temperatures ranging from -55° C to 105° C (-67° F to 221° F).
• Ground Connection: Can be established either through feedthrough or screw terminal.

This lightning protector is a crucial component for any setup involving outdoor or exposed network equipment, ensuring safety and functionality even under adverse environmental conditions.

• Ventev 0-7 GHz Lightning Arrestor with N Female to N Female Bulkhead Connectors Spec Sheet
