Expert System Design and Installation for ERRCS, DAS & Public Safety

Upgrade Your Building to Meet ERRC Standards Quickly and Painlessly

Request a FREE Consultation

Why Partner with UberSignal?

  • We Handle Everything: From initial consultation to after-sales support, your trust is our priority.
  • Fully Compliant: Our systems are updated, code-compliant, and FirstNet-ready.
  • Experience Matters: With a nationwide team of professionals, we have delivered impeccable RF coverage solutions across diverse projects.
  • Pursuit of Perfection: UberSignal is dedicated to providing the best Emergency Responder Radio Communication Systems (ERRCS) in the industry.

How We Do It

Our Comprehensive Process

We've spent years perfecting our process at UberSignal. From the first chat to the final system check, we make sure every step is clear and effective, delivering top-notch connectivity to your building.

  • 1. Professional Site Survey & Assessment

    • Detailed site evaluation for current coverage, construction materials, and ideal antenna positions.
    • Data-driven signal testing with special attention to environmental and constructional variables.
    • Detection of weak signal areas and potential issues, ensuring comprehensive coverage.

  • 2. Tailored Consultation & System Design

    • Client-focused consultations to understand unique needs and budget constraints.
    • In-depth floor plan analysis to craft the best solution.
    • Designs ready to adapt to any updates in NFPA 72 and ICC codes.

  • 3. Expert Hardware Installation & Optimization

    • Intelligent placement of system components for optimal coverage.
    • Enhanced speeds and performance aligned with client and regulatory standards.
    • System fine-tuned for maximum efficiency.

  • 4. Dedicated Post-Installation Support

    • A robust 1-year workmanship warranty, with a 3-year guarantee on equipment.
    • Expert technical support included, featuring both remote and on-site assistance.
    • Extended support packages available.

Overview

Why Do We Need ERRCS and Public Safety Systems?

The modern world has seen a surge in the complexity and scale of architectural designs. High-rise buildings, expansive commercial spaces, and sprawling urban developments are becoming more commonplace. With this growth, there's a heightened emphasis on ensuring safety within these infrastructures, especially during emergencies. Enter the critical need for public safety systems and Emergency Responder Radio Communication Systems (ERRCS).

Public safety systems are not merely an add-on to the modern building's design; they are an integral part of it. In moments of crisis—whether it's a fire, a medical emergency, or a security threat—effective communication can be the difference between a swift resolution and a prolonged disaster. Traditional structures made of wood and brick have now evolved, and materials like concrete, metal, and energy-efficient coatings, which while beneficial in many ways, pose significant challenges to radio frequency (RF) penetration. The result? Dead zones or areas of weak signals which can impede critical communications during emergencies.

ERRCS step in to bridge this gap. Specifically designed to enhance and ensure radio frequency coverage within buildings, they empower first responders - firefighters, paramedics, and police officers - with the ability to communicate effectively and coordinate their efforts. When every second counts, these systems ensure that there's no break in communication, facilitating timely and efficient responses.

In a world where the unexpected can happen at any moment, the need for public safety systems and ERRCS is evident. They are not just tools but lifelines, ensuring that when adversity strikes, our emergency personnel have the robust communication tools they need to handle the situation.

How it Works

How an Emergency Responder Radio Communication System (ERRCS) Works

Basic Concept of ERRCS

The primary purpose of an ERRCS is to ensure that emergency responders can maintain clear radio communications within structures, especially where radio frequencies might be weakened or blocked. This can be especially crucial in high-rise buildings, underground spaces, and dense infrastructural layouts where traditional radios might face interference.

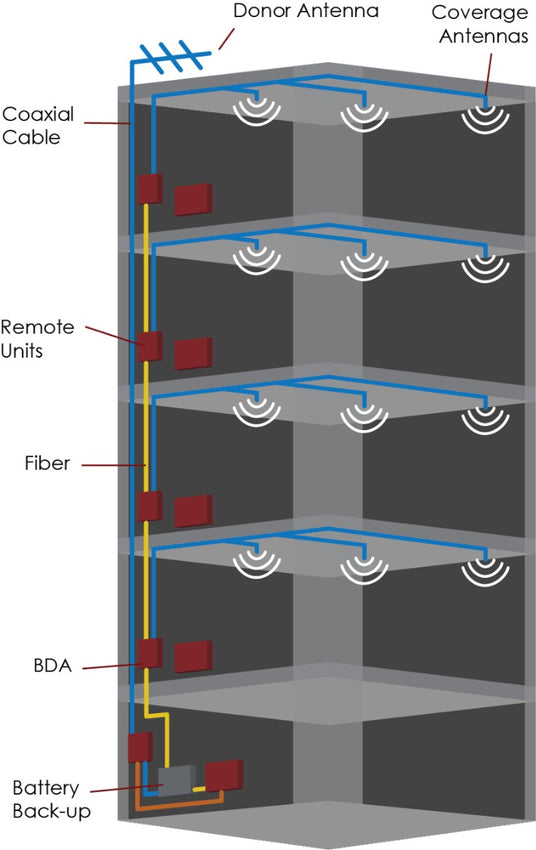

Components of an ERRCS

  1. Donor Antenna: This is an external antenna, usually placed on a building's roof or an elevated area. It captures the external radio signals from a public safety network.

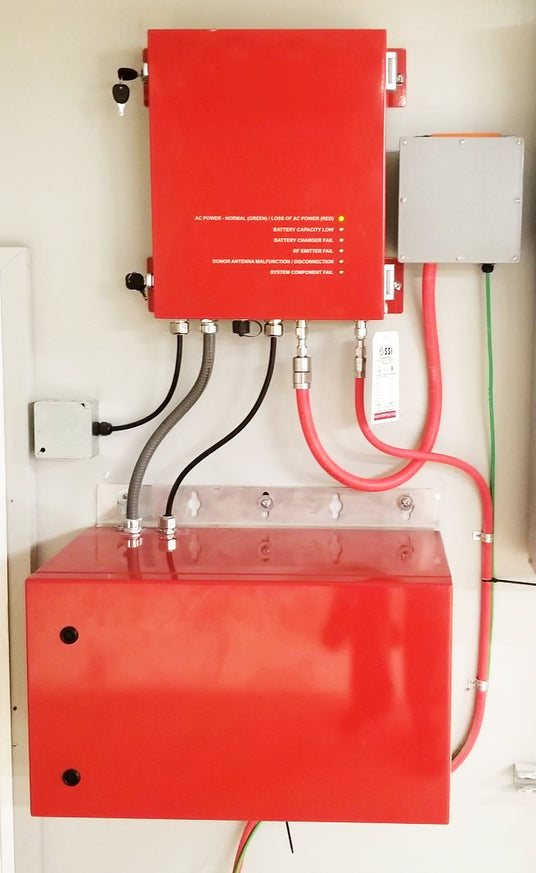

  2. Signal Boosters/Bi-Directional Amplifiers (BDAs): Once the donor antenna captures the radio signals, these signals are then sent to the BDA. As the name suggests, this device amplifies or boosts the received signal. The enhanced signal is then redistributed inside the building.
  3. Distributed Antenna System (DAS): The DAS is a network of strategically placed internal antennas that distribute the boosted signal throughout the building. These antennas ensure that the amplified signals reach even the farthest and most shielded corners of a structure.
  4. Battery Backup: To ensure the system remains operational during power outages — which can be frequent in emergencies — ERRCS usually comes with a battery backup system. This ensures continuous communication capability even when main power sources fail.

How It All Comes Together

  1. The donor antenna captures external public safety radio signals.
  2. These captured signals are then relayed to the signal booster/BDA. The BDA amplifies these signals to a level that's optimal for distribution within a building.
  3. The DAS then takes over. The boosted signals are sent through the DAS, which, through its network of antennas, ensures comprehensive coverage throughout the building. Whether it's a basement, a stairwell, or a shielded room, the DAS ensures signals reach clearly.
  4. In the event of power loss, the battery backup kicks in, ensuring the system remains operational and there's no disruption in communication./li>

Benefits and Considerations

  • Safety: The primary advantage is safety. ERRCS ensures that emergency personnel can communicate without hindrance, improving response times and coordination.
  • Compliance: Many jurisdictions now mandate the installation of ERRCS in buildings to obtain certificates of occupancy. Having a well-functioning ERRCS ensures compliance with local regulations and safety codes.
  • Customization: Every building is unique, and ERRCS systems can be tailored to address specific structural challenges. This might involve adjusting the placement of antennas, choosing different types of BDAs, or employing various signal distribution strategies.

In essence, an ERRCS is like a relay team, ensuring that the baton (in this case, the radio signal) is passed smoothly and efficiently from one member to another, guaranteeing that emergency responders can always communicate clearly, irrespective of where they are in a building.
