CEL-FI QUATRA EVO: The Enterprise-Grade Cellular Coverage Solution
Are you struggling with weak cellular signals inside your building? The CEL-FI QUATRA EVO is the cutting-edge solution for enterprise environments needing reliable 3G, 4G, and 5G cellular coverage. Designed for seamless integration in spaces like retail stores, hospitals, schools, and offices, CEL-FI QUATRA EVO provides uninterrupted, high-quality cellular connectivity with a scalable and future-ready active DAS hybrid system.
What is CEL-FI QUATRA EVO?
The CEL-FI QUATRA EVO is an advanced in-building cellular coverage system that combines the best features of traditional Distributed Antenna Systems (DAS) with modern active signal-boosting technology. Powered by Nextivity’s fourth-generation IntelliBoost chip, it maximizes cellular signal gain, providing consistent and powerful cellular coverage for one or two mobile network operators (MNOs). Unlike passive systems, QUATRA EVO’s all-digital architecture supports Power-over-Ethernet (PoE) and category cabling, simplifying installation and reducing infrastructure costs.
Key Features and Benefits
- IntelliBoost Technology: The proprietary IntelliBoost chip optimizes signal quality in real-time, providing the highest industry gain while ensuring network safety.
- Single or Dual-Operator Support: Customize the setup for either single-operator (four bands) or dual-operator mode (two bands per operator), depending on your cellular coverage needs.
- Fiber Expansion for Scalability: With the CEL-FI QUATRA EVO Fiber Hub, coverage can be expanded up to 2.0 km (1.24 miles) away, supporting up to 12 Coverage Units (CUs) for larger buildings or campus environments.
- Carrier-Grade Reliability: The system meets carrier-grade requirements, ensuring reliable coverage without network interference, certified for use with AT&T, Verizon, T-Mobile, and other major networks.
- Quick and Simple Installation: Thanks to its modular design and PoE support, CEL-FI QUATRA EVO can be installed and configured within days.
- Remote Management via WAVE Portal: Remotely monitor system performance, update settings, and troubleshoot through the Nextivity WAVE Portal.

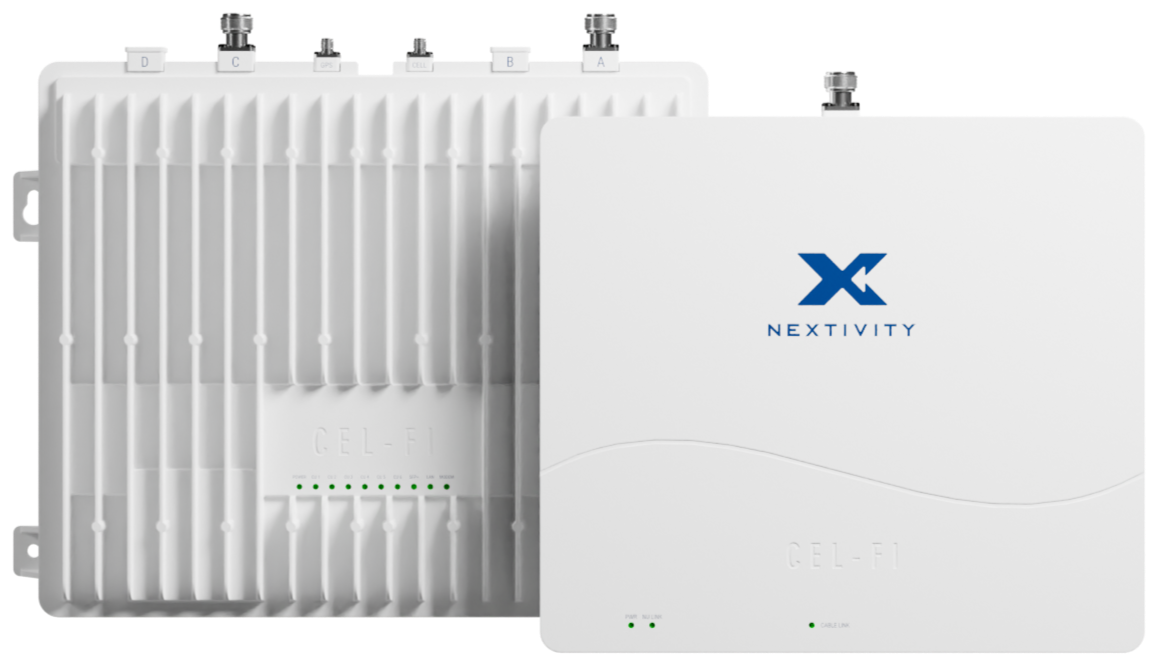

Hardware Components
The CEL-FI QUATRA EVO system includes three key components that make up a flexible and powerful network:
- Network Unit (NU): The main control unit that interfaces with donor antennas to collect the cellular signal from outside sources and distribute it to Coverage Units.

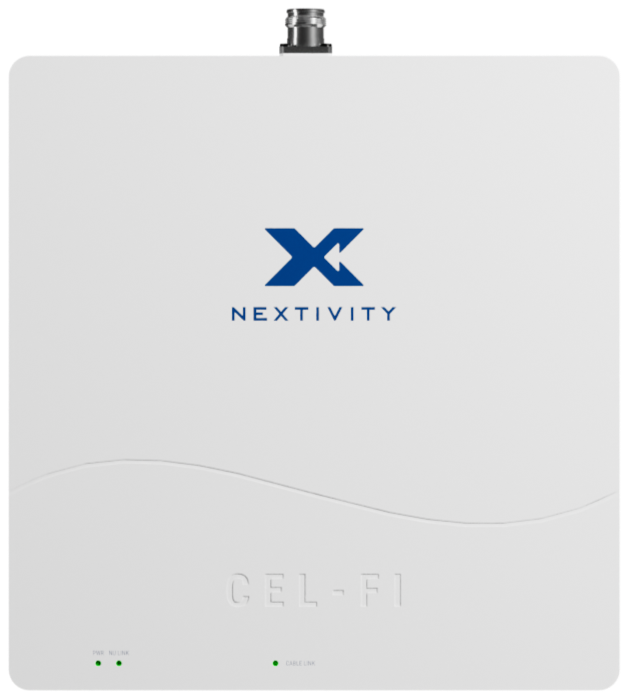

- Coverage Unit (CU): Each CU retransmits the cellular signal within the building. A single NU can support up to six CUs, and this number doubles with the use of the optional Fiber Hub.
- Fiber Hub: Expands the NU’s reach by adding up to six more CUs. Ideal for larger or multi-building installations, with a maximum range of 2.0 km.
Configuration Options
QUATRA EVO is configurable to suit various operator requirements and building setups:
- Single-Operator Mode: Designed for one mobile network operator (MNO), this mode supports four cellular bands and uses both donor ports for maximum signal quality.
- Dual-Operator Mode: Ideal for enterprises that need support for two operators. This mode configures each donor port for a separate MNO, supporting two bands per operator and ensuring uninterrupted multi-operator service.
Installation & Setup
CEL-FI QUATRA EVO’s modular design and category cabling make it easy to install. Each component is built with simplicity in mind:
- Plan the Installation: Conduct a site survey to determine optimal locations for donor and server antennas.
- Mount the NU and CUs: Secure units in strategic locations to maximize coverage. Each CU can cover several thousand square feet.
- Connect to the WAVE Portal: Register the system online via the WAVE Portal for real-time monitoring and configuration.
WAVE Portal for Management
The Nextivity WAVE Portal enables remote management of CEL-FI QUATRA EVO. This secure cloud-based platform provides:
- System Health Monitoring with live notifications for potential issues.
- Remote Configuration and Firmware Updates to keep your system at peak performance.
- Advanced Analytics, such as signal strength and coverage metrics.
Who Should Use CEL-FI QUATRA EVO?
CEL-FI QUATRA EVO is the ideal solution for enterprises that depend on consistent indoor cellular coverage. This includes:
- Retail Stores and Shopping Centers that need to ensure reliable customer connectivity.
- Hospitals and Healthcare Facilities, where clear communication is essential for staff and patients.
- Corporate Offices and Campuses, providing uninterrupted service across multi-story buildings.
Technical Specifications
| Specification | Details |
|---|---|
| Signal Gain | Up to 100 dB |
| Max Coverage Units | 6 (12 with Fiber Hub) |
| Power Source | PoE for CUs; AC Power for NU |
| Coverage Distance | Up to 2.0 km with Fiber Range Extender |
Frequently Asked Questions
- Can the system support multiple operators? Yes, it can support up to two operators in dual-operator mode.
- What is the maximum coverage area? Each NU can support up to 12 CUs with the Fiber Hub, covering large buildings and campuses.
- Is the system compatible with 5G? Yes, QUATRA EVO is 5G-ready and supports a wide range of bands for optimal performance.
- How long does installation take? With its modular, PoE design, installation can be completed within days.
- Does it require regular maintenance? No, but the WAVE Portal provides ongoing monitoring and alerts for any potential issues.
Conclusion
The CEL-FI QUATRA EVO is an enterprise-grade solution for ensuring consistent, high-quality cellular coverage in any large building. With its scalable design, carrier-grade reliability, and remote management capabilities, it is an invaluable asset for enterprises committed to optimal connectivity. For effortless, high-gain coverage that grows with your needs, choose CEL-FI QUATRA EVO.
