SureCall Force5 2.0 Enterprise Signal Booster

The SureCall Force5 2.0 Enterprise Signal Booster is the next evolution of the first 5-band enterprise booster on the market, the SureCall Force-5. It features the FCC maximum downlink power, for the most coverage possible inside, will amplify all networks from the major carriers in North America, and includes a built-in monitoring unit, so you can see how the system is working from anywhere in the world. The different outside and inside antenna combinations allow the SureCall Force5 2.0 to be able to handle a wide variety of boosting needs. If you need a powerful and reliable enterprise booster system, the Force5 2.0 is going to be a great option for you.

Why the SureCall Force5 2.0?

• More output power than any other booster (+17dBm) gives you the largest coverage area when you have a strong outside signal.
• Strongest gain (boosting power) allowed by the FCC, for the most coverage inside with a weak to moderate outside signal.
• Built-in Sentry remote monitoring.
• Works wirelessly. No physical connection to your phone required.
• Supports multiple phones and all carriers at the same time.
• Everything you need is included in the kit.
• Fewer dropped calls
• Faster Internet data speeds
• Better voice quality
• Texts that send quickly
• Longer battery life

Your purchase is covered by our 60-day money-back guarantee, so you can try it risk-free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.

Recommended For

The SureCall Force5 2.0 is an ideal solution for enterprise-level passive DAS installations, where you need maximum coverage inside with a complex signal environment outside. The different antenna options allow you to customize the system for the specific situation, so you can maximize the effectiveness and minimize the installation issues, and the monitoring service provides peace of mind to the building owner.

How it Works

The SureCall Force5 2.0 signal booster offers the options of either an omnidirectional or a yagi directional outside antenna, and either a panel or dome inside antenna, so while the operation of the booster system is the same, there will be slight differences in the installation based on the type of antennas that you choose.

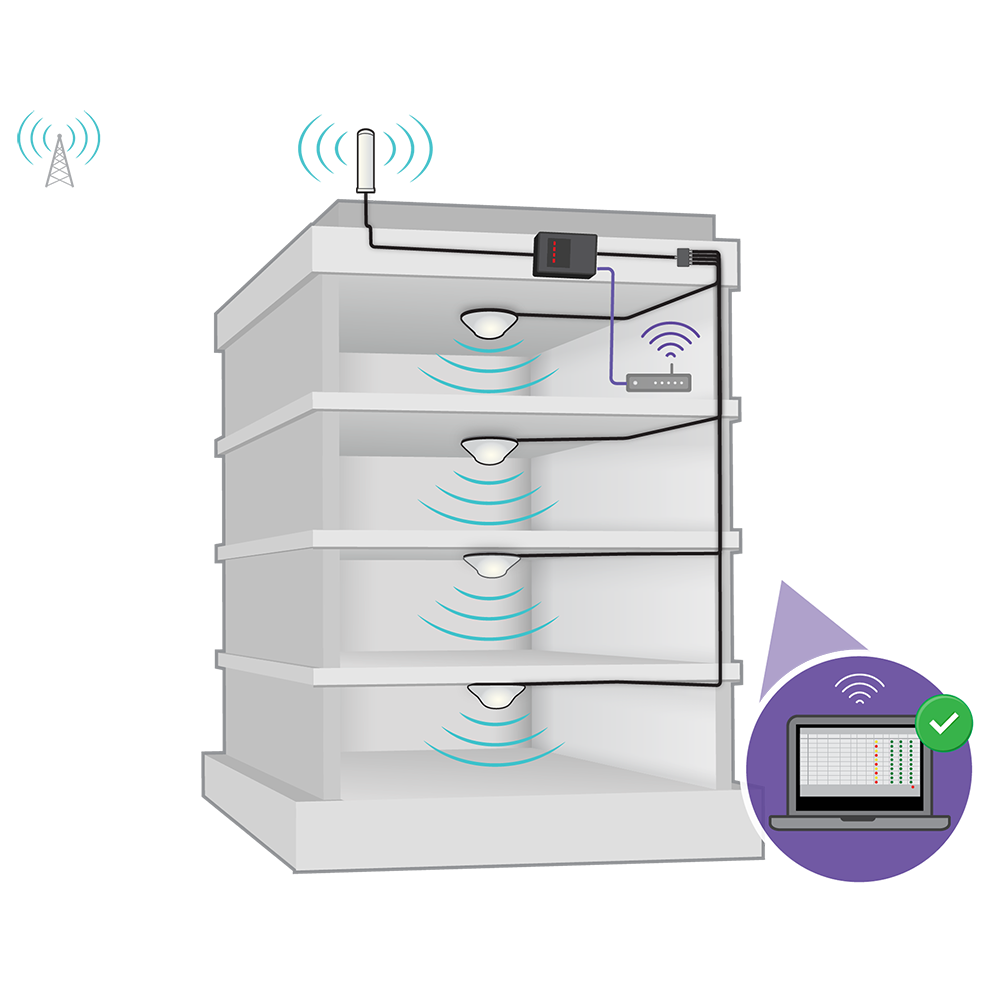

A signal booster system typically works by having the outside antenna mounted at or above the roofline of the building that requires better signal, in a location where the antenna can pick up the strongest existing outside cell signal. The signal is received by the antenna and is sent over a cable into the building, where it is received by the Force5 2.0 amplifier. The amplifier boosts the cellular signal, and then sends it over another cable to the inside antenna, which broadcasts the improved signal to the area where it's located.

The entire process also works in reverse, so you get a strong and reliable connection back to your carrier.

Outside Antenna Options

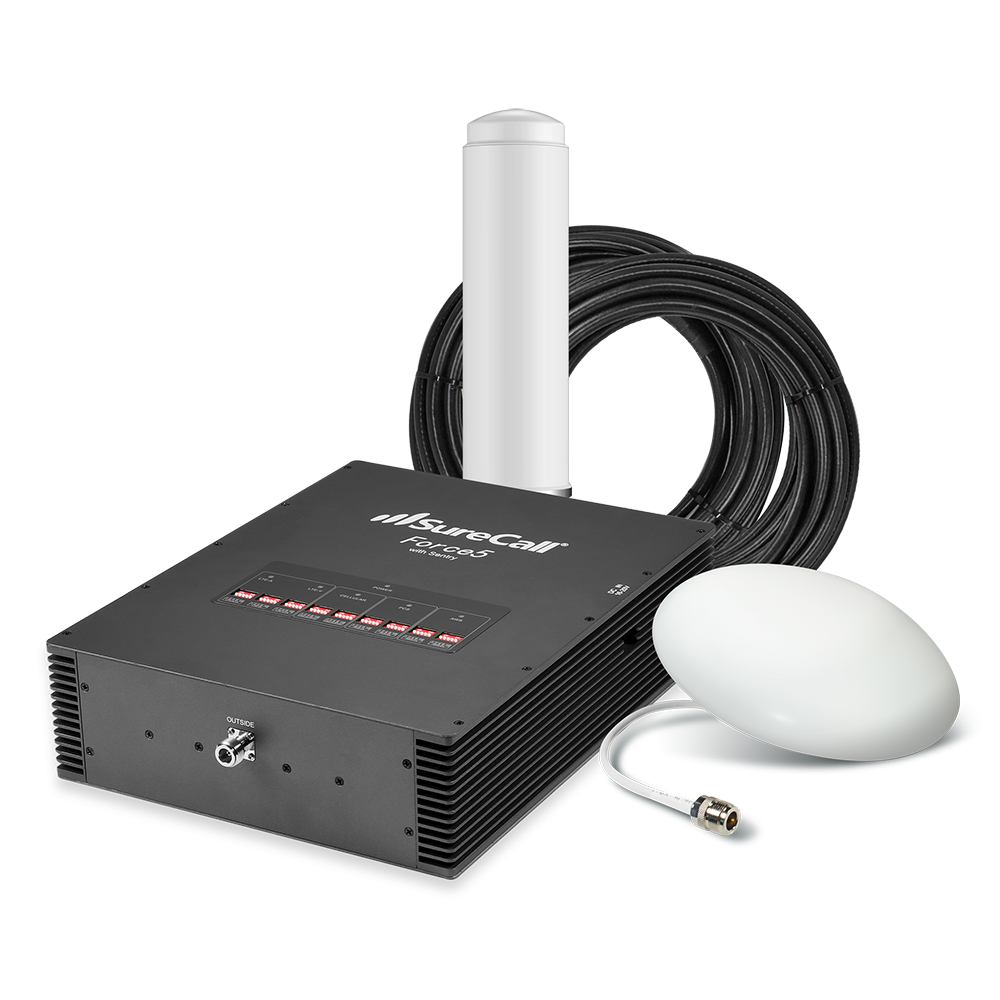

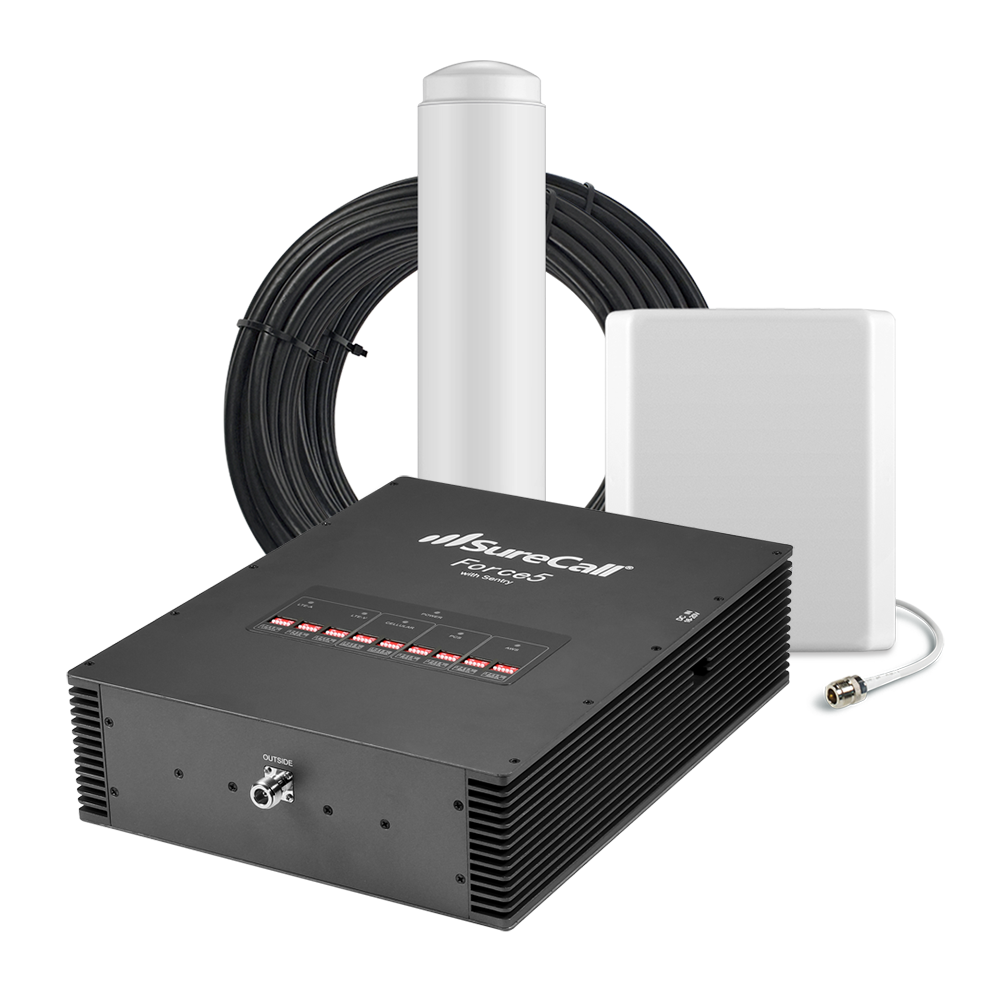

• Omni Outside Antenna: This antenna has 4 dB of gain and will send and receive in all directions, so it should work for all carriers, irrespective of the tower location, but omni antennas are not as powerful as directional antennas, so you'll generally get less coverage inside with one. We only recommend omni antennas for situations where you have a moderate to strong (3-bars or more) existing outside signal.

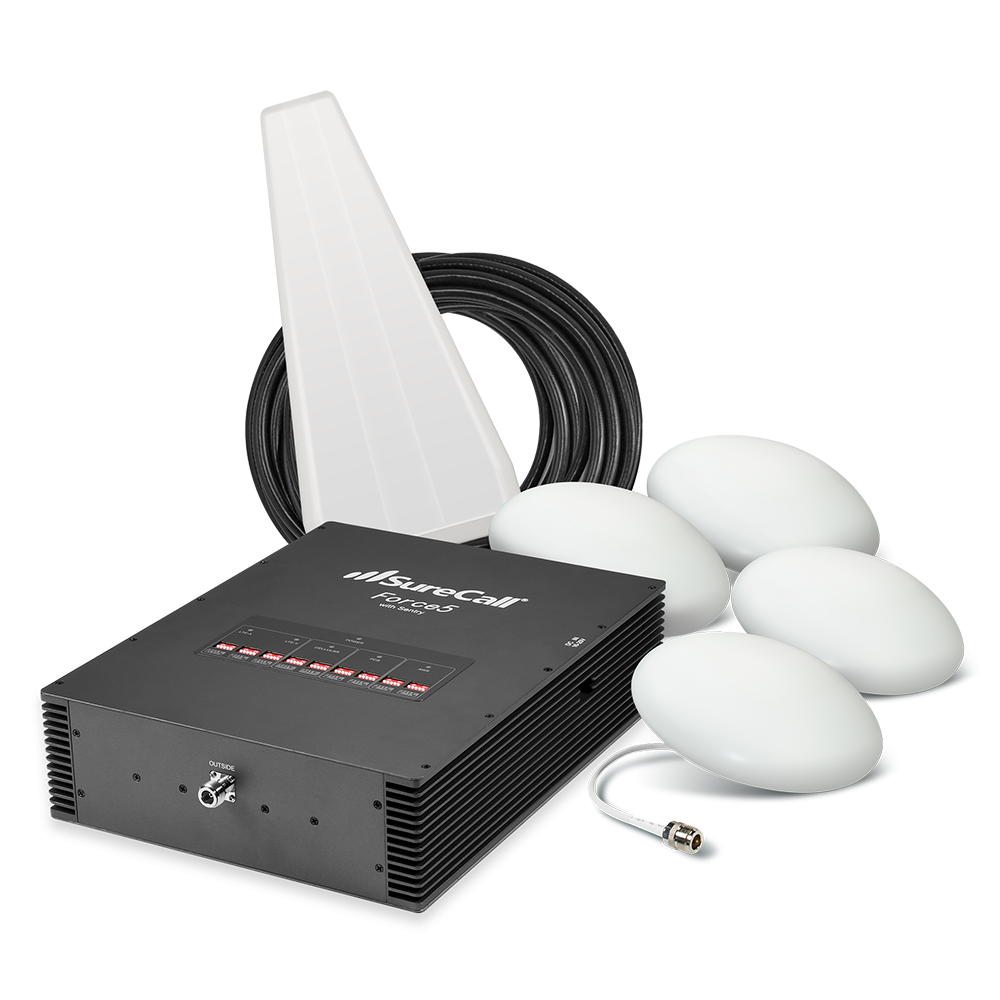

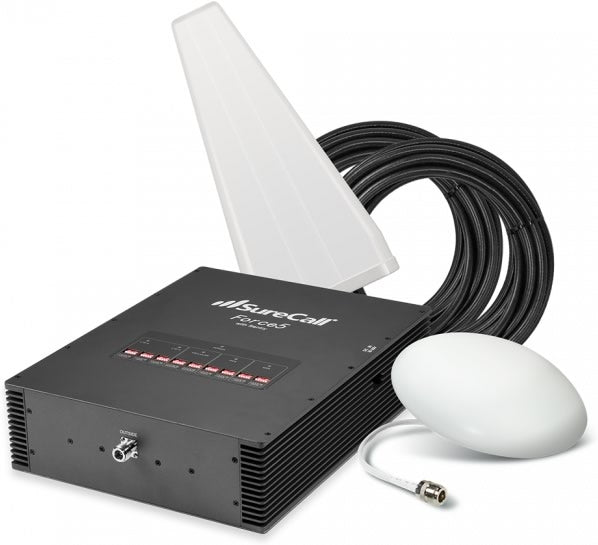

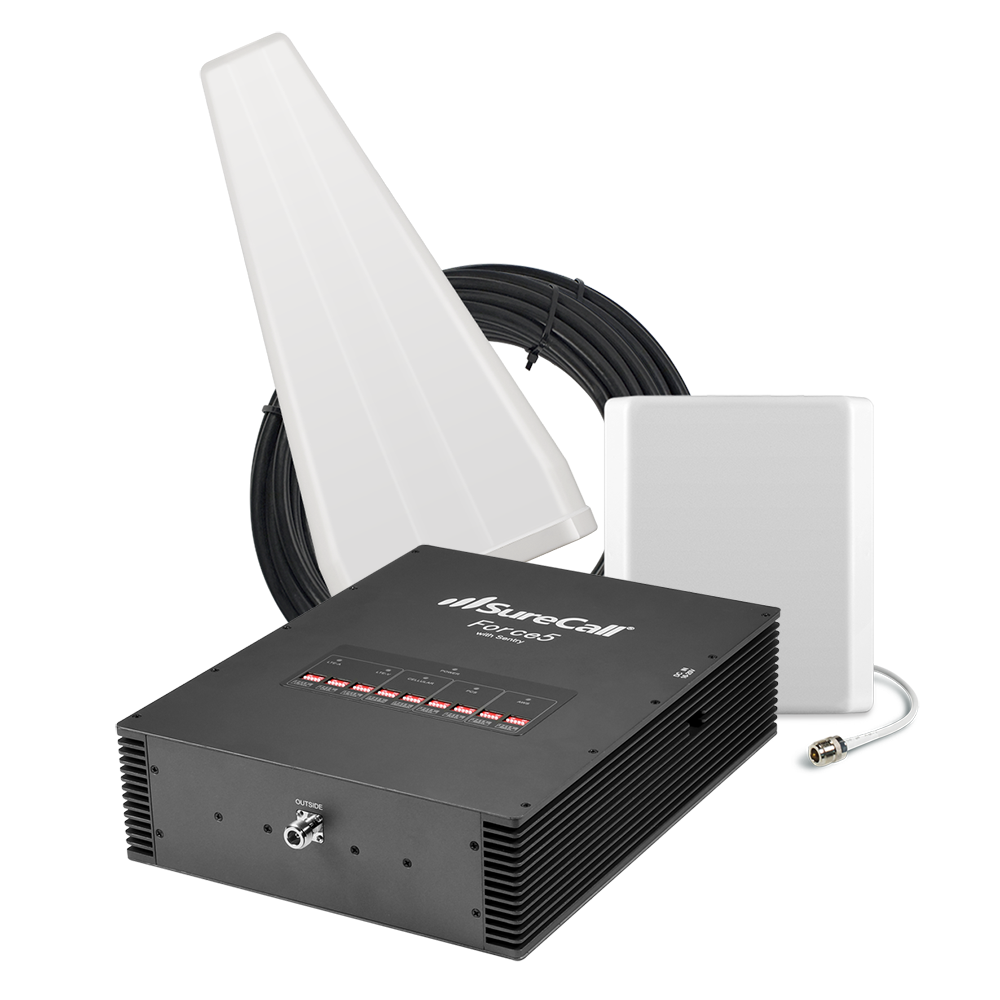

• Yagi Outside Antenna: This antenna has 10 dB of gain and must be aimed and can cover about 75 degrees of the horizon in one direction. See our guide on how to aim the directional antenna. Since a directional antenna can only cover a portion of the horizon, you may only be able to cover the carrier(s) with towers in the direction that the yagi antenna is pointing. The advantage is that because they are aimed, they're much more powerful so you'll get more coverage area inside of the building with a directional antenna.

Inside Antenna Options

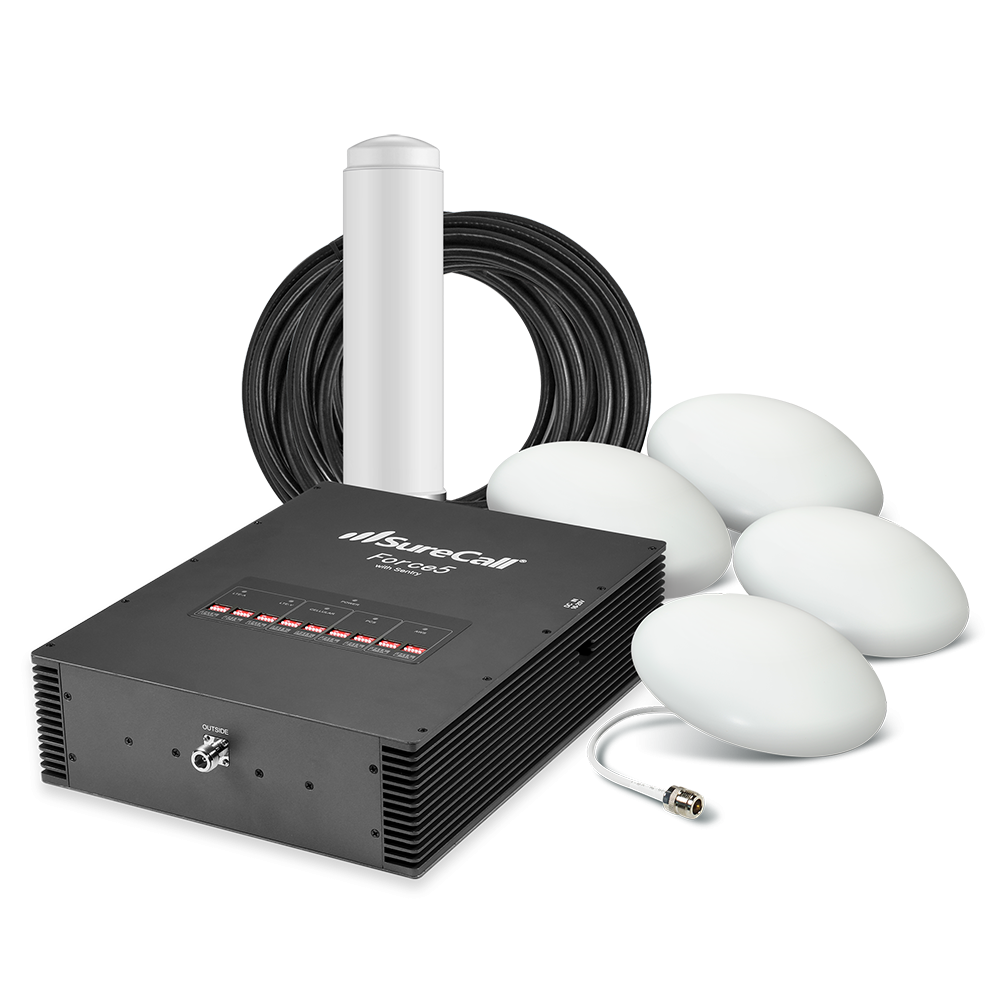

• Ultra Thin Dome Inside Antenna: This antenna has up to 7.5 dB of gain and a very low profile when mounted to a ceiling compared to the standard dome antenna. You must have access to the backside of the ceiling in order to run a cable to it, so it is an ideal antenna for a drop ceiling panel. Dome antennas typically will only cover a single floor but can possibly cover multiple floors depending on the floor construction in between.

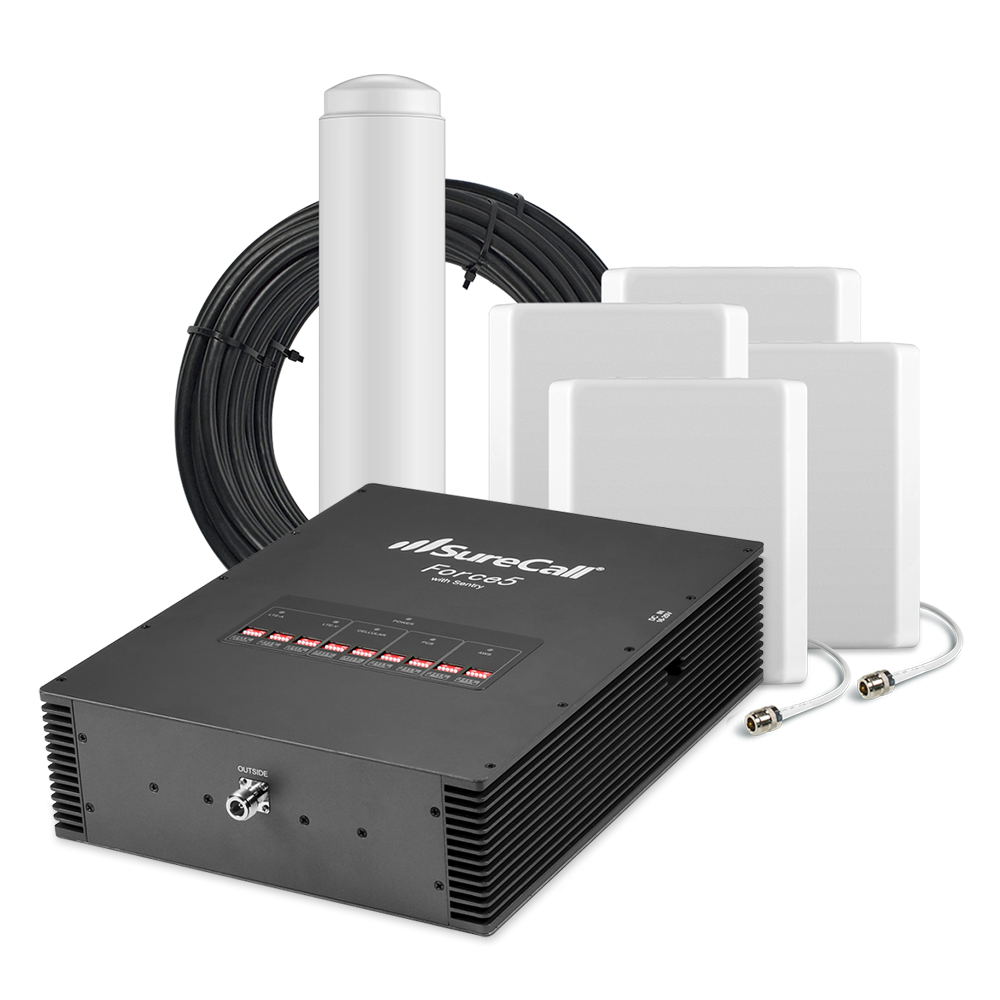

• Panel Inside Antenna: This antenna has 10 dB of gain and is generally mounted on the ceiling aimed downwards in the center of the space that needs boosted signal, but can also be laid face down on the floor of an attic or space above the ceiling, again in the center of the space that needs boosted signal, and it will broadcast boosted signal through the floor to the space below. Finally, panel antennas can be mounted on a wall and broadcast boosted signal across a space.

Estimated Inside Coverage

The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The tables below show how much coverage you may get depending on your outside signal strength and the antenna combinations that you choose:

Coverage with an Omni Outside Antenna

Coverage with a Yagi Outside Antenna

Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.

Additional Coverage

If you need more coverage than the SureCall Force5 2.0 Signal Booster will provide due to a weak outside signal, then you can install multiple systems in the same location. Please contact us for assistance with mapping out the ideal location for each system.

Will this Work for my Phone and Carrier?

The SureCall Force5 2.0 has been designed to work with all cell phones and all carriers in the United States, Canada and Mexico, as well as carriers from some other countries in Latin America, South America, and Australia.

Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.

In the Box

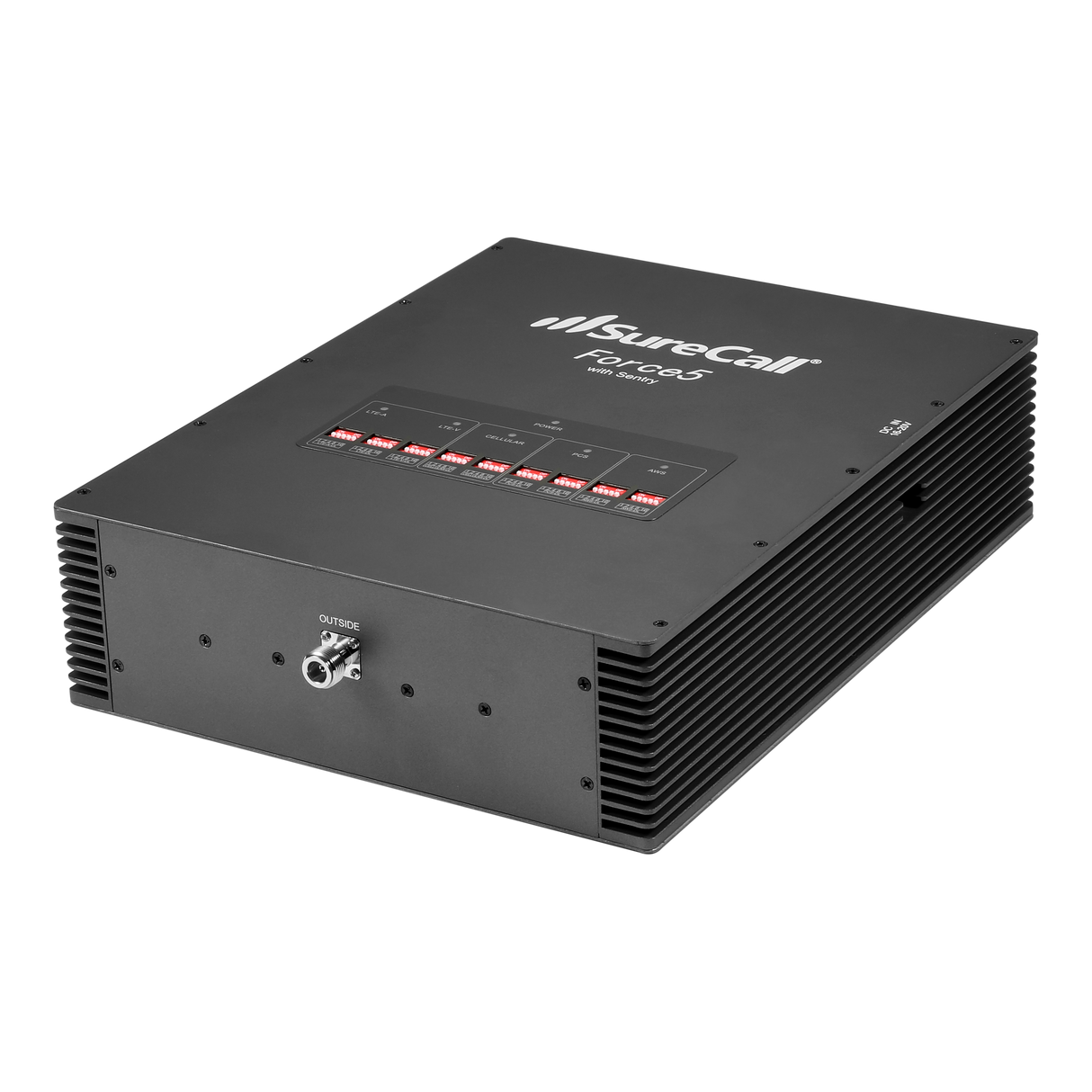

• SureCall Force5 2.0 Amplifier
• SureCall Power Supply
• SureCall Yagi Outside Antenna Option
• SureCall Omni Outside Antenna Option
• SureCall Panel Inside Antenna Option
• SureCall Ultra Thin Dome Inside Antenna Option (either 1 or 4 antennas)
• 30 ft of SureCall LMR400 Cable
• 75 ft of SureCall LMR400 Cable (5 cables if 4 antenna option is chosen)
• SureCall 4-way Splitter (if 4 antenna option is chosen)

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
