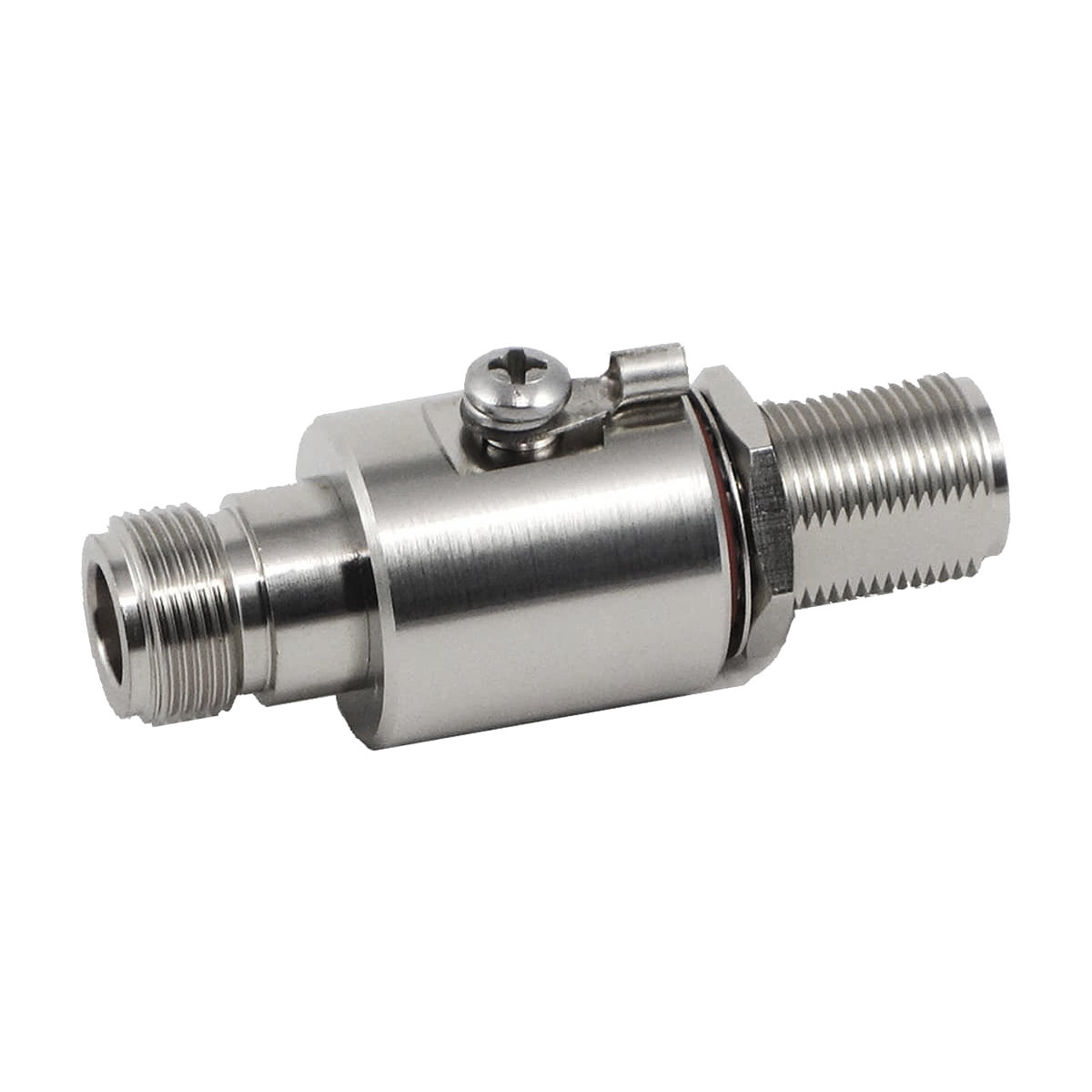

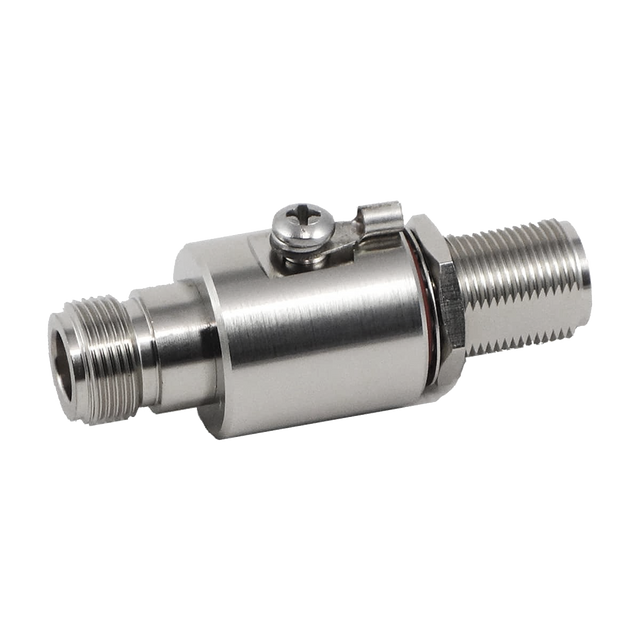

SureCall SC-LP Lightning Surge Protector

The SureCall SC-LP Lightning Surge Protector is designed to protect your cell phone signal booster system from potential damage caused by lightning strikes to the external antenna. By installing this surge protector in-line between the external antenna and the amplifier, you can safeguard your equipment effectively. Note that an additional cable is required for installation, such as a short 2' Ultra Low Loss Coax Cable.

• Signal Protection: Acts as a signal filter to pass desired frequencies while suppressing lightning surges.
• In-Line Installation: Installs between the external antenna and the amplifier, requiring an additional coax cable.
• Replaceable Gas Discharge Element: Features a gas discharge element that breaks the connection during large power surges and can be replaced if needed.
• Grounding Required: Must be grounded using 10 or 12-gauge copper wire attached to a grounding point or rod.
• Durable Materials: Constructed from brass rods with nickel and gold electroplating, silicon rubber, PTFE, and stainless steel.
• N-Female Connectors: Equipped with N-Female connectors on both ends for easy installation.
• High Performance: Operates within a frequency range of DC-3000 MHz with a peak power of 200W and an insertion loss of ≤0.50 dB.
• Reliable Insulation: Features an insulation resistance of ≥5000 MΩ and a contact resistance of ≤1 MΩ.

The SureCall SC-LP Lightning Surge Protector provides essential protection against power surges and lightning strikes, ensuring the longevity and performance of your signal booster system. Its high-quality materials and replaceable components make it a reliable choice for safeguarding your equipment.

• SureCall SC-LP Data Sheet
