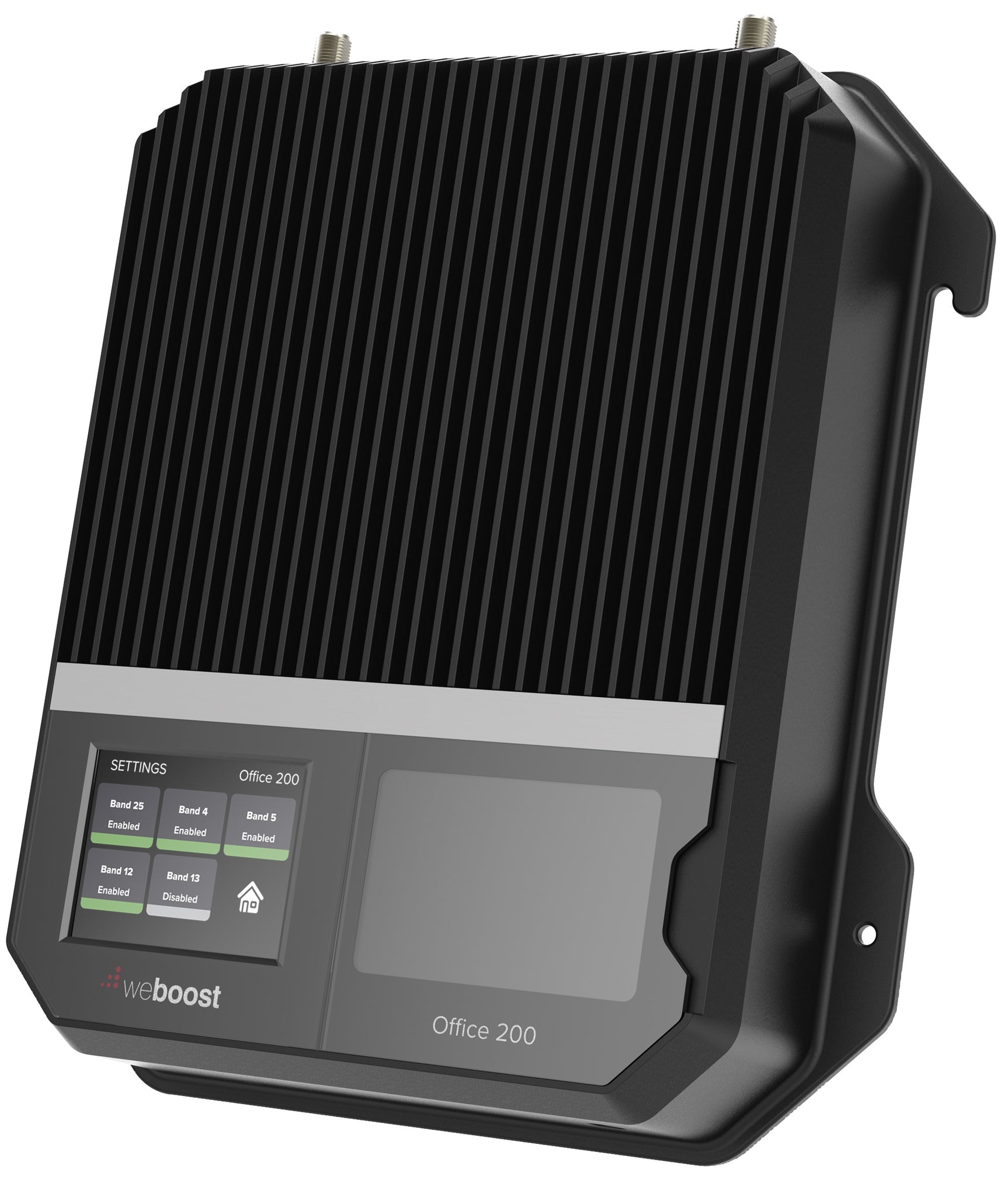

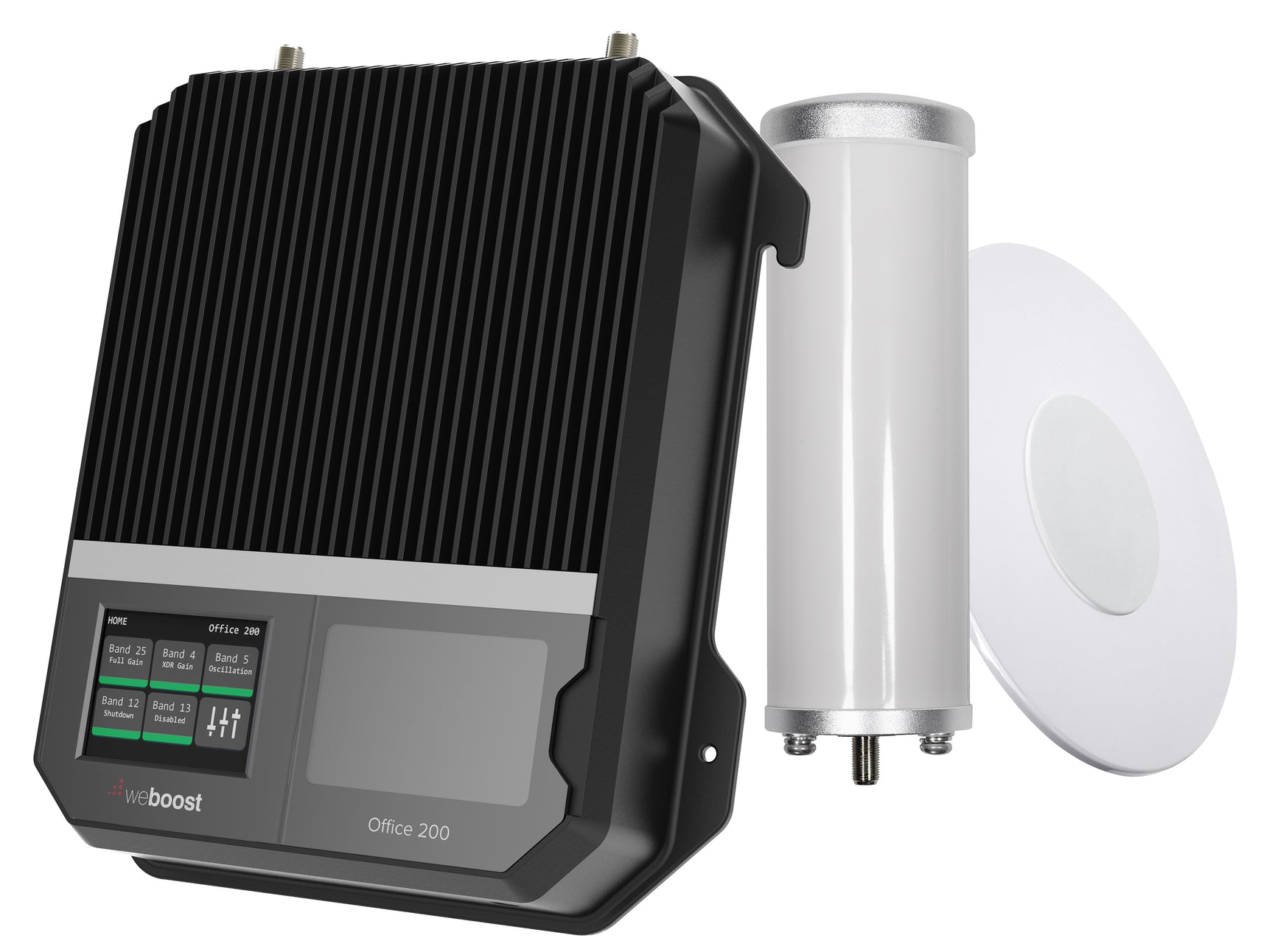

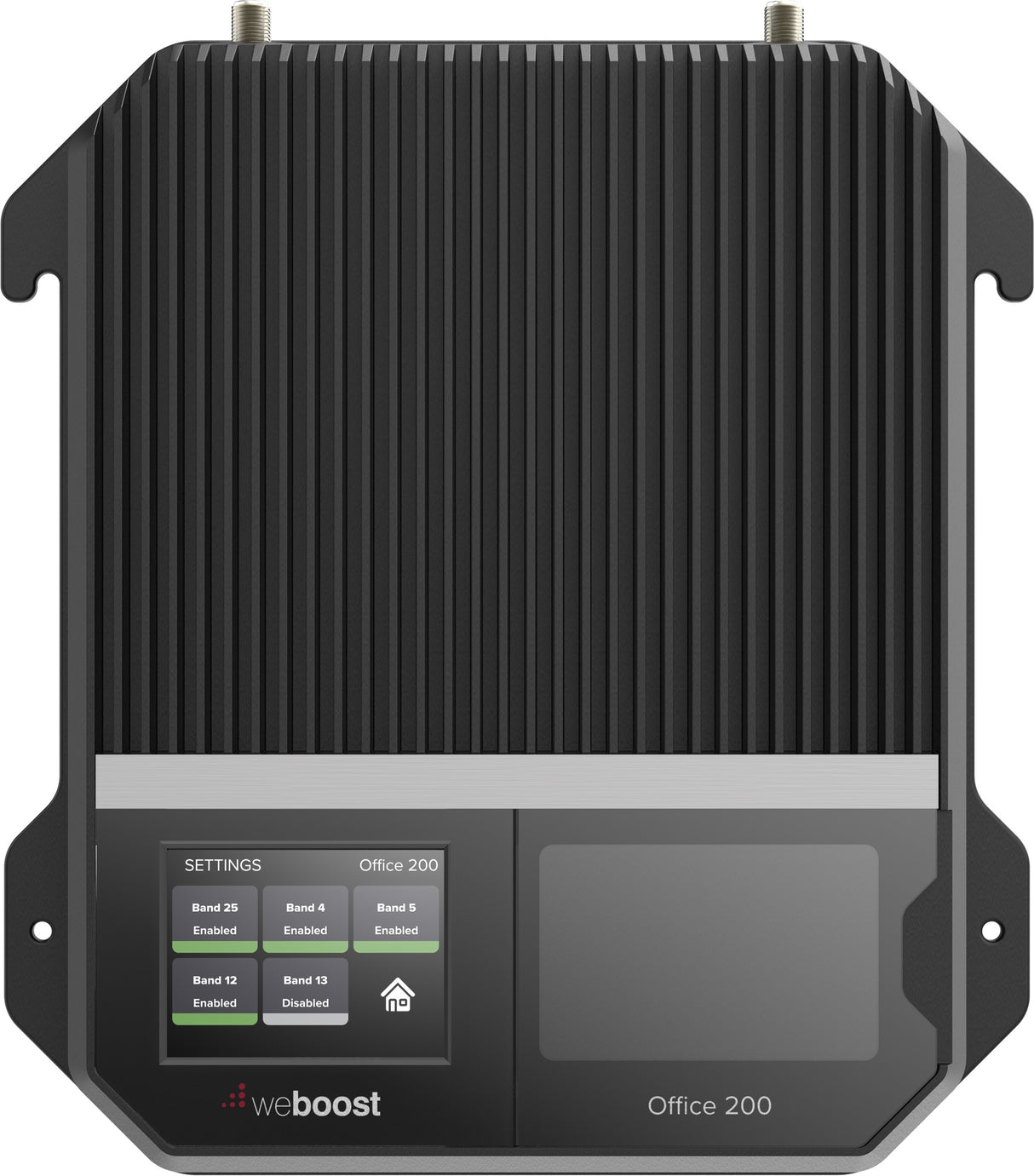

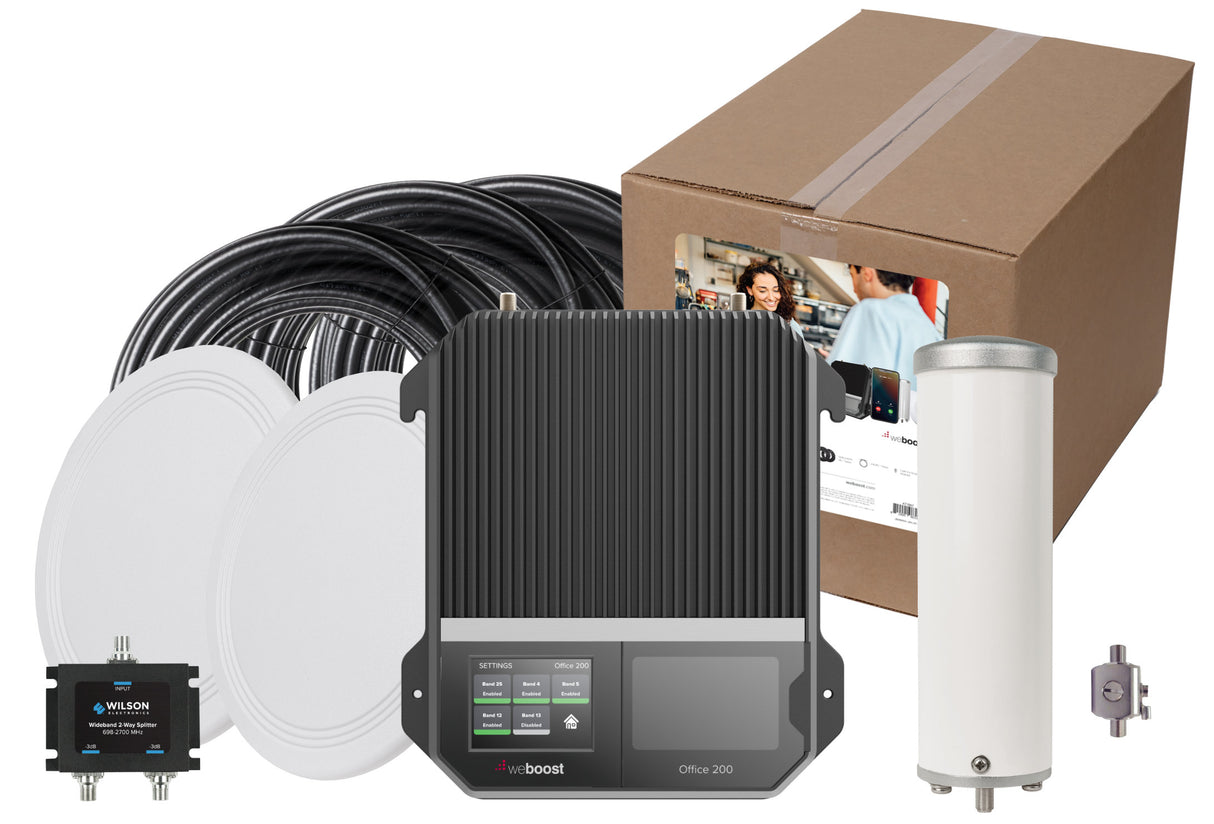

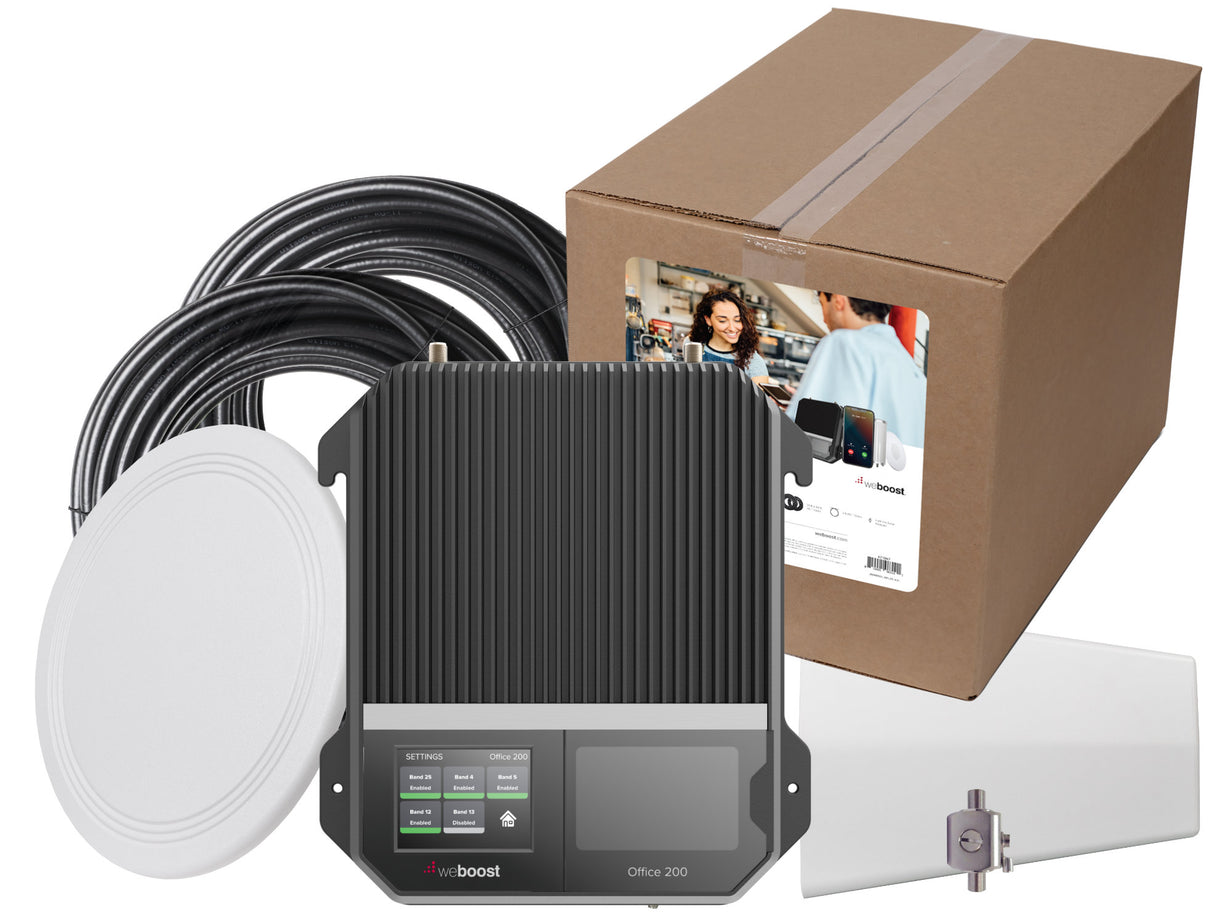

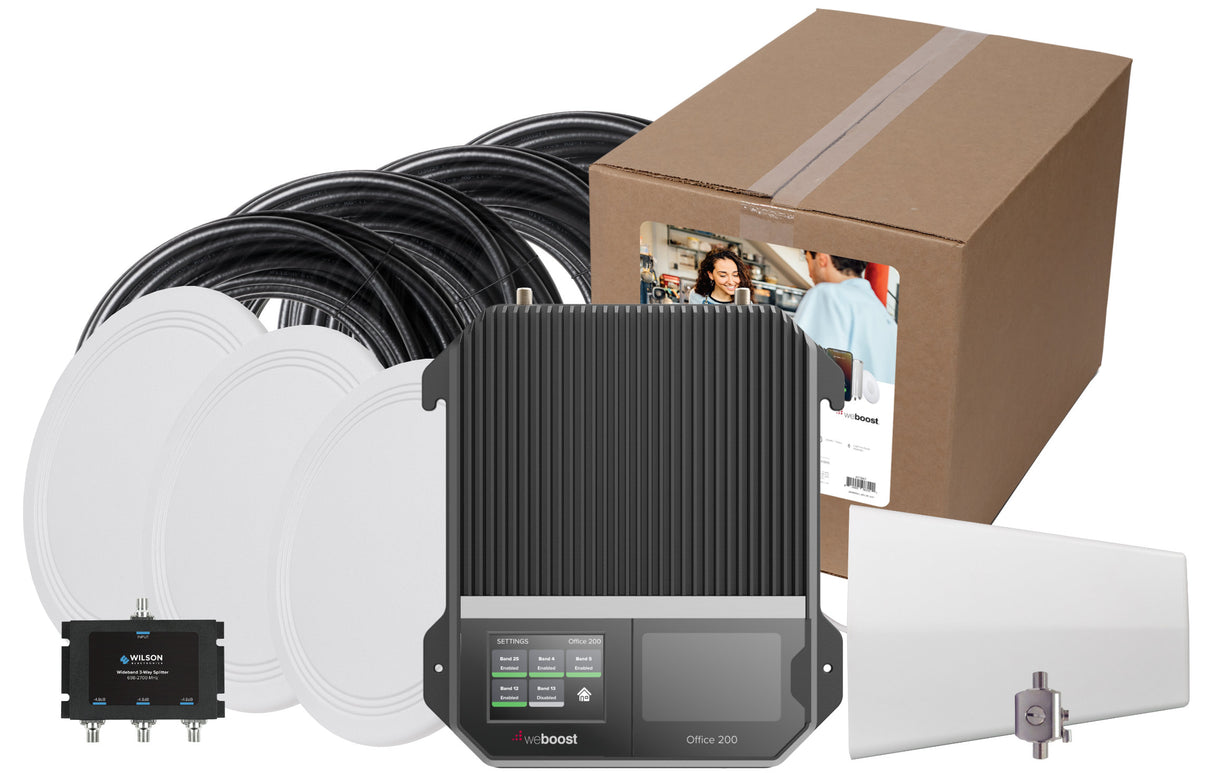

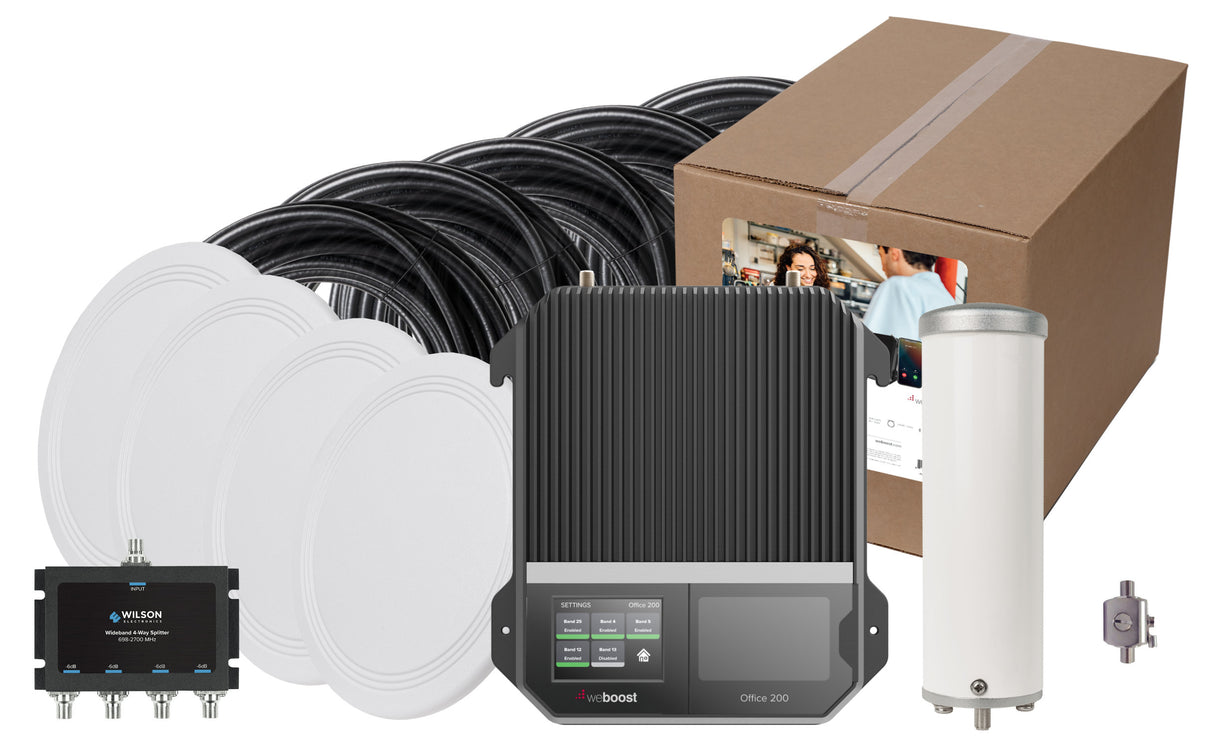

weBoost Office 200 Signal Booster (75 Ohm) | 471047

The weBoost 471047 Office 200 is our best professional signal booster and is the ideal choice when you need a powerful solution to provide boosted cell phone signal throughout your home or office.

In an ideal world, you should be able to be on the phone, walk into work, and never have to worry about dropping a call or missing something important, and there shouldn’t be a conference room or office that people avoid because they can’t get any cell signal.

The Office 200 will solve all of those problems for you and make concerns about bad cell signal a thing of the past.

And don't let the name fool you, the Office 200 is a great solution for boosting signal in your home as well. It’s the perfect solution for anyone who wants a commercial-grade signal booster solution with an extra year of warranty (for a total of 3 years), high-performance antenna options, and the FCC’s most powerful amplifier.

Every situation is different, so we've taken the standard Office 200 kit and added more antenna options for greater power, better coverage, and more flexibility. Read below to learn more about these antenna options and how to choose the right ones for you.

For the best possible performance, we can take the Office 200 amplifier and custom-design a system for your building to ensure that you get coverage in every corner of your business or home.

If you need the most powerful commercial-grade, multi-carrier, signal booster solution on the market to provide coverage throughout your entire home or business, then the weBoost 471047 Office 200 is the solution for you.

This is a 75 Ohm signal booster, so it comes with RG-11 cable and has F connectors on all of the components. If you’re looking for a signal booster system that has 400 series cable and N connectors on all of the components, then you’ll want to look at the 50 Ohm Office 200 signal booster.

Why the weBoost Office 200?

• Strongest gain (boosting power) allowed by the FCC, for the most coverage inside with a weak to moderate outside signal.

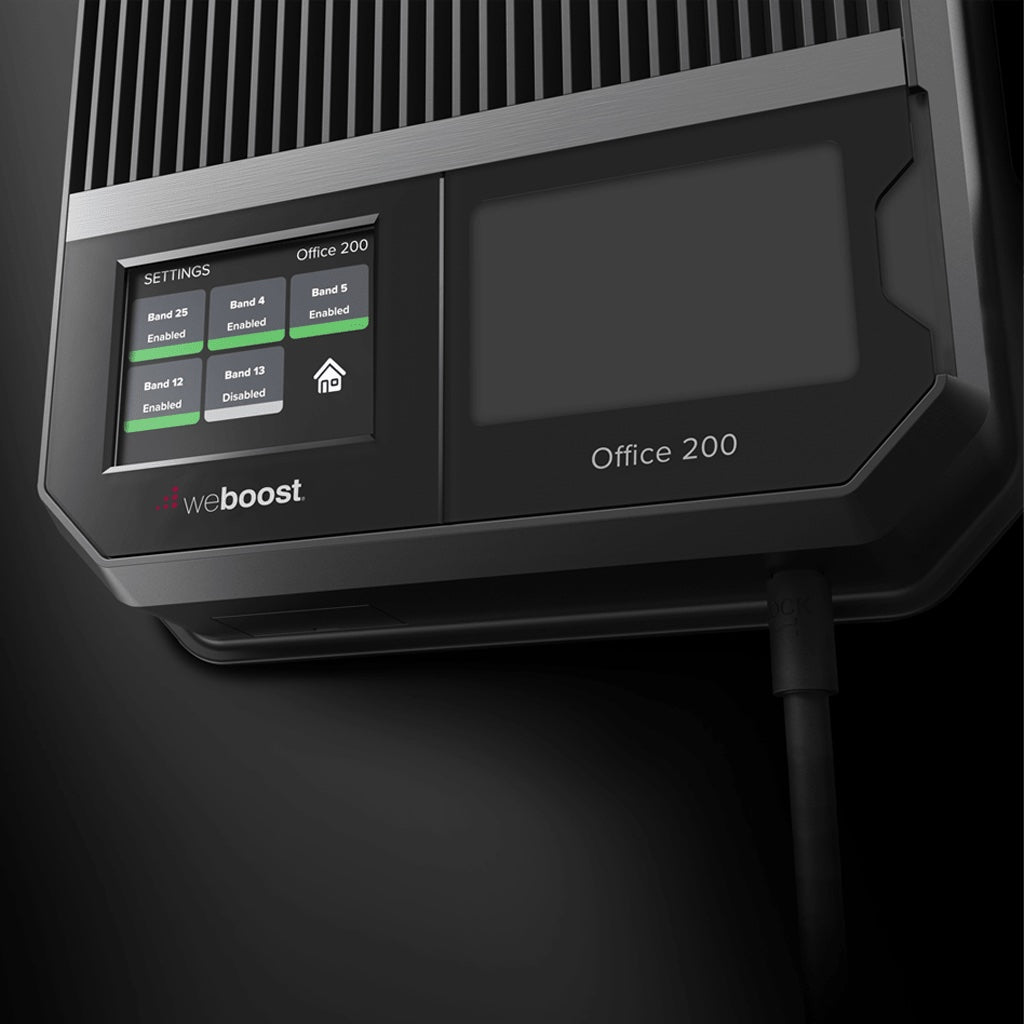

• LCD display allows you to see exactly what the amplifier is doing and fine tune your system accordingly.
• Increased uplink and downlink power for better performance in weak and strong signal environments.
• Works wirelessly. No physical connection to your phone required.
• Supports multiple phones and all carriers at the same time.
• Everything you need is included in the kit.

• Fewer dropped calls
• Faster Internet data speeds
• Better voice quality
• Texts that send quickly
• Longer battery life

Your purchase is covered by our 60-day money-back guarantee, so you can try it risk-free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.

Recommended For

The weBoost Office 200 is an ideal solution for all size homes and businesses that need better cell signal.

How it Works

The weBoost Office 200 system uses an outside antenna that's mounted at or above the roofline of the building that needs better signal. This antenna receives the best existing cell signal in your area and passes it over a cable to the Office 200 amplifier, which is located inside the building. The amplifier boosts the signal and passes it over another cable to the inside antenna(s), which broadcasts the boosted signal throughout the building.

The entire process also works in reverse, so you get a strong and reliable connection back to your carrier.

For more information on cable lengths and included accessories, see the Kit Includes section at the bottom of the page. Different cable lengths are available for custom installations. Please contact us if you need to customize this kit.

Estimated Inside Coverage

The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:

Please Note:

• With an Omni outdoor antenna and a weak outside signal, the coverage inside will significantly be less than projected. In addition, because Omni antennas receive signal in all directions, the chances of receiving interference and noise are higher, resulting in a worse quality signal, fewer bars on your phone, and degraded performance.
• With the LPDA antenna, the higher gain may provide you with a larger coverage area than projected if you have a weak outside signal.
• It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.

A Note About Bars on Your Phone

The bars on your phone take into account not just signal strength, but signal quality. The Office 200 can significantly increase the signal strength that your phone receives, but it’s very difficult to improve the signal quality. If you have a very poor quality outside signal, it’s possible that you’ll only get 1 or 2 bars inside with the booster, but the important thing is that you’ll be able to make calls and use data in places where you couldn’t before.

Will this Work for my Phone and Carrier?

The weBoost Office 200 has been designed to work with all cell phones and all carriers in the United States, Canada, and Mexico, as well as carriers from some other countries in Latin America, South America, and Australia.

Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.

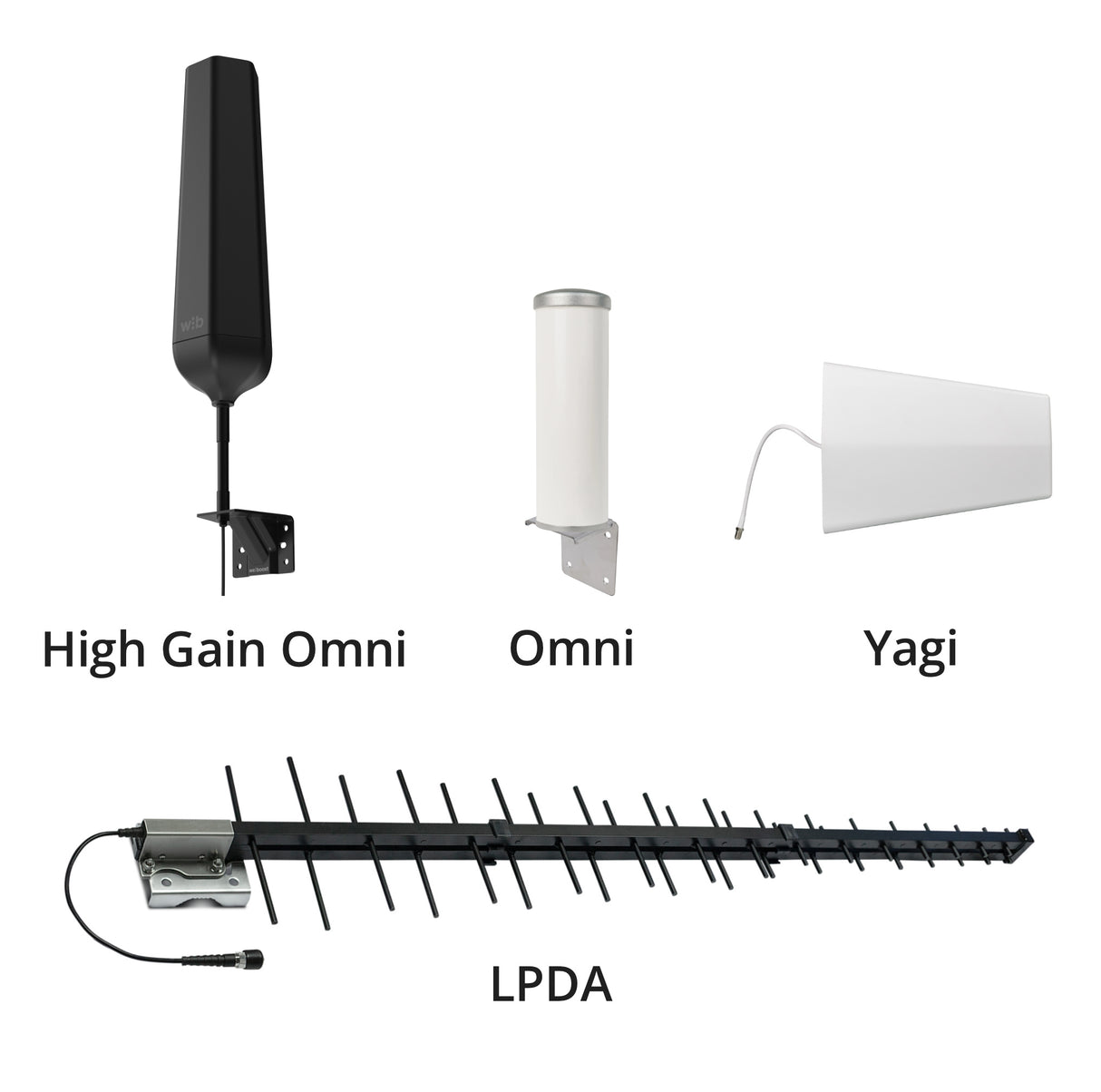

Outside Antenna Options

Different situations require different types of outside antennas. The weBoost Office 200 can be configured with one of three different outside antennas to accommodate pretty much any scenario. Read below to determine the best type of outside antenna for your situation.

The Office 200 kit can be configured with one of the following three types of outside antenna:

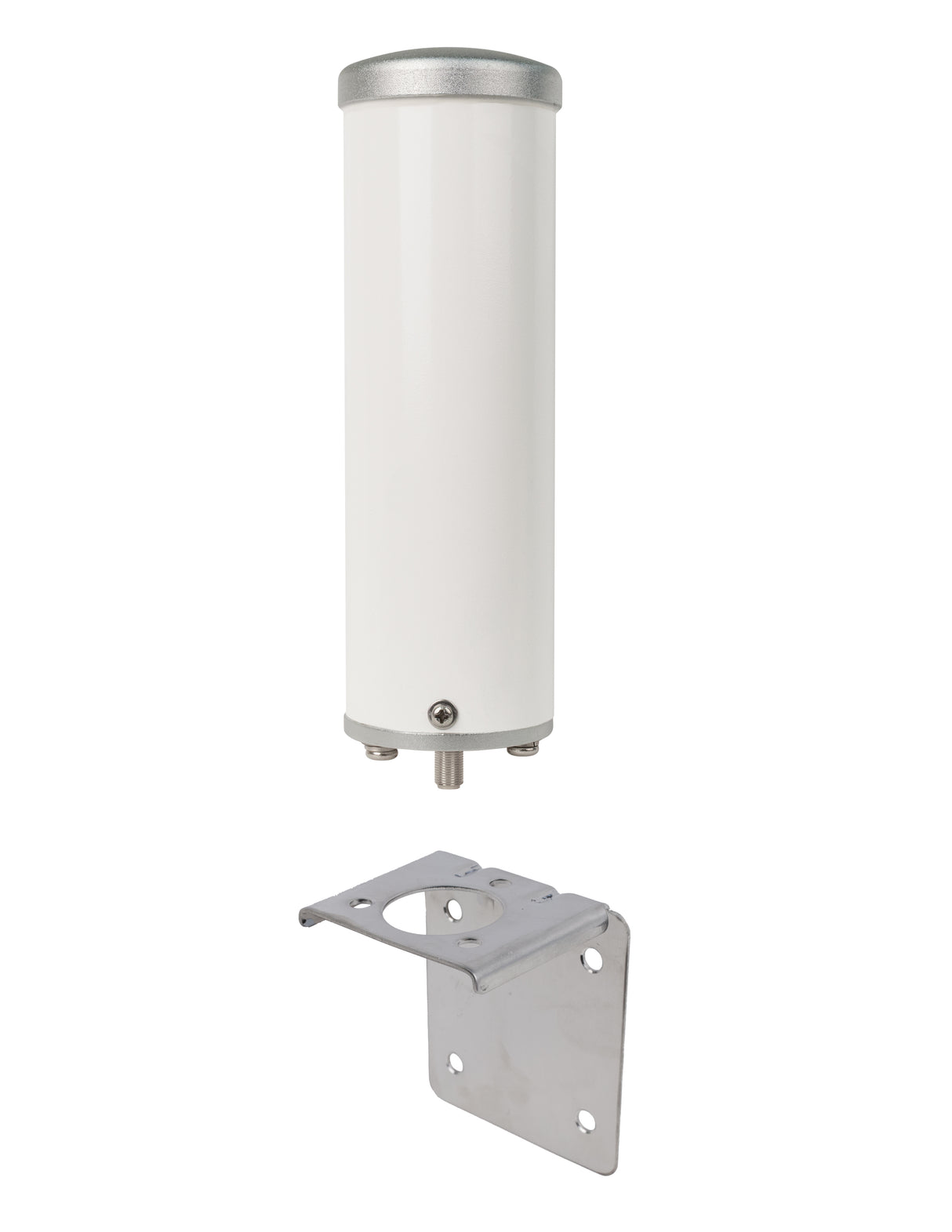

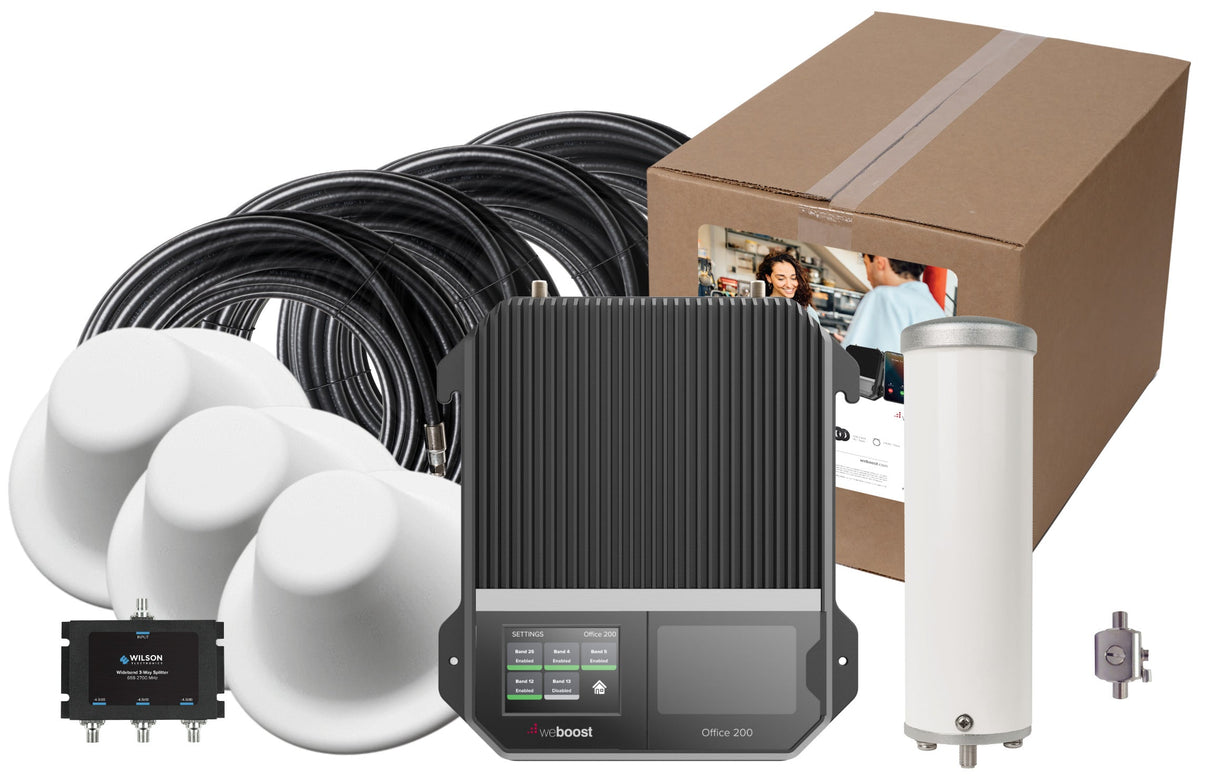

Omni Antenna

The Omni antenna is the default option with the Office 200 and is good for hilly or mountainous areas.

It is the weakest type of outside antenna, but can send and receive in all directions, so it does not require any aiming to function.

The Omni antenna has 4 dB of gain and will send and receive in all directions. Since it sends it all directions instead of just one, Omni antennas are not as powerful as directional antennas, so you'll generally get less inside coverage.

Yagi Directional Antenna

The Yagi directional antenna is the outdoor antenna option that can handle the majority of the situations that require a cell phone signal booster. It is directional, which means that it needs to be aimed towards the cell towers of the carrier(s) that you're trying to boost. Our guide on how to aim a directional antenna will walk you through the steps to do that.

The Yagi directional antenna has 10 dB of gain and can cover about 75 degrees of the horizon in one direction, so any carrier towers that fall within that area will be boosted. The Yagi antenna is not going to be a good option for scenarios where there are large hills, mountains, valleys or canyon walls that prevent line of sight to the cell tower. If this is your situation, then please see below for better options.

Since a directional antenna can only cover a portion of the horizon, you may only be able to cover the carrier(s) with towers in the direction that the Yagi antenna is pointing. The advantage is that because they are aimed, they're much more powerful so you'll get more coverage area inside of the building with a directional antenna.

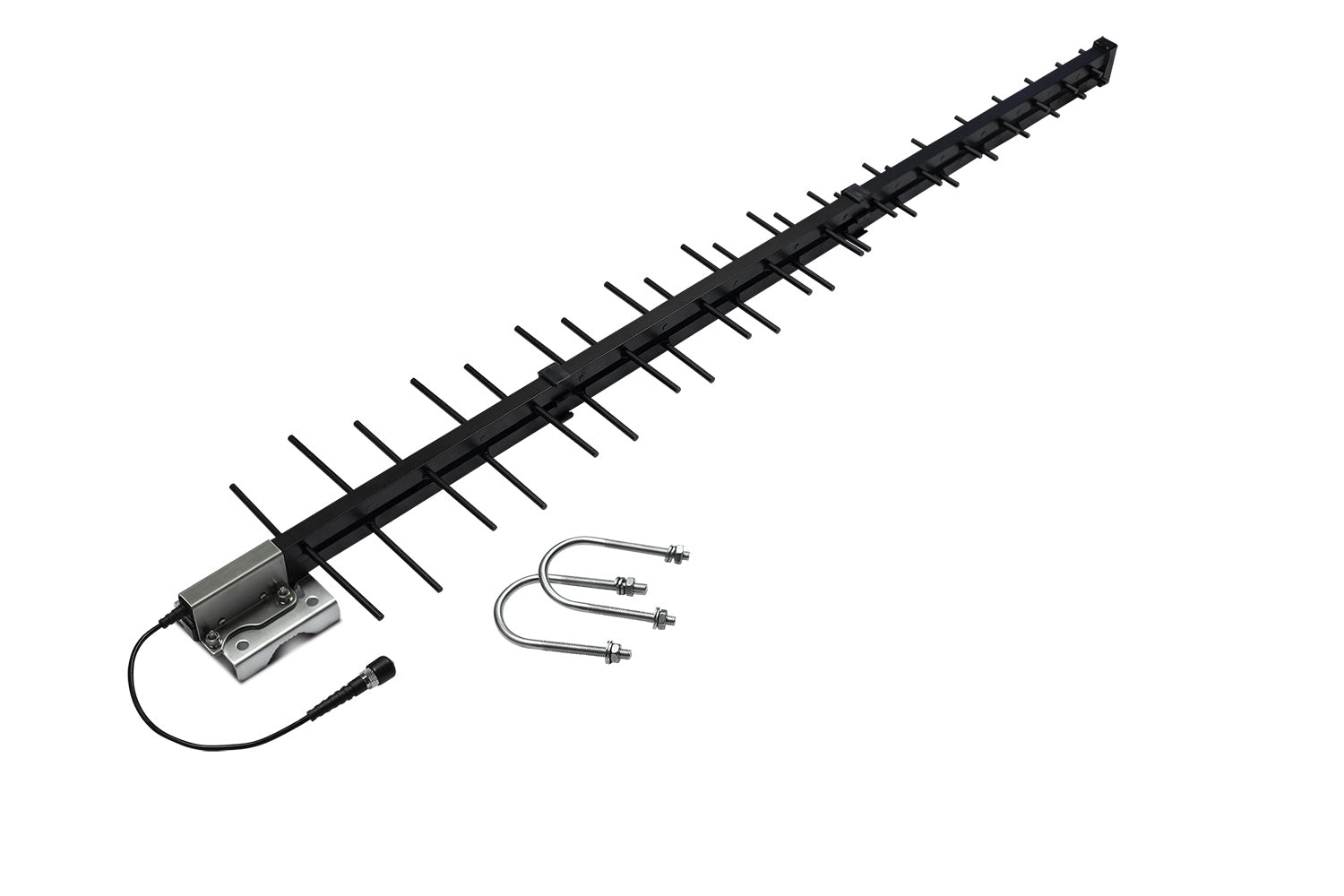

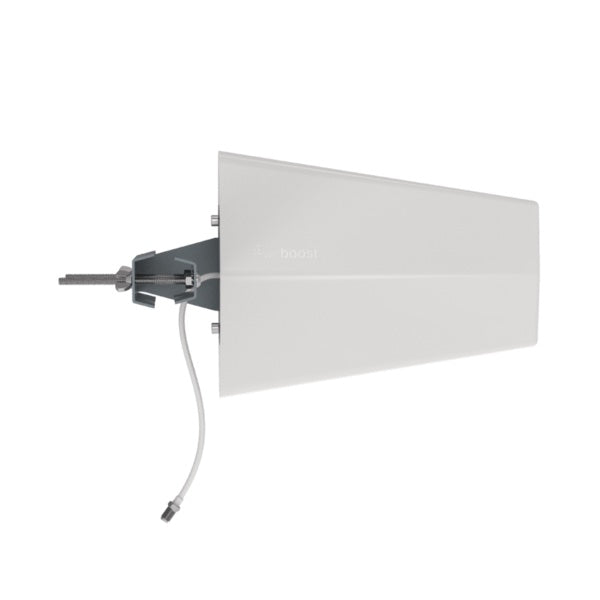

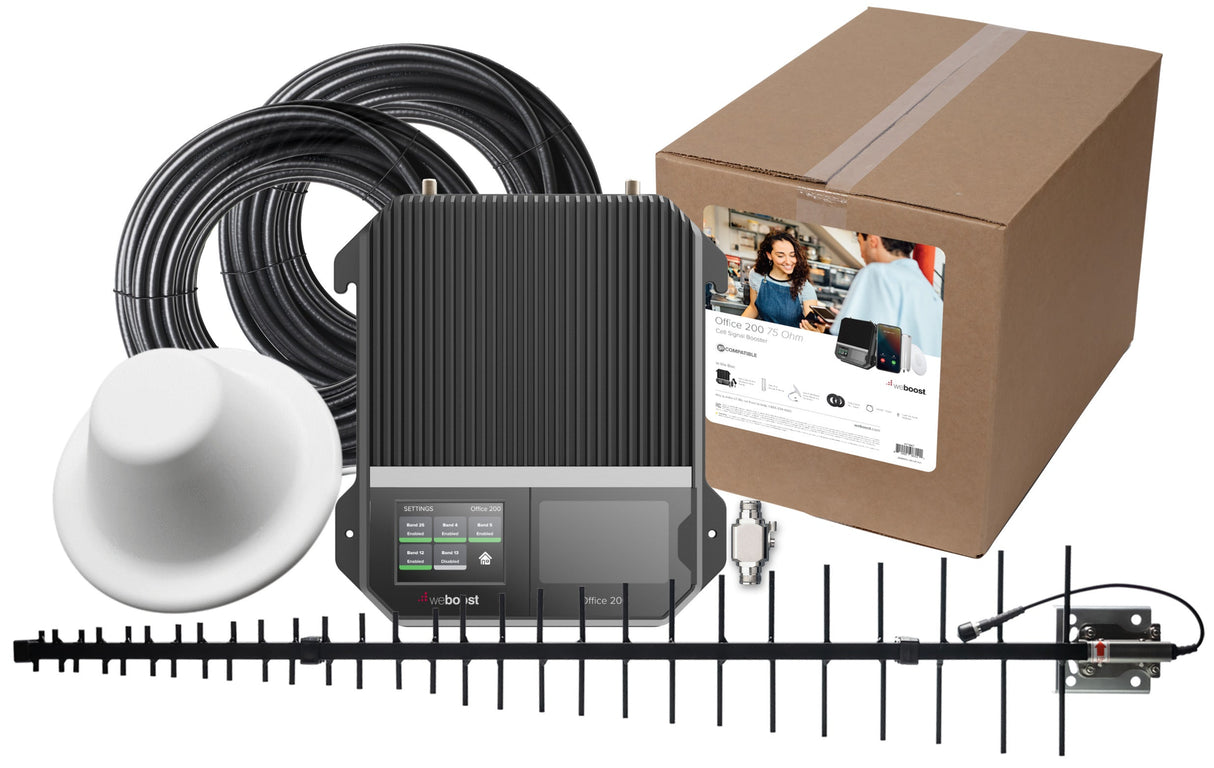

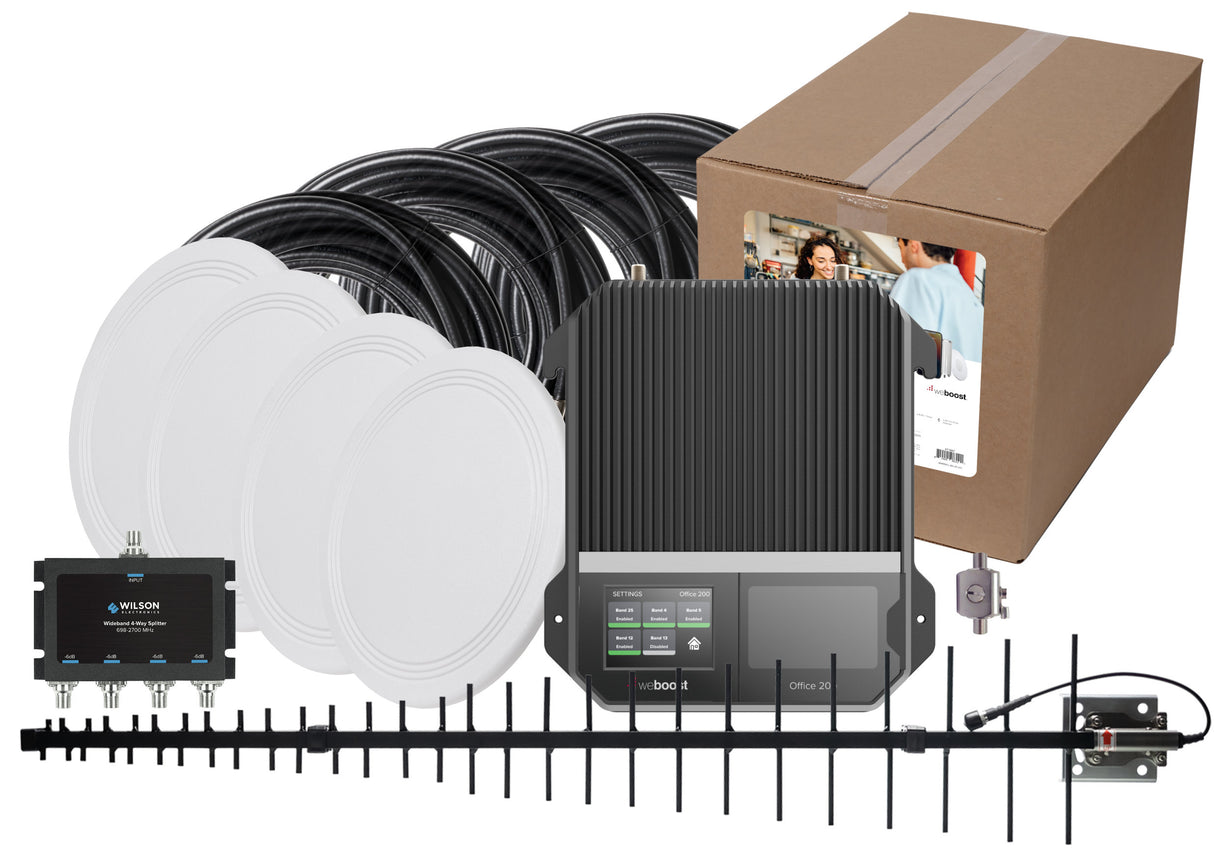

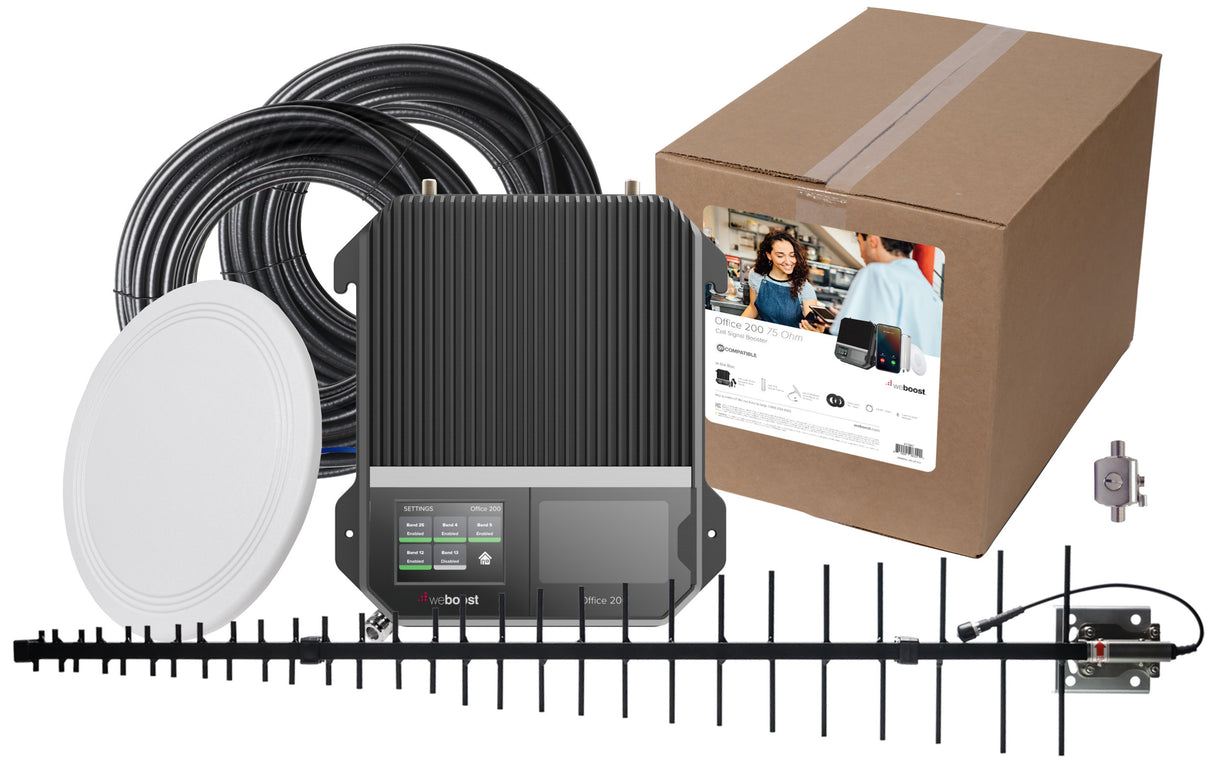

High Gain LPDA Antenna

The Wilson High Gain Wide Band LPDA Antenna is one of the most powerful outside antennas that we offer. It's ideal for situations where you have a very weak existing outside signal and need the maximum antenna gain or for when you have a poor quality signal environment (low RSRQ and SINR) and need pinpoint accuracy to target the best nearby cell tower and improve those quality metrics.

The LPDA Antenna provides between 11 to 13 dBi of gain for all of the frequency bands currently used by the major cell carriers. It is about 3.5 feet (44 inches) long, so it requires a very sturdy mast as a mounting point.

Please Note: Due to its high directionality and narrow beamwidth, you must have a direct line of sight to the cell tower that you're targeting for the LPDA antenna to work properly. It will not work well in areas where you're getting signal bounce or do not have a direct line of sight to the tower.

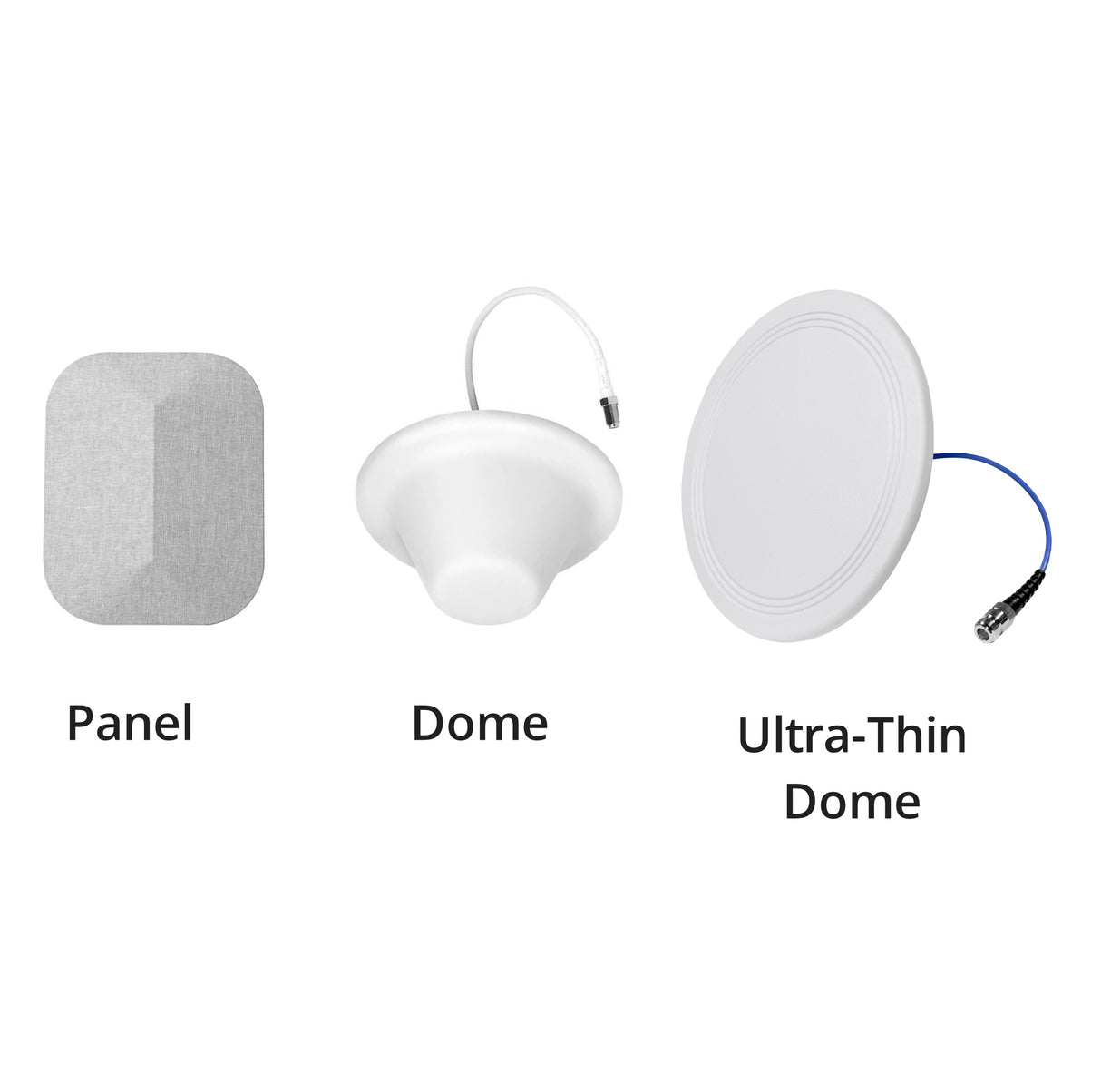

Inside Antenna Options

The right number of inside antennas depends on how large the space is and how many walls or other obstacles are in the space. In general, we recommend one antenna for every 750 to 1,500 sq ft in a normal home and every 1,500 to 2,500 sq ft in more open spaces like offices with cubicles.

The Wilson Office 200 kit is available with three types of inside antennas:

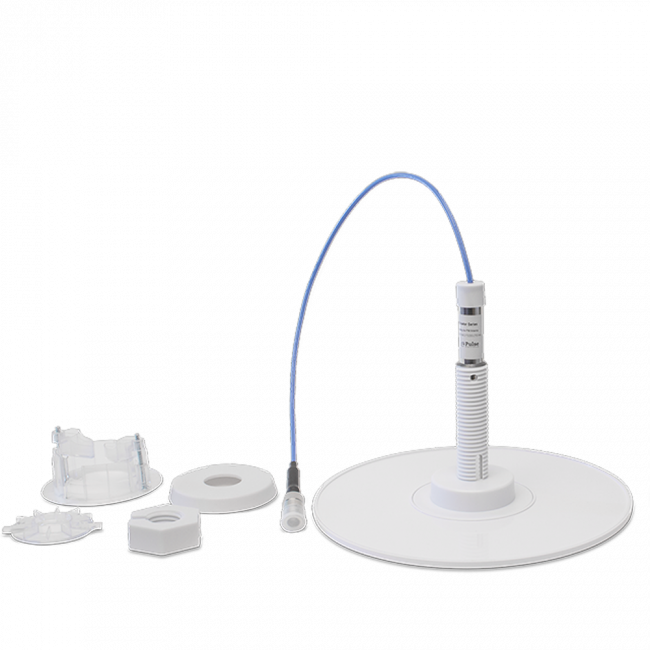

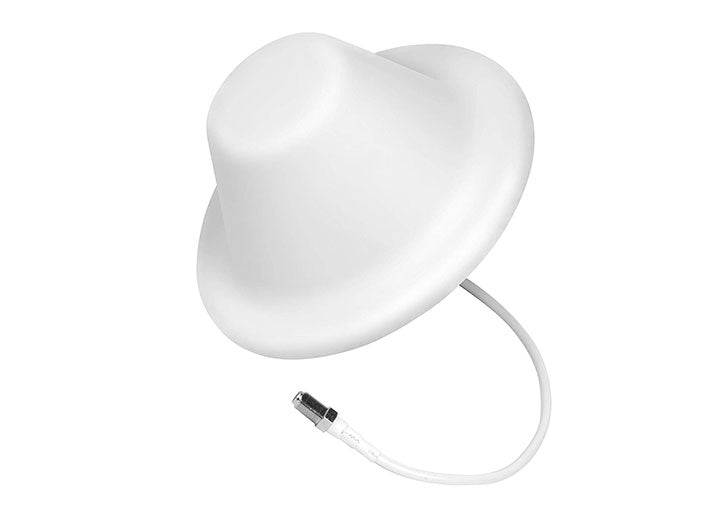

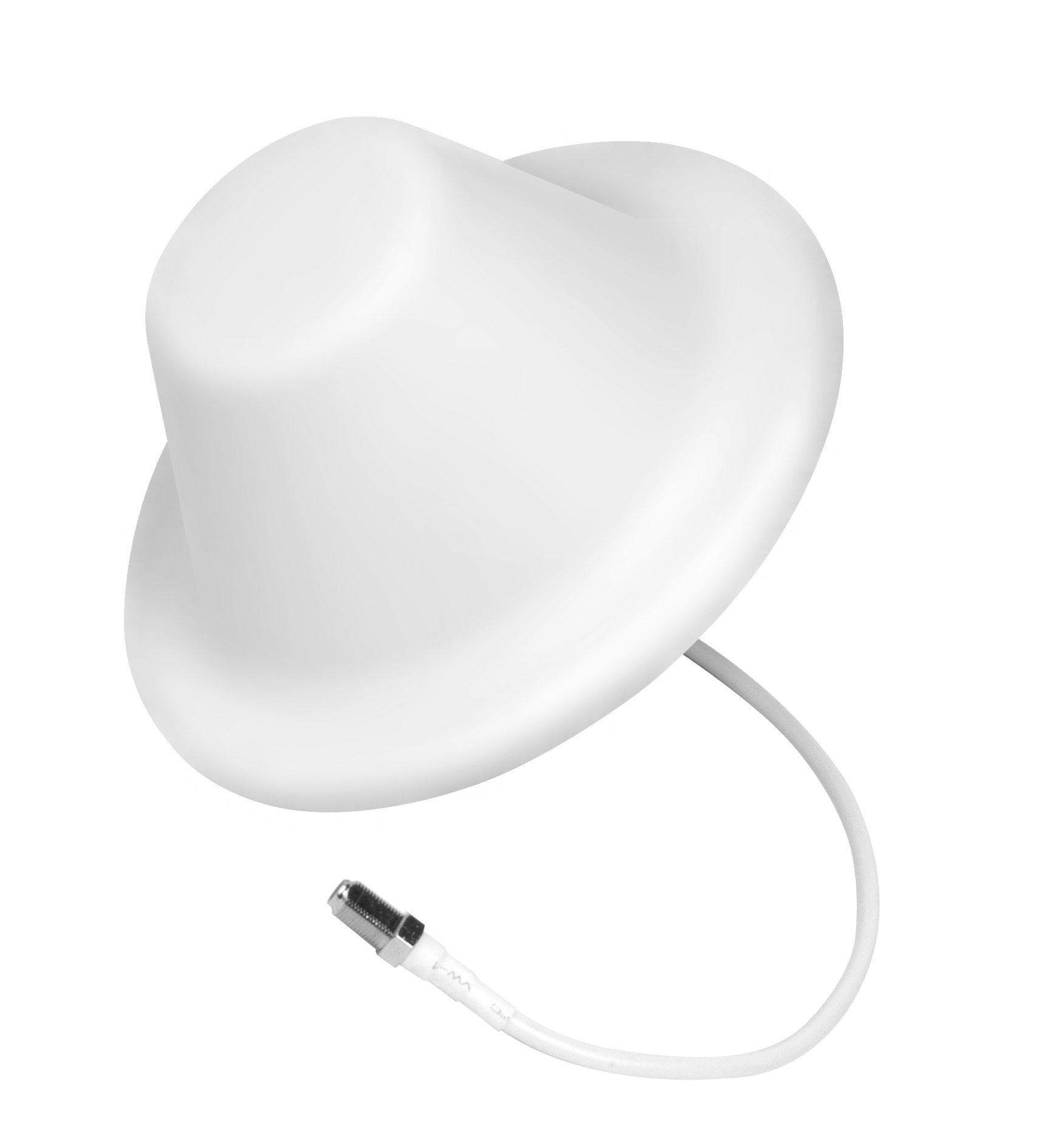

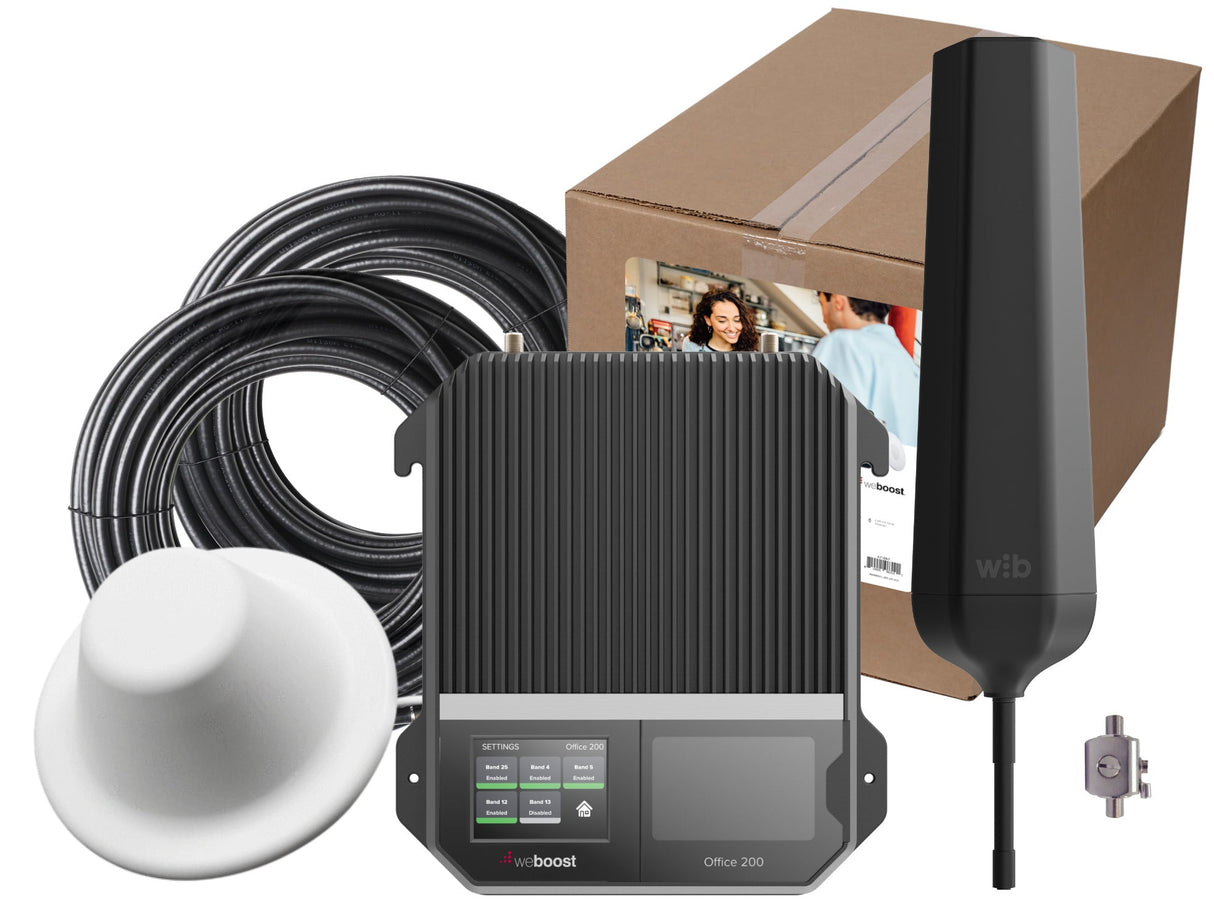

Standard Dome Antenna

A standard dome antenna mounts to the ceiling and covers in all directions around the antenna. A dome antenna must be installed horizontally, it can not be mounted vertically to a wall. When using a dome antenna, you must be able to run cables on the backside of the ceiling, so it works best below an attic or in commercial spaces with ceiling tiles.

Standard domes work well in single story homes and offices where you have access to the backside of the ceiling to run cables and make connections.

The standard dome has an average gain of 2 dBi on the low frequencies and 5 dBi on the high frequencies.

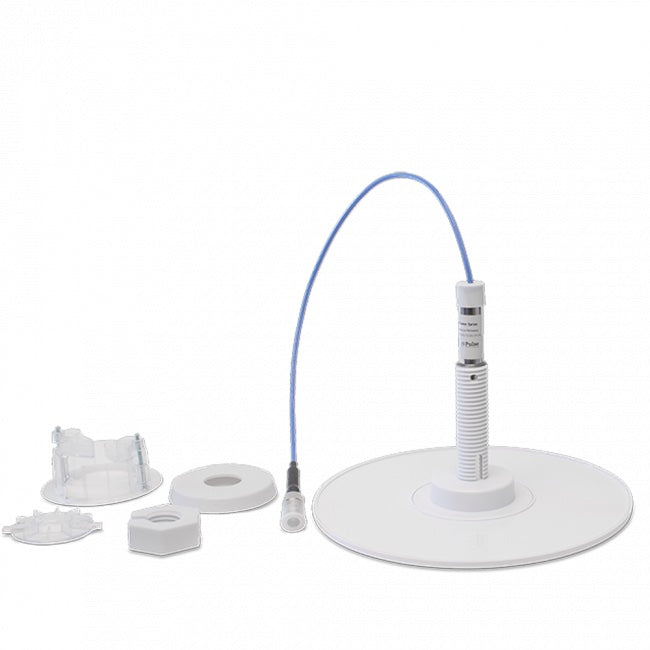

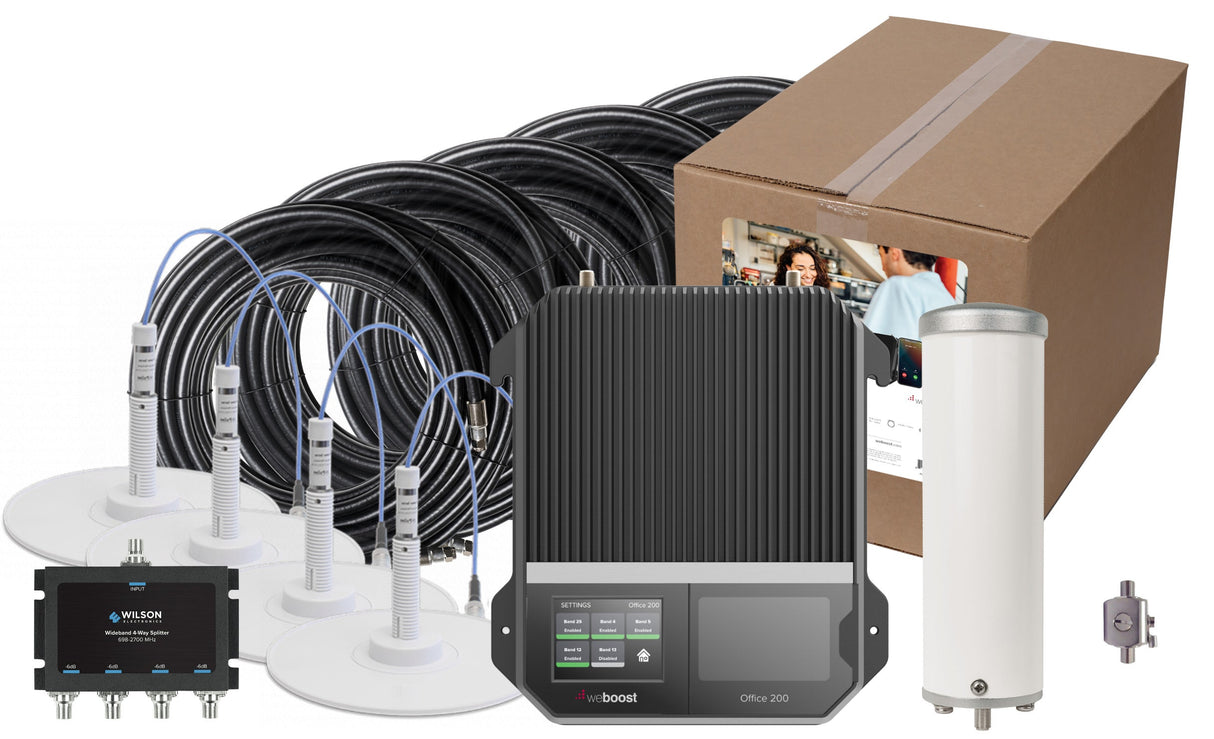

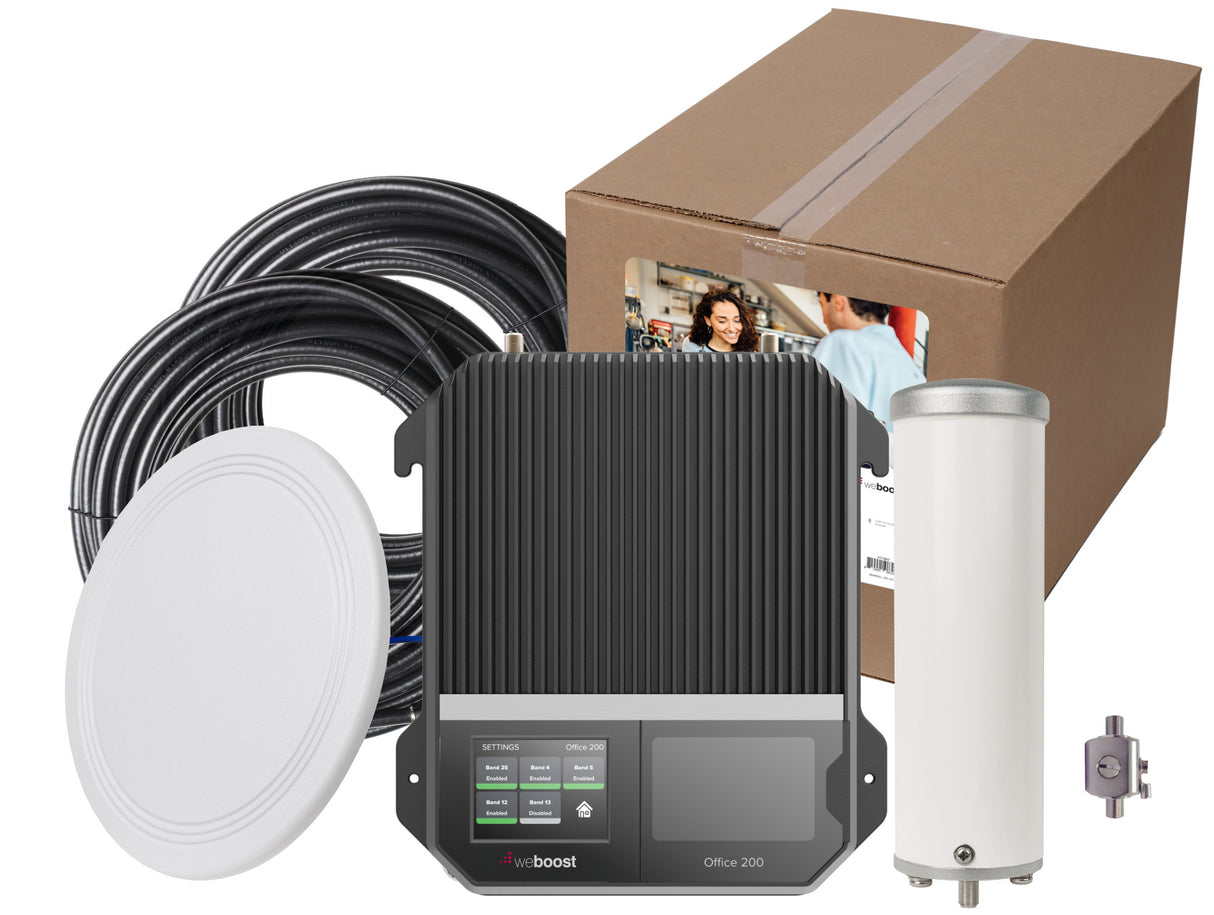

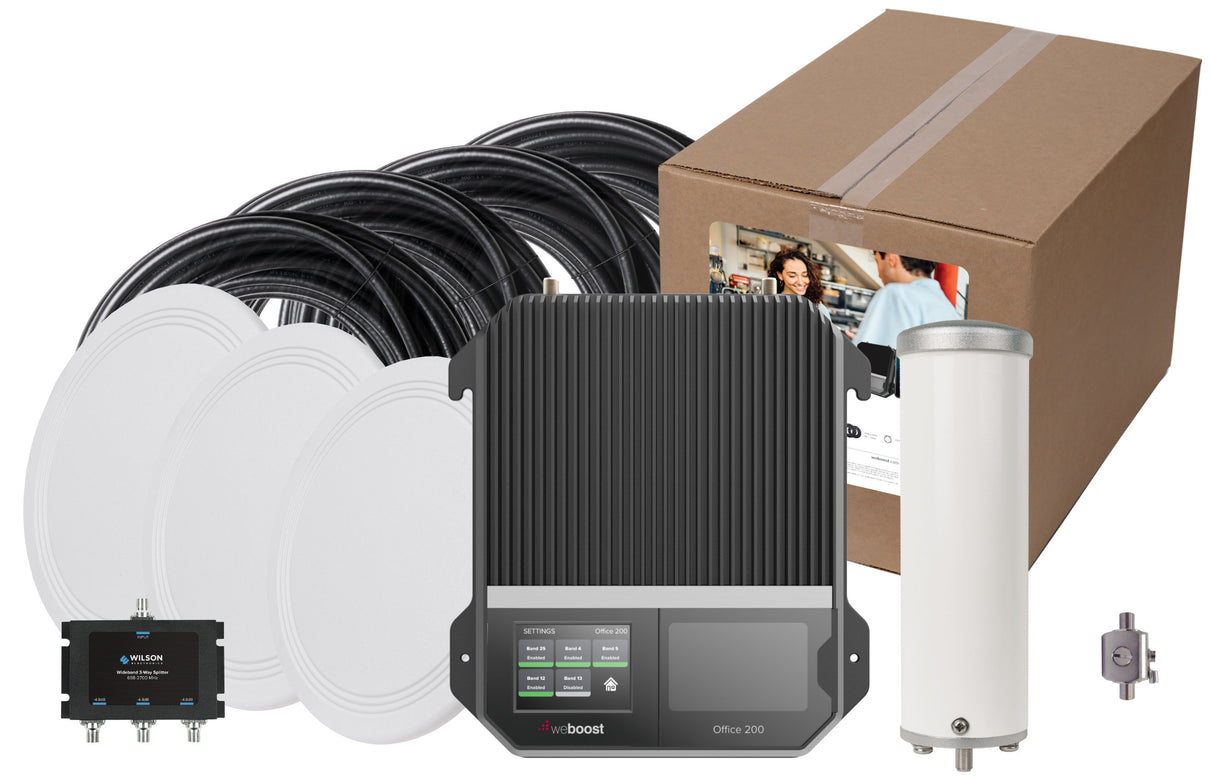

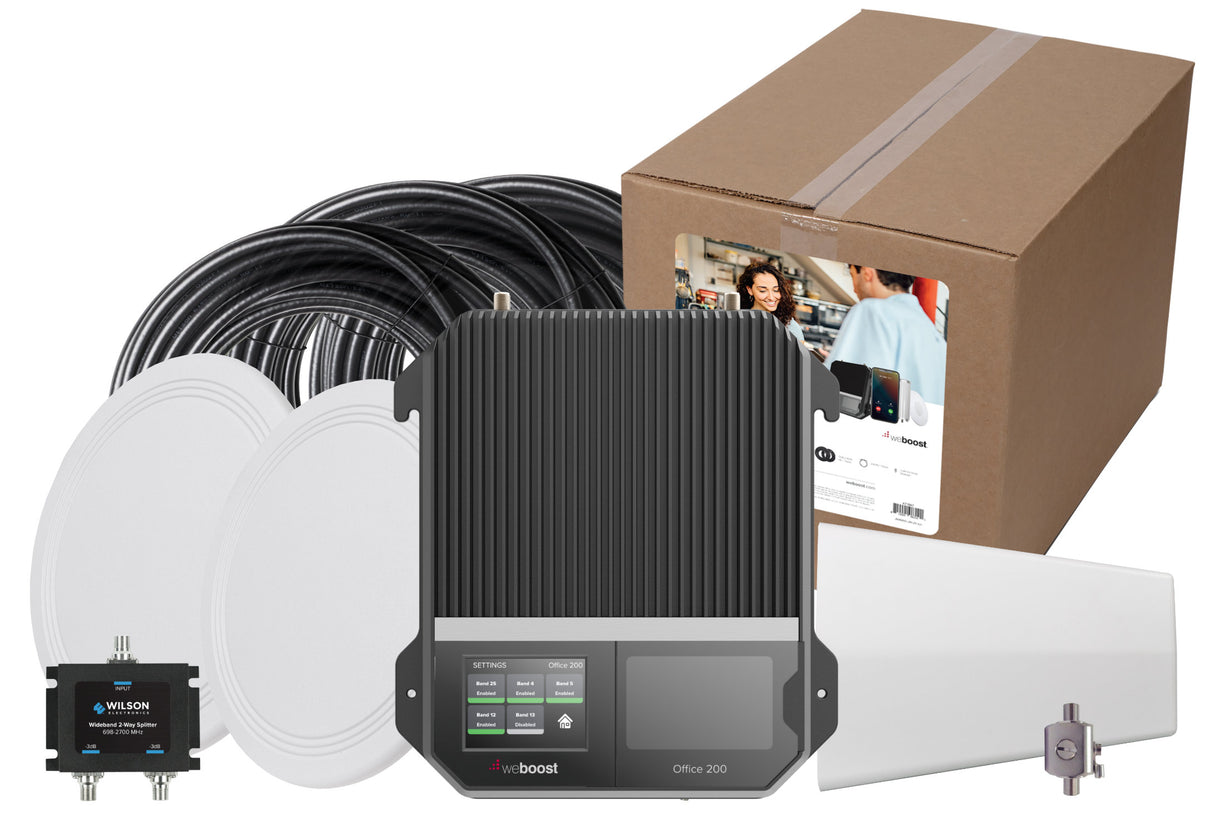

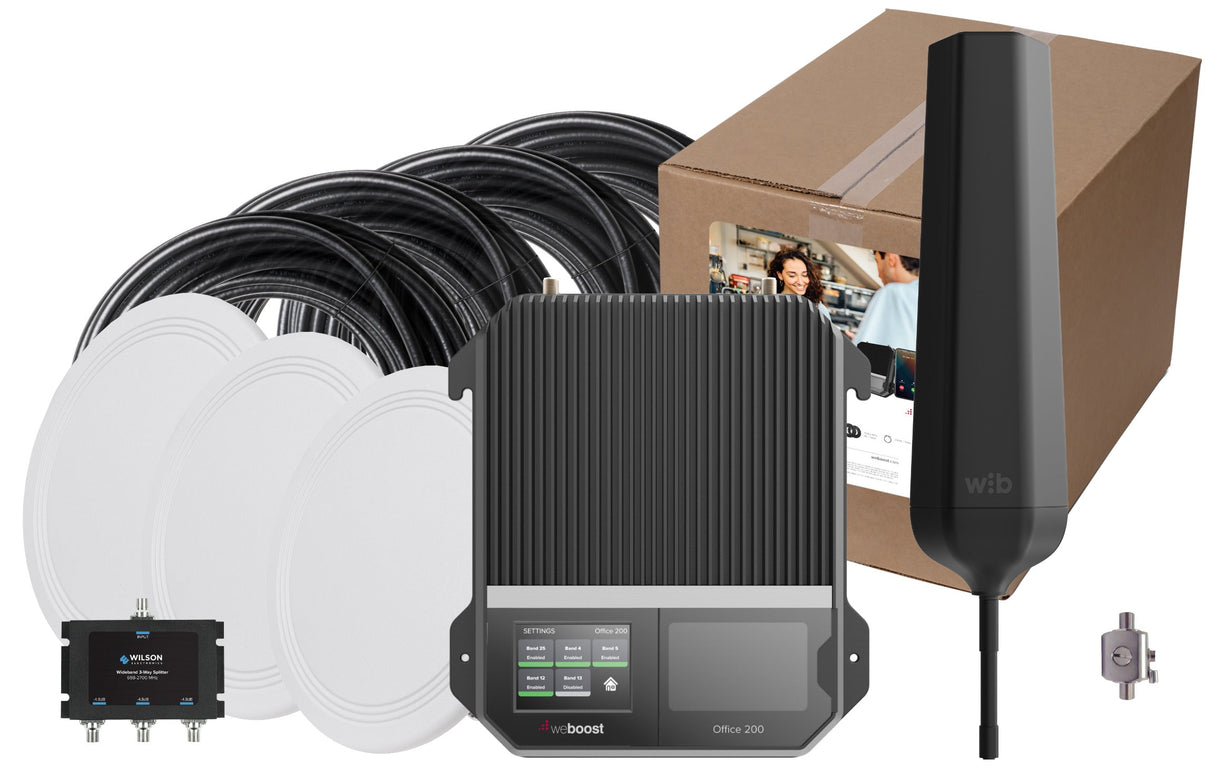

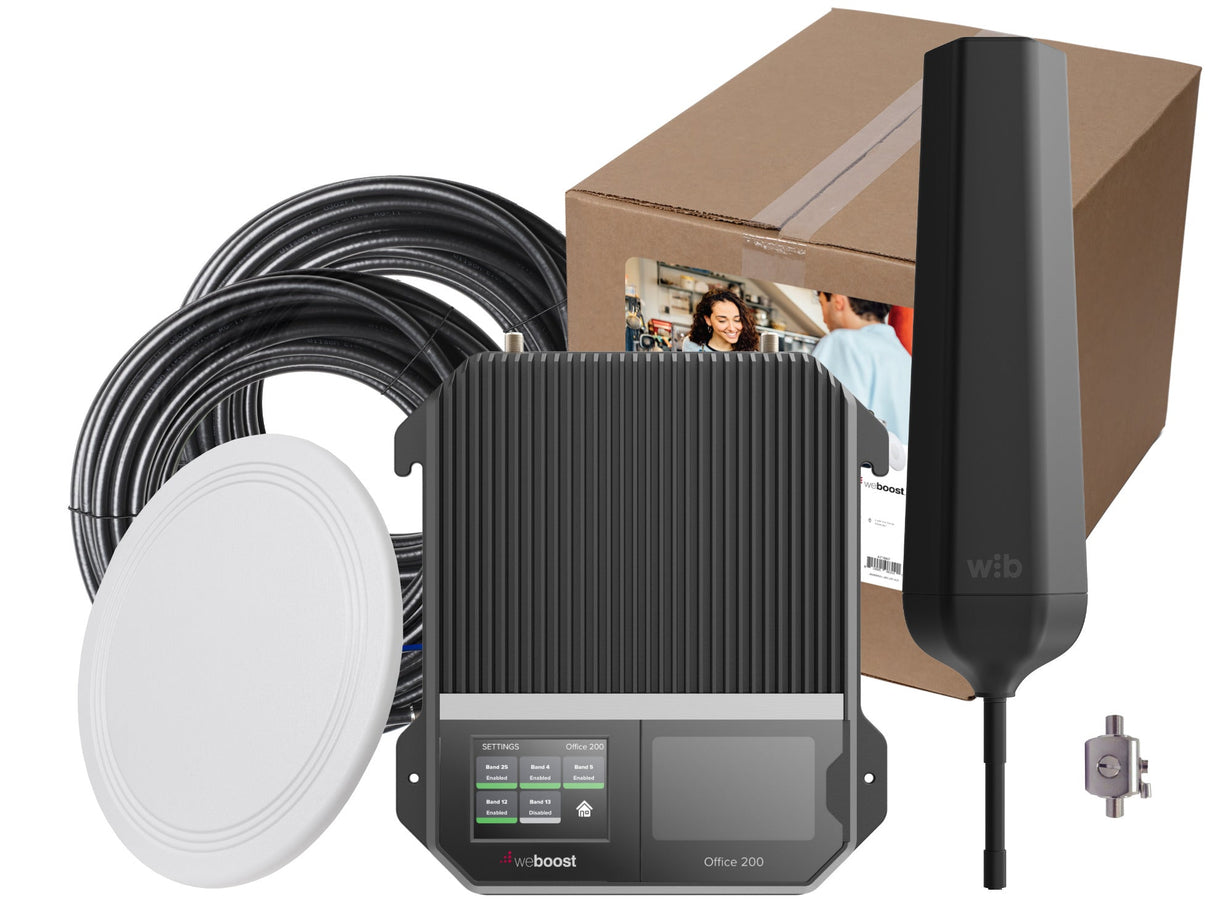

Ultra Thin Dome Antenna

The ultra thin dome antenna is a very low profile version of the standard dome antenna. The ultra thin dome mounts to the ceiling and covers in all directions around the antenna. A dome antenna must be installed horizontally and cannot be mounted vertically to a wall. When using a dome antenna, you must be able to run cables on the backside of the ceiling, so it works best below an attic or in commercial spaces with ceiling tiles.

Ultra thin domes work well in situations where aesthetics are important but they also are more powerful to give you a larger coverage area. They are significantly less noticeable than the standard dome once installed.

The ultra thin dome has an average gain of 4 dBi on the low frequencies and 6 dBi on the high frequencies.

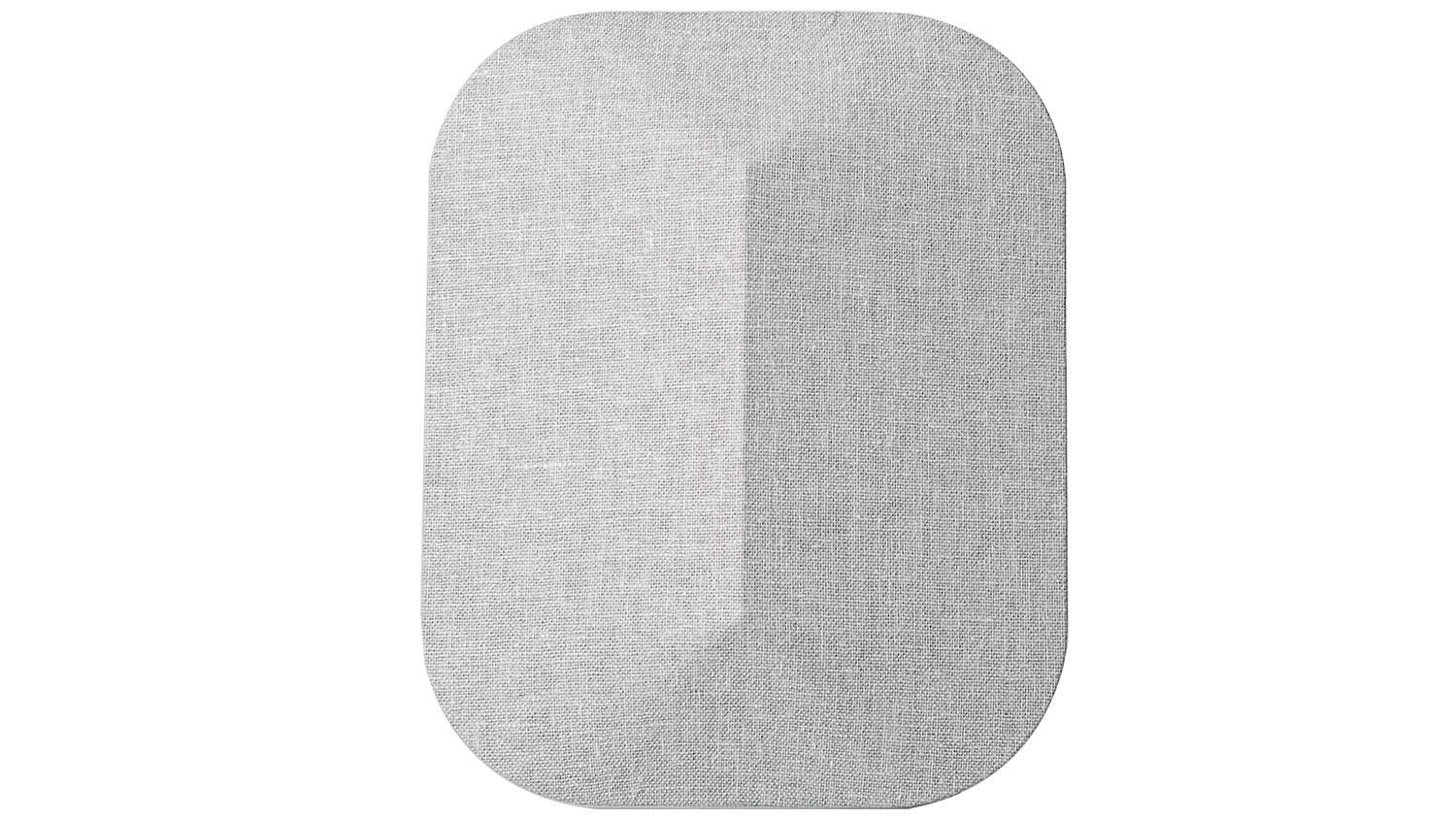

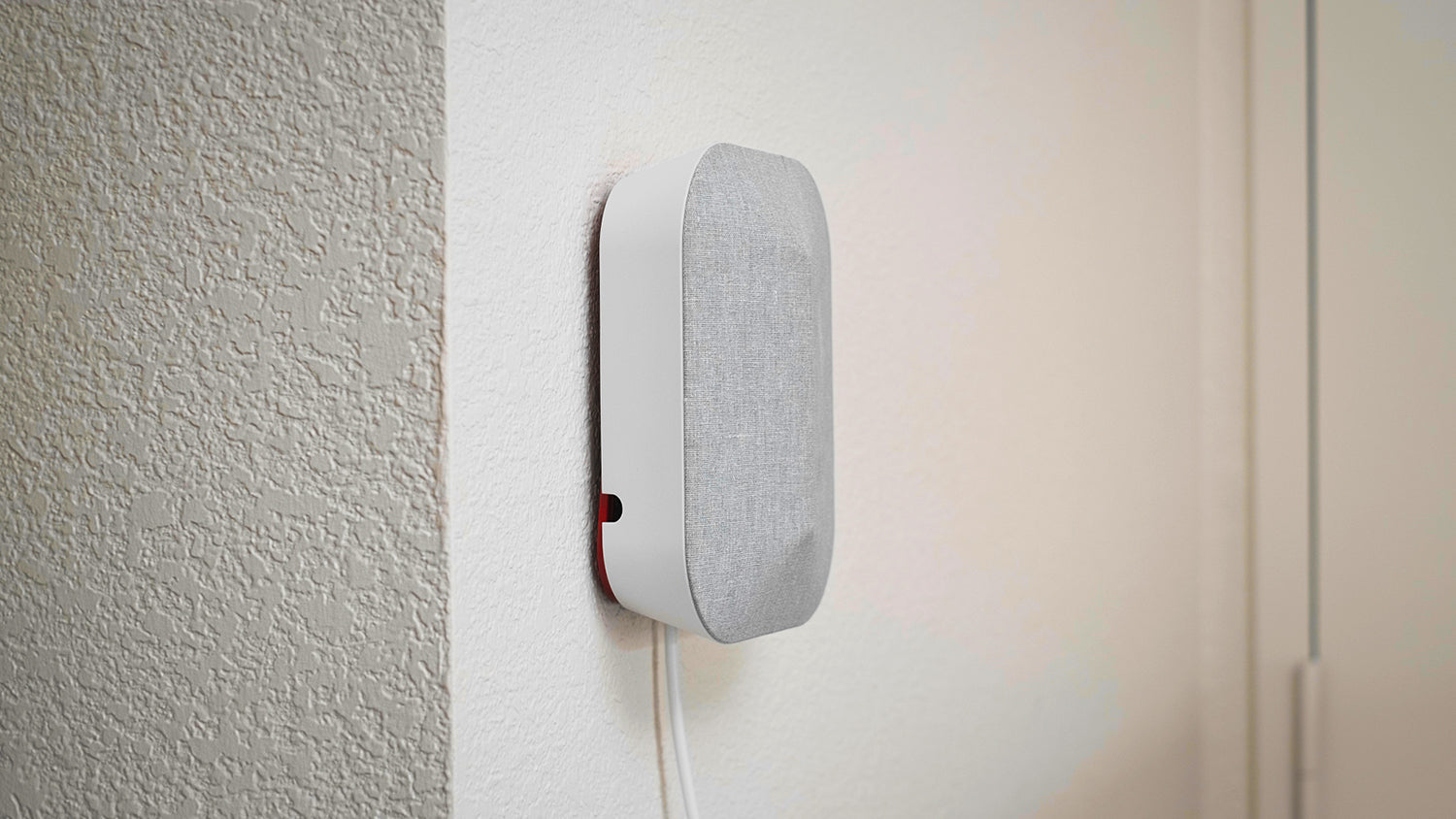

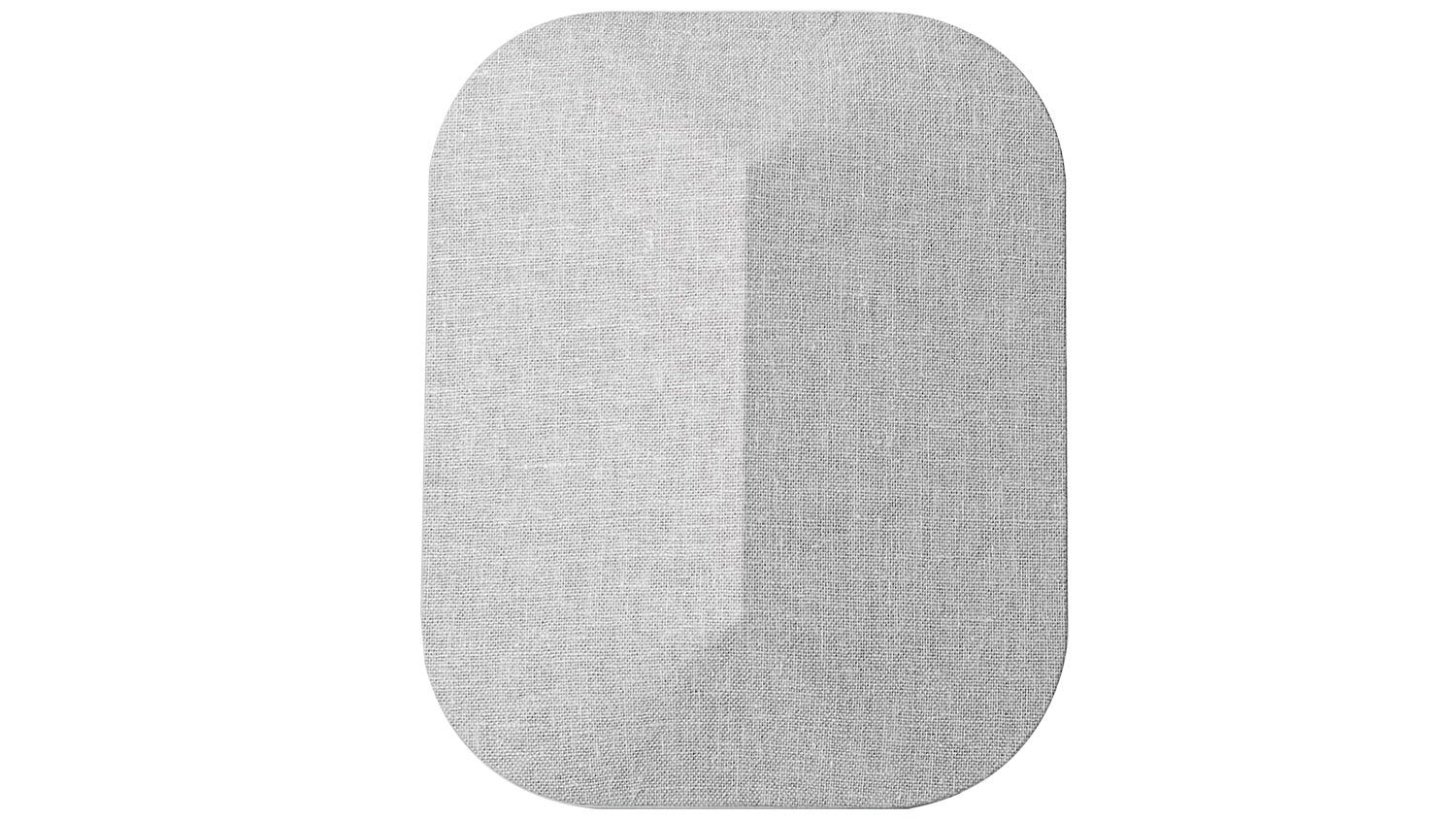

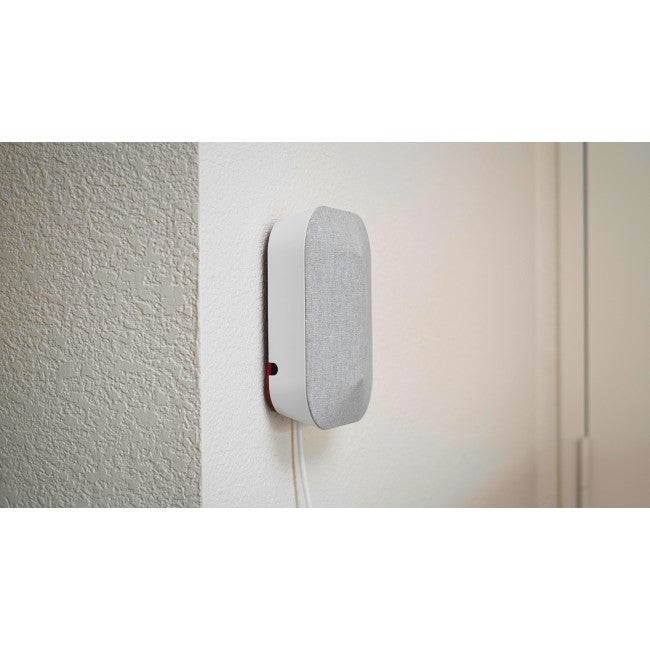

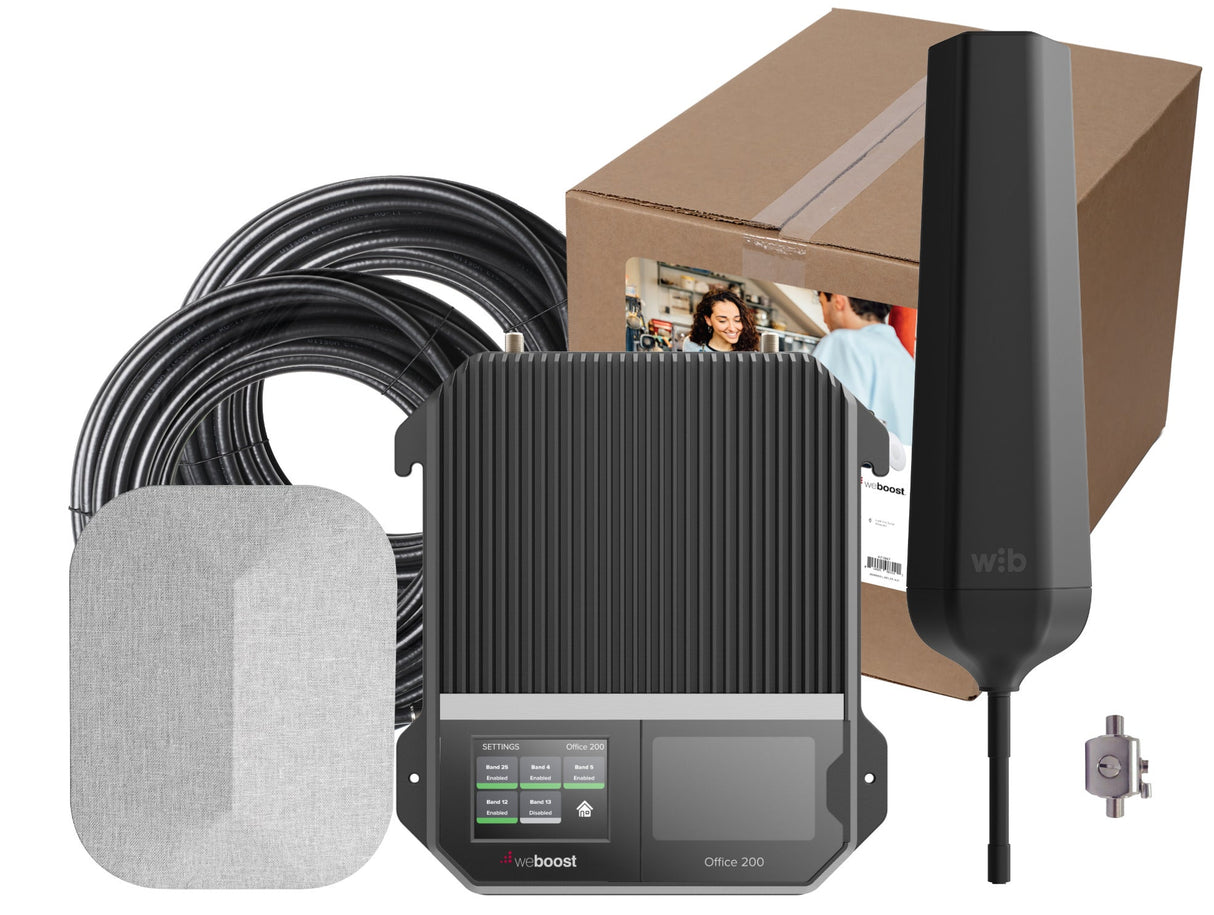

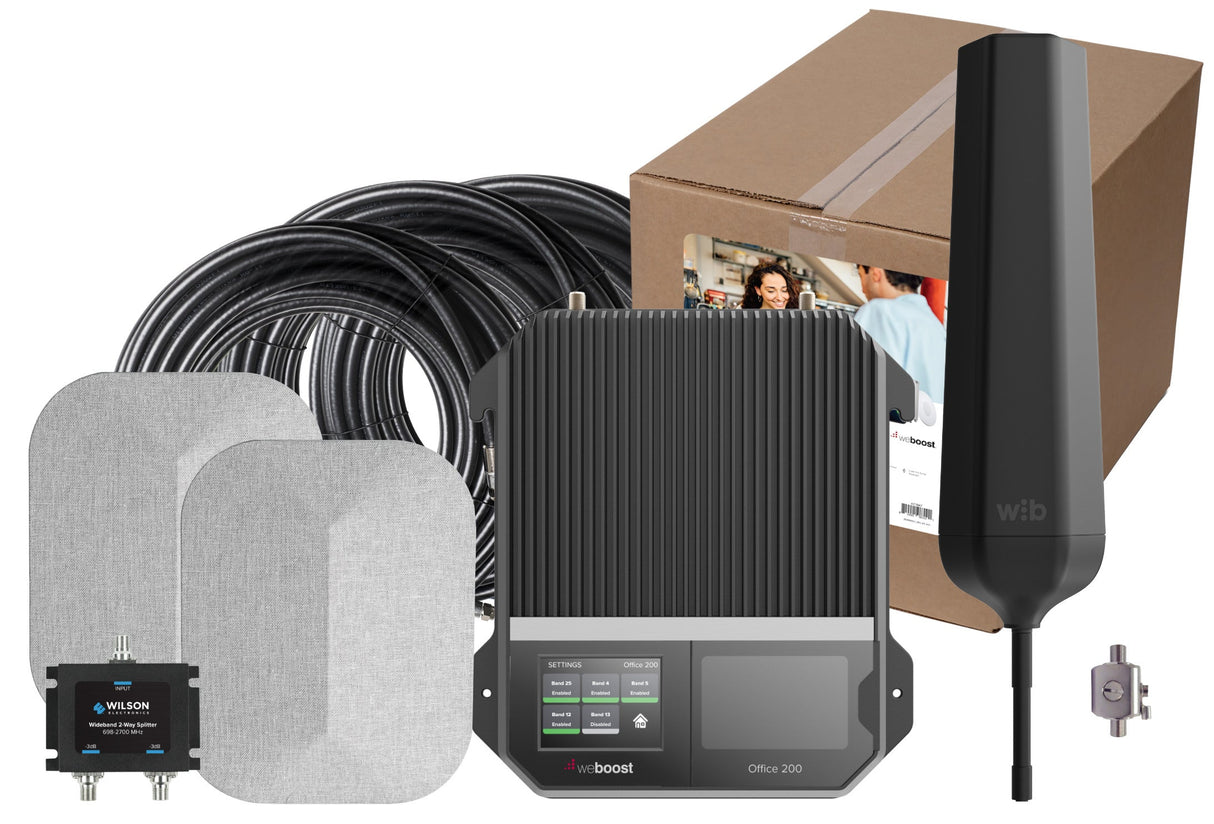

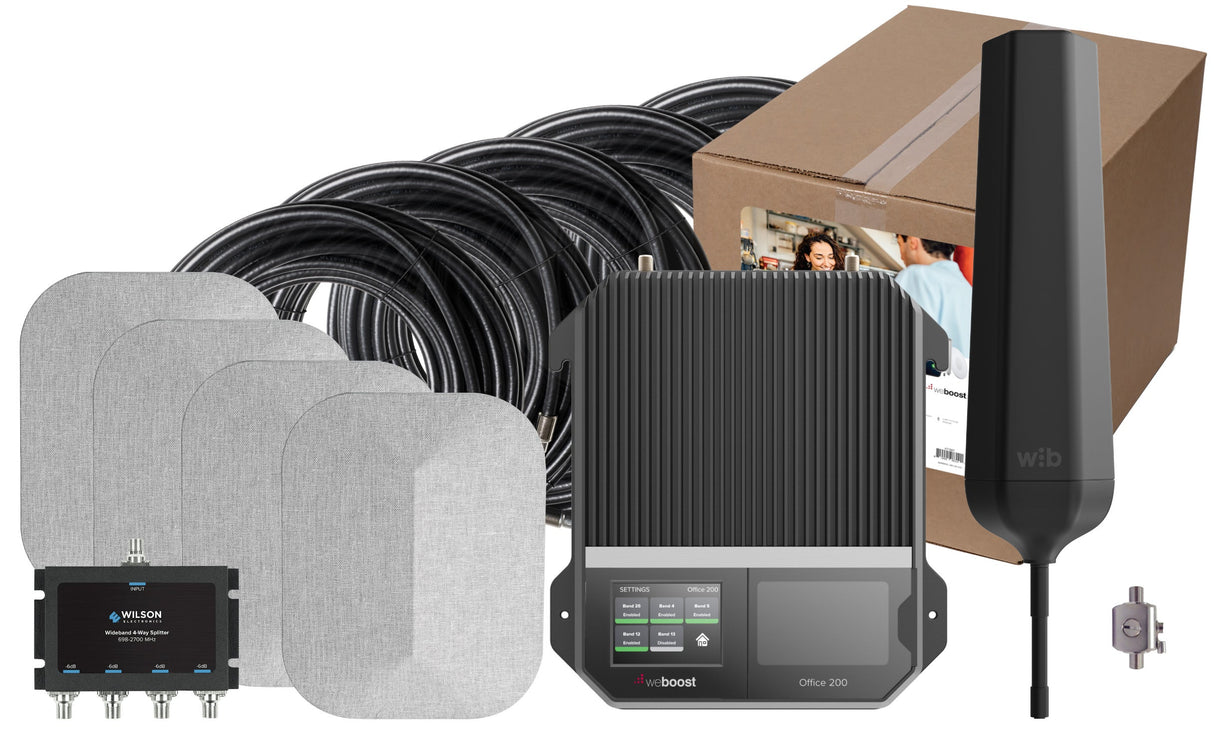

Panel Antenna

Panel antennas are a type of directional indoor antenna. They can be mounted to a wall or to a ceiling. The signal comes out the front of the antenna so it must be mounted in a place where it is aimed at the area where you need coverage. A short pigtail cable comes out of the bottom of the antenna, so you do not need access to behind a wall or ceiling to install a panel antenna.

In multi-story homes, panel antennas can be located in the attic pointing down to cover the floors below without any part of the system being visible.

The panel antenna has an average gain of 7 dBi on the low frequencies and 10 dBi on the high frequencies. This makes it more powerful than the dome antennas, but that is because it is a directional antenna, so it sends all of its signal in one direction instead of all directions.

Need Help?

Deciding on the right antenna style and number can be difficult. If you’re not sure what’s best for your situation, give us a call and one of our signal booster experts would be happy to recommend a solution for you.

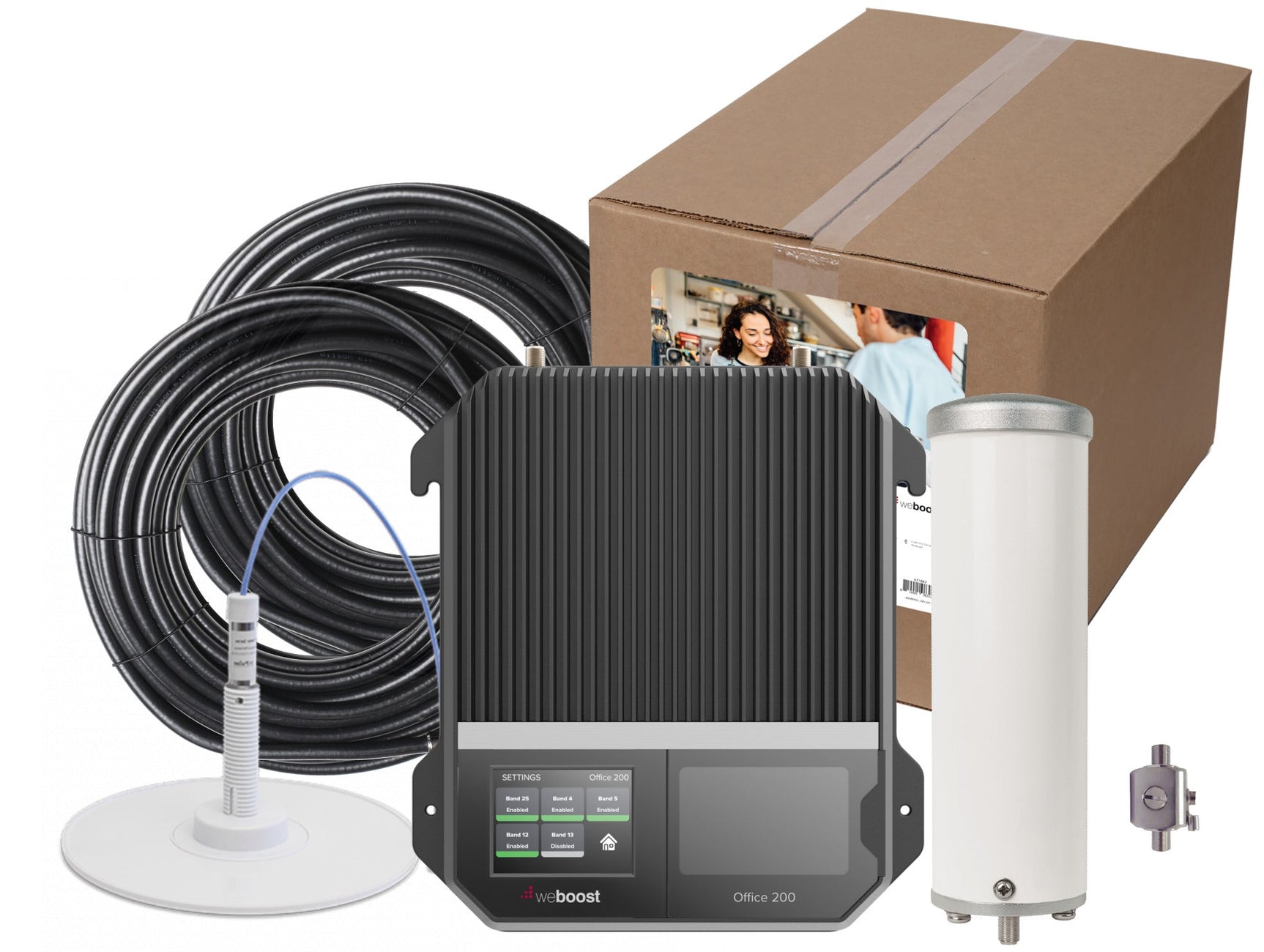

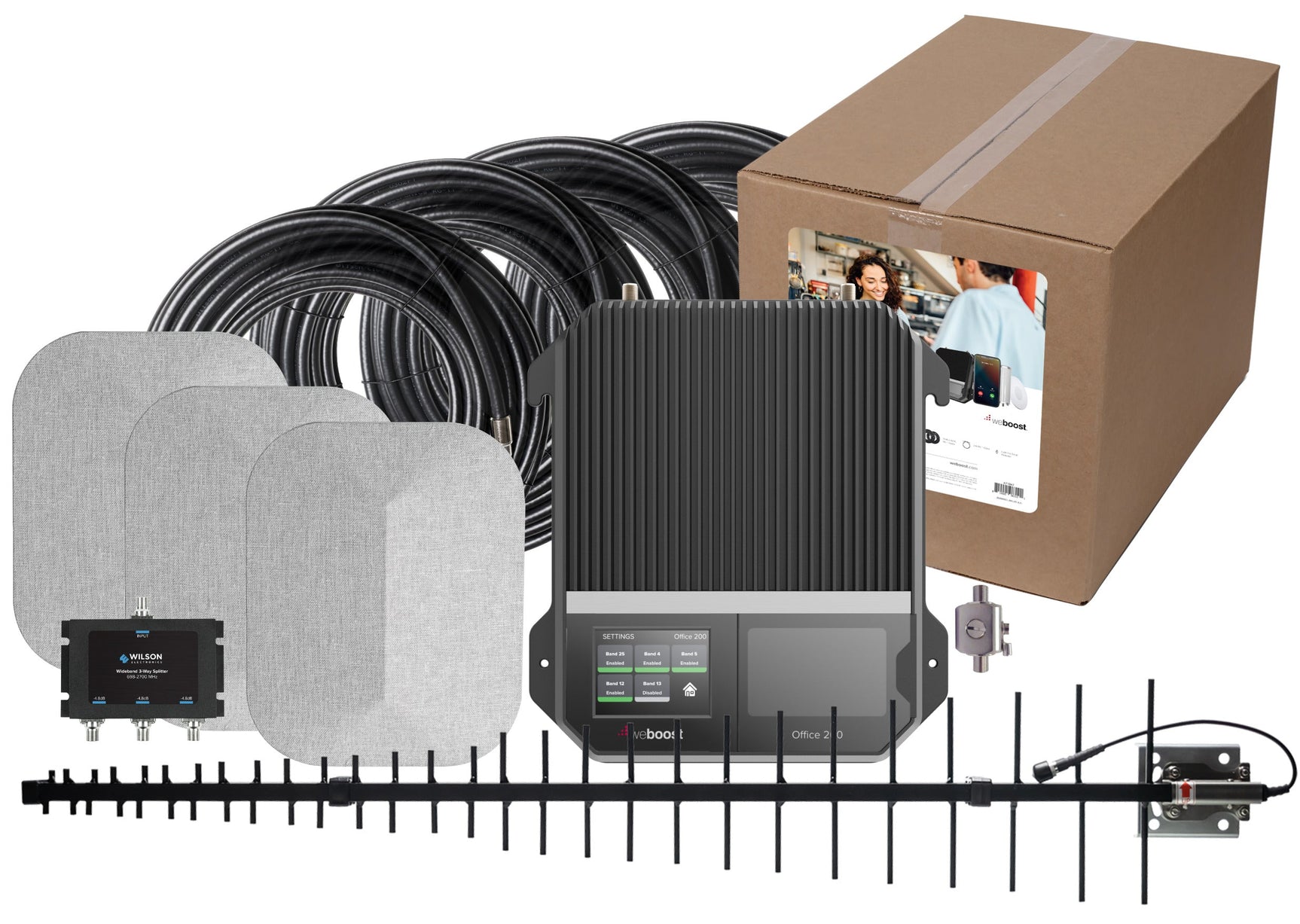

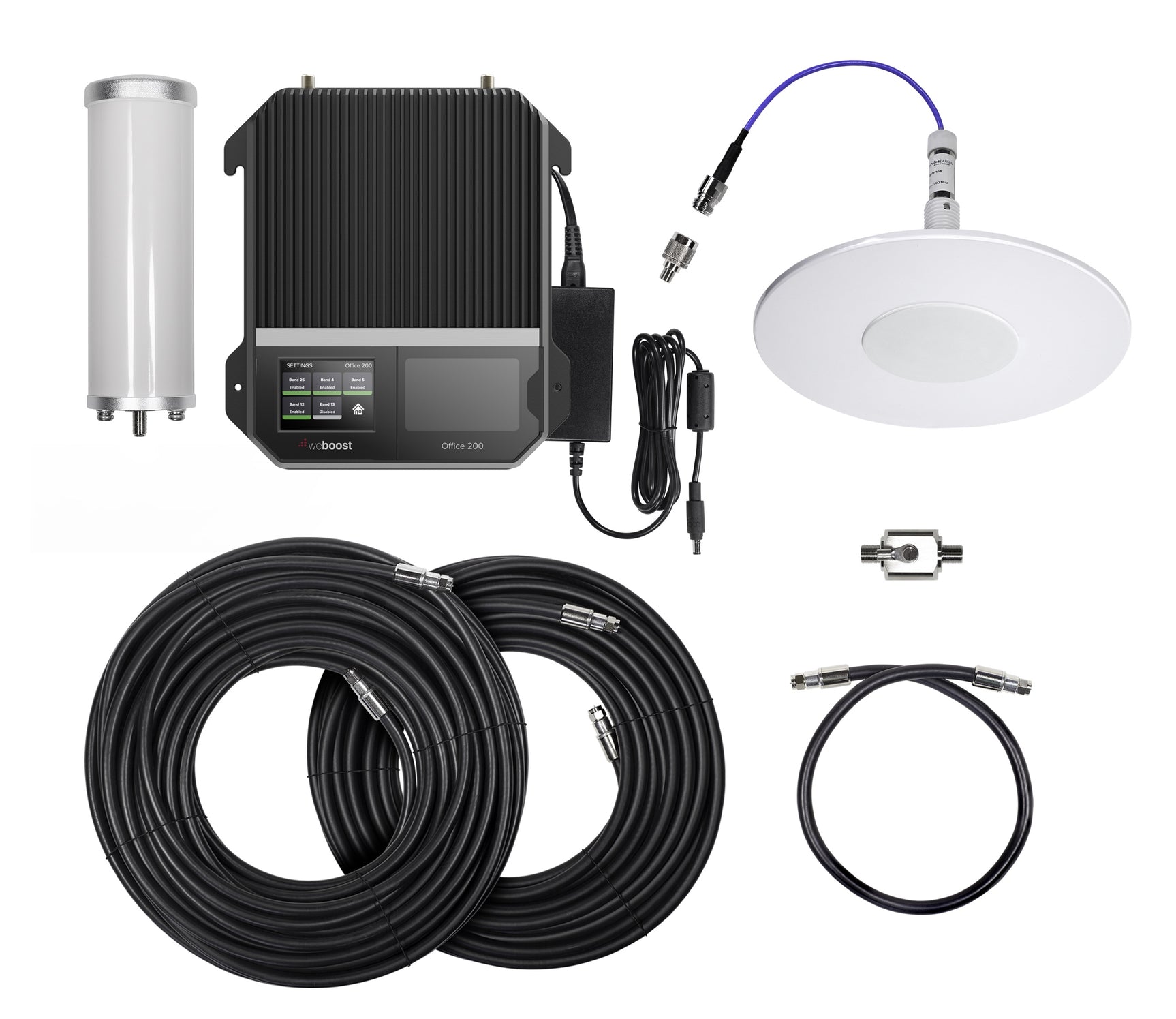

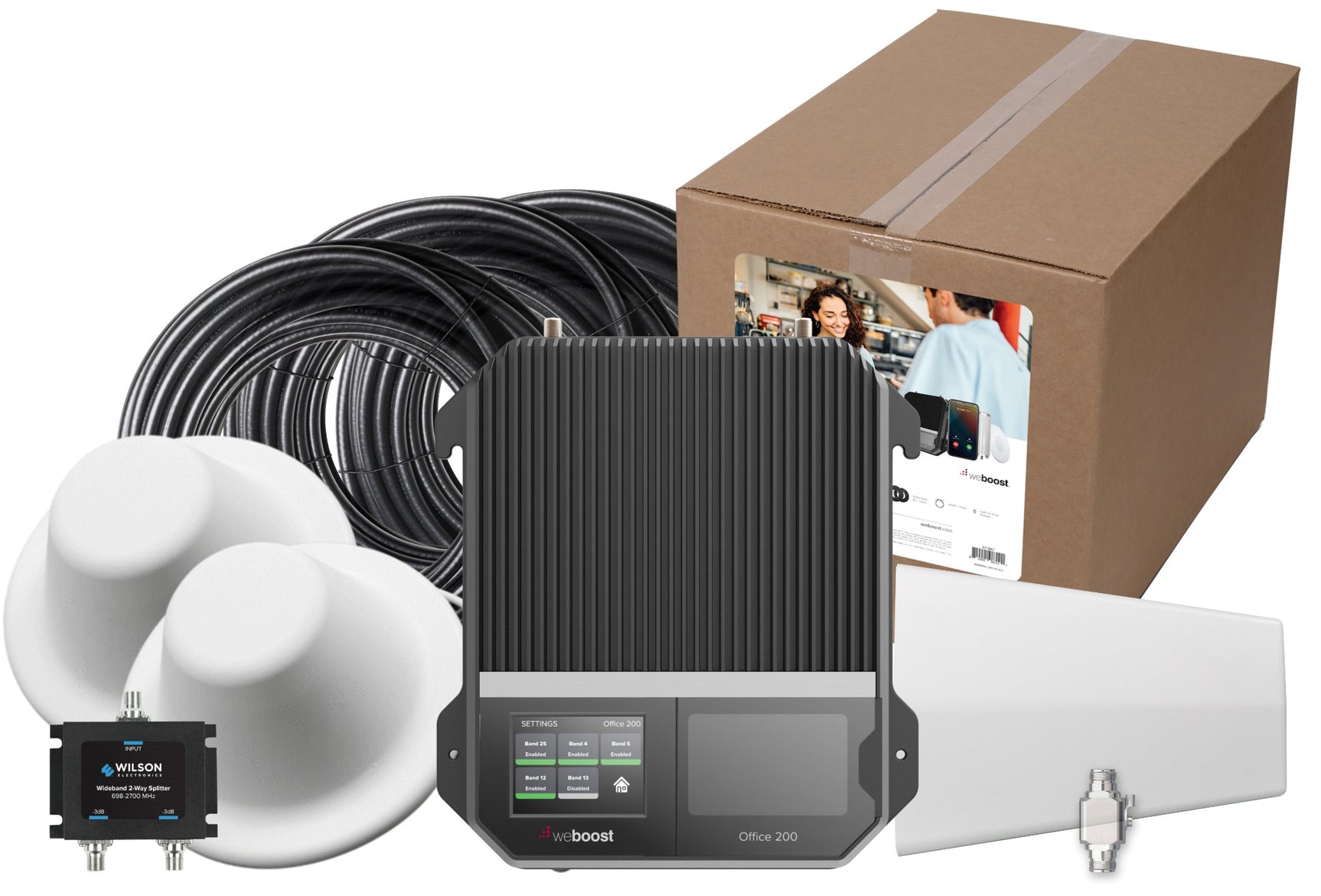

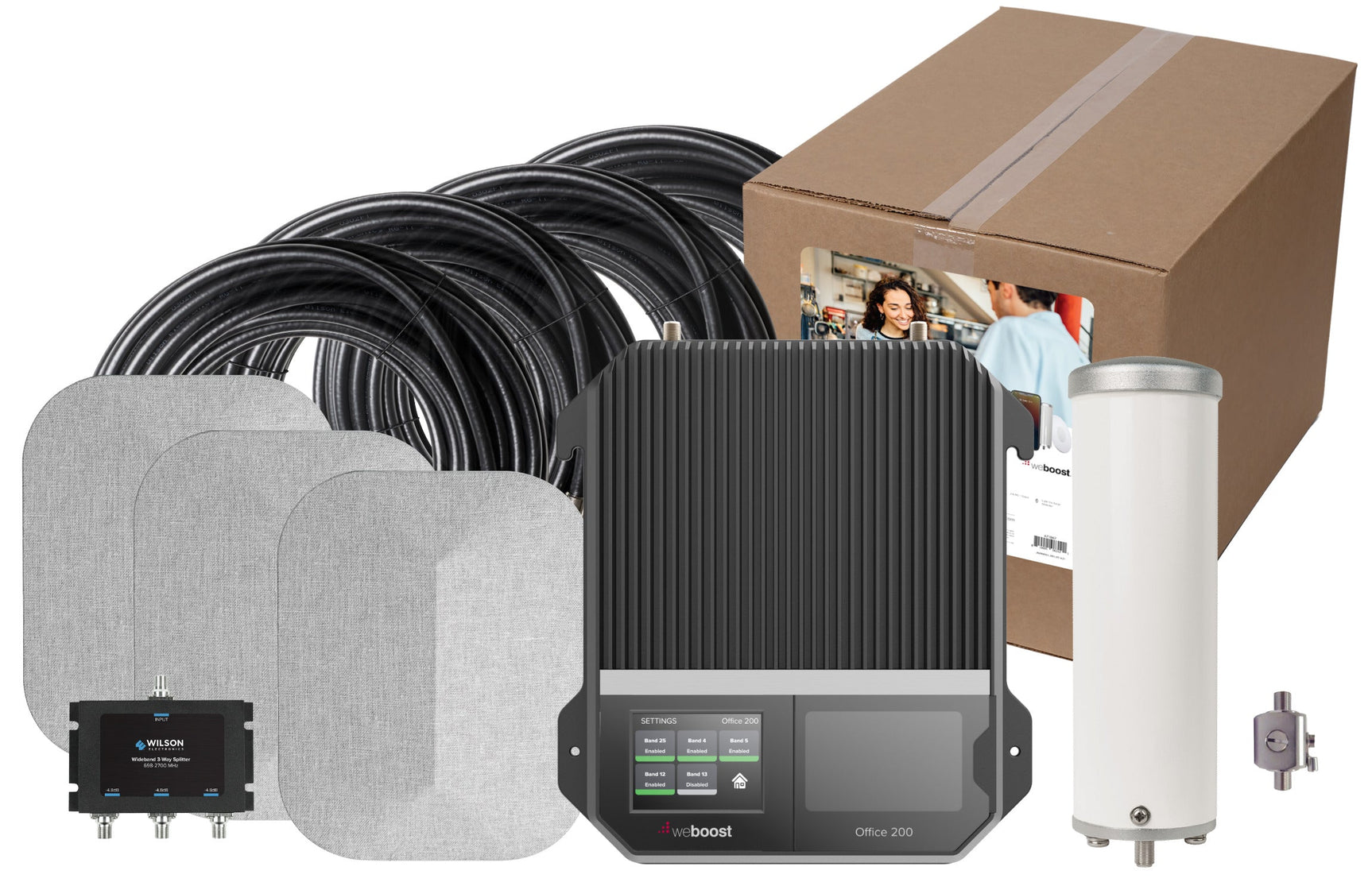

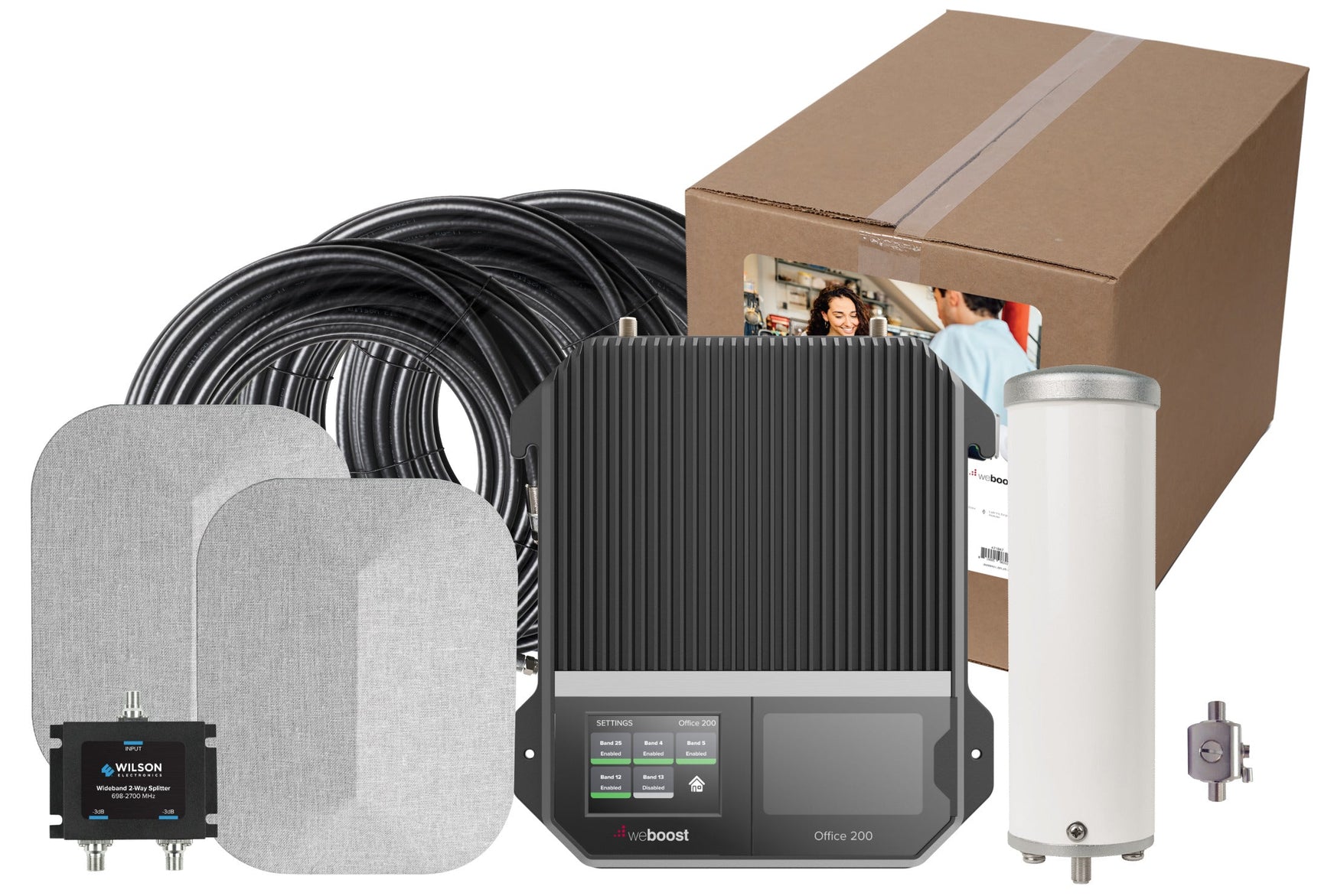

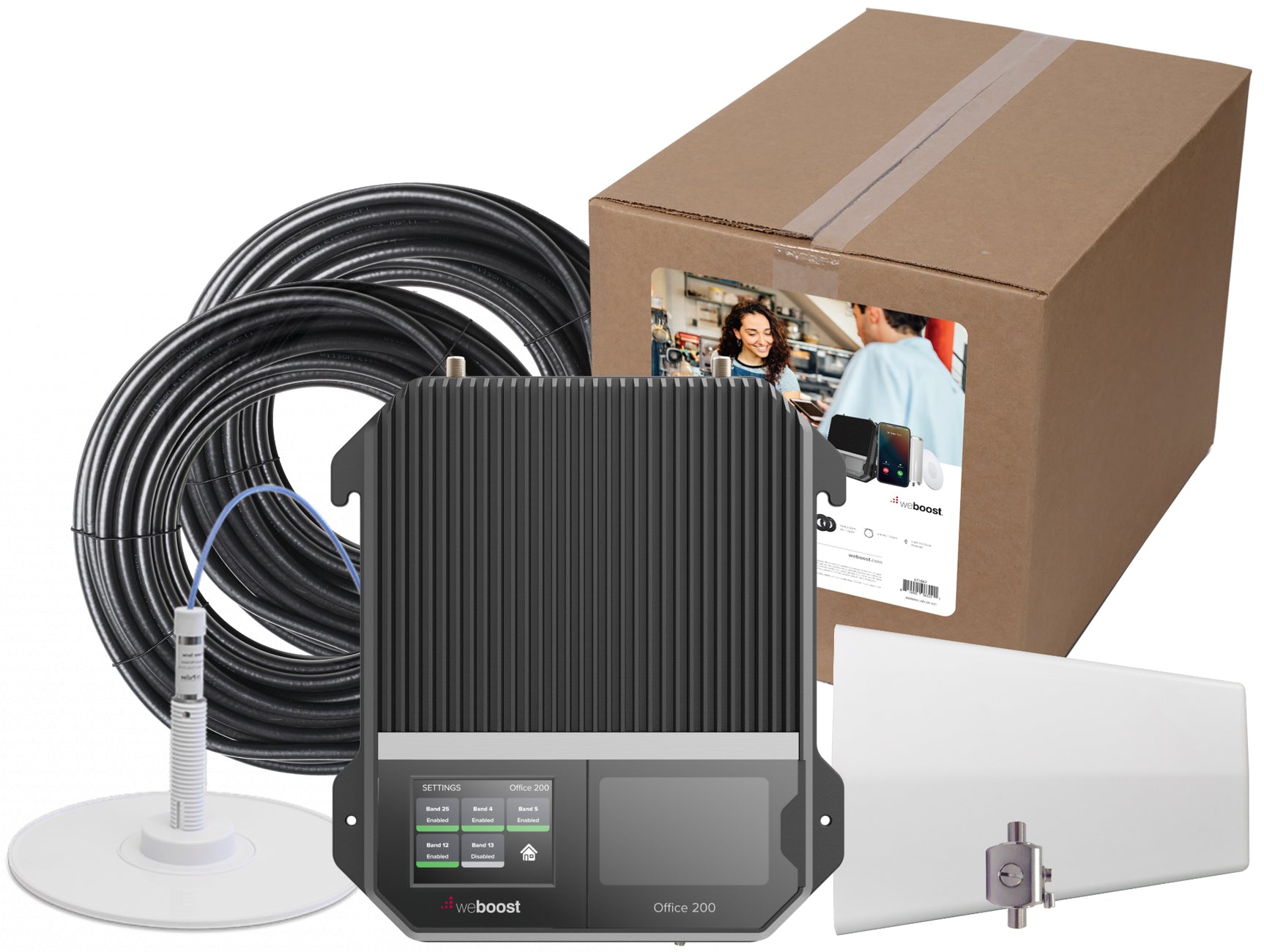

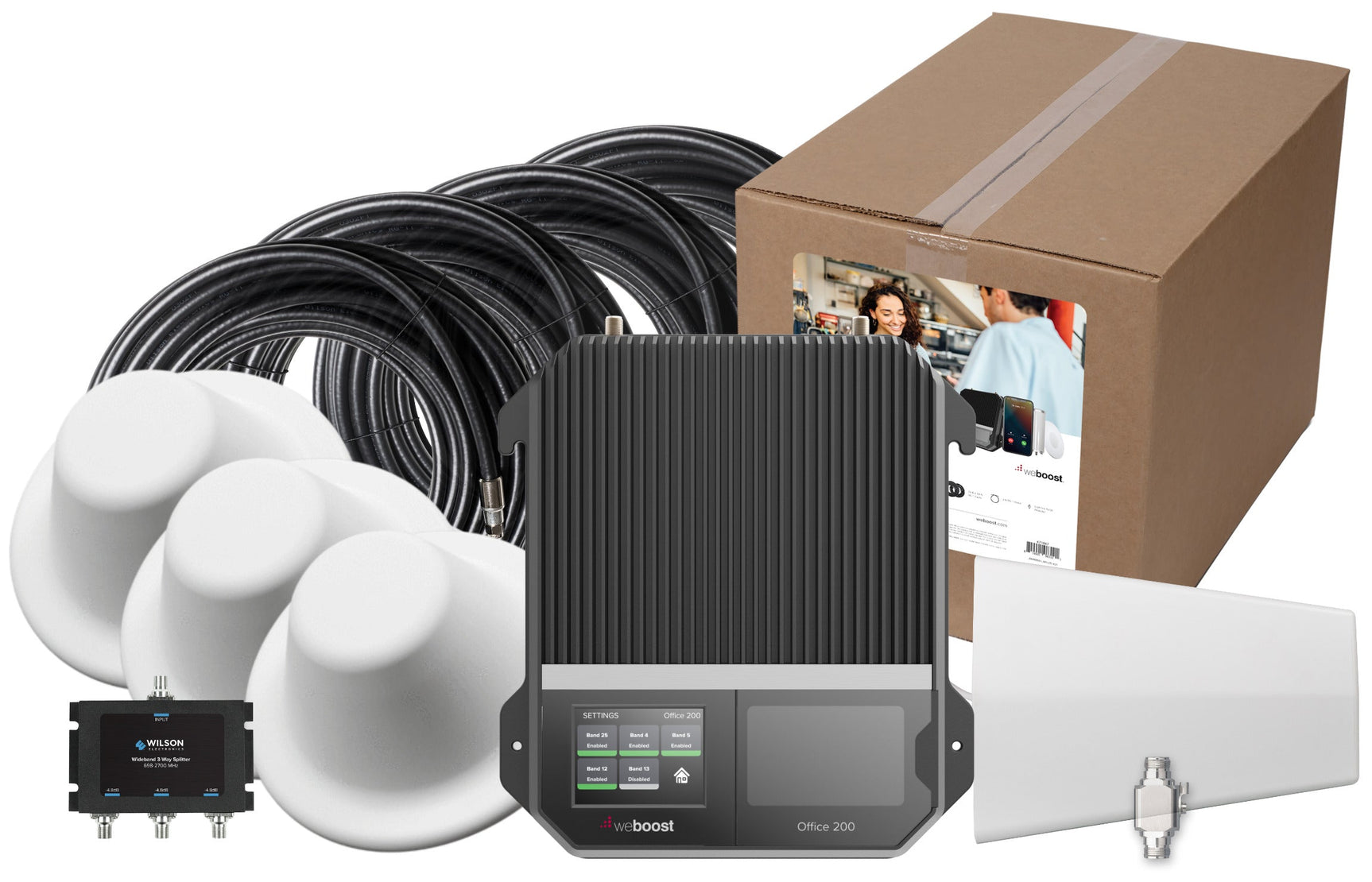

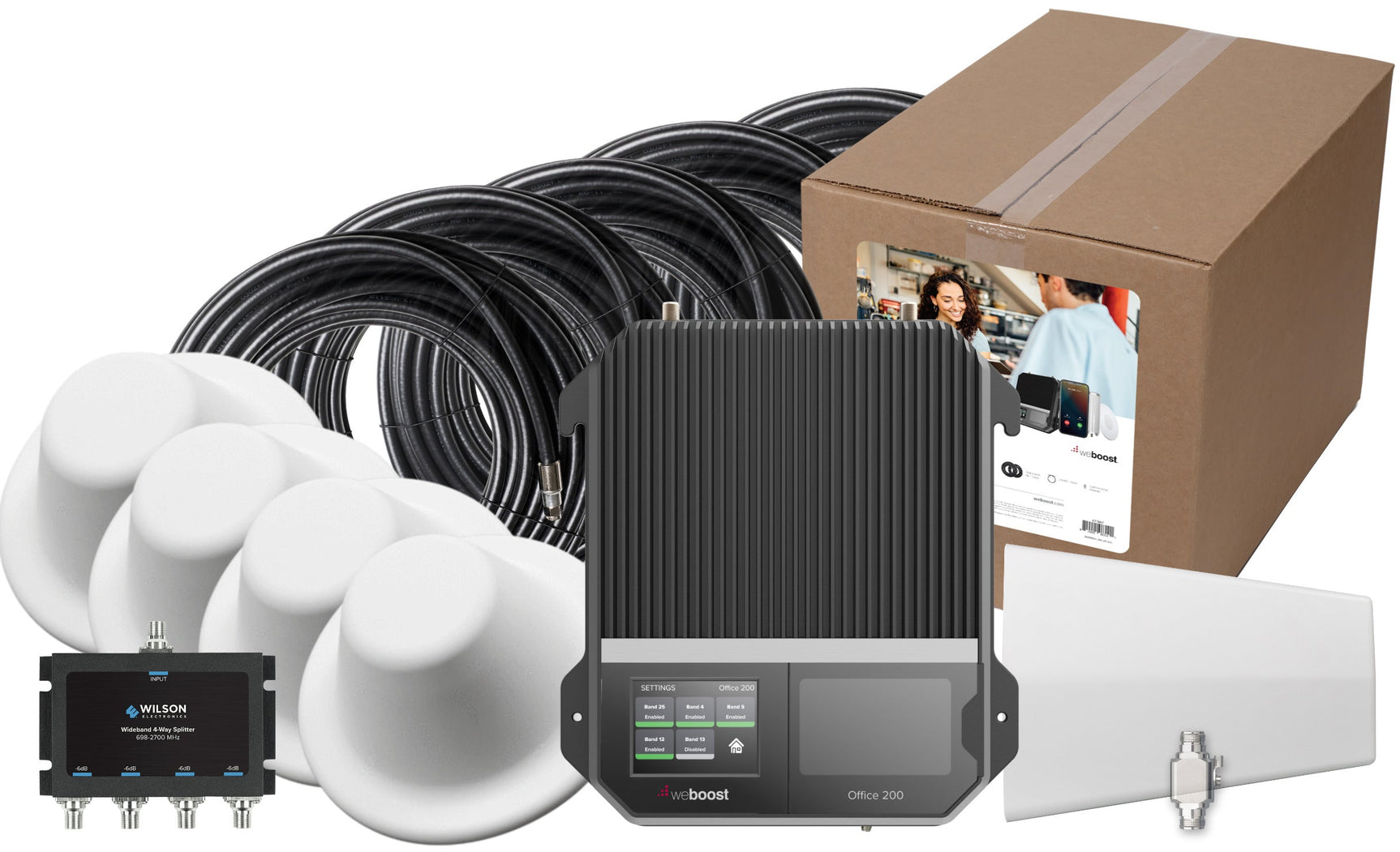

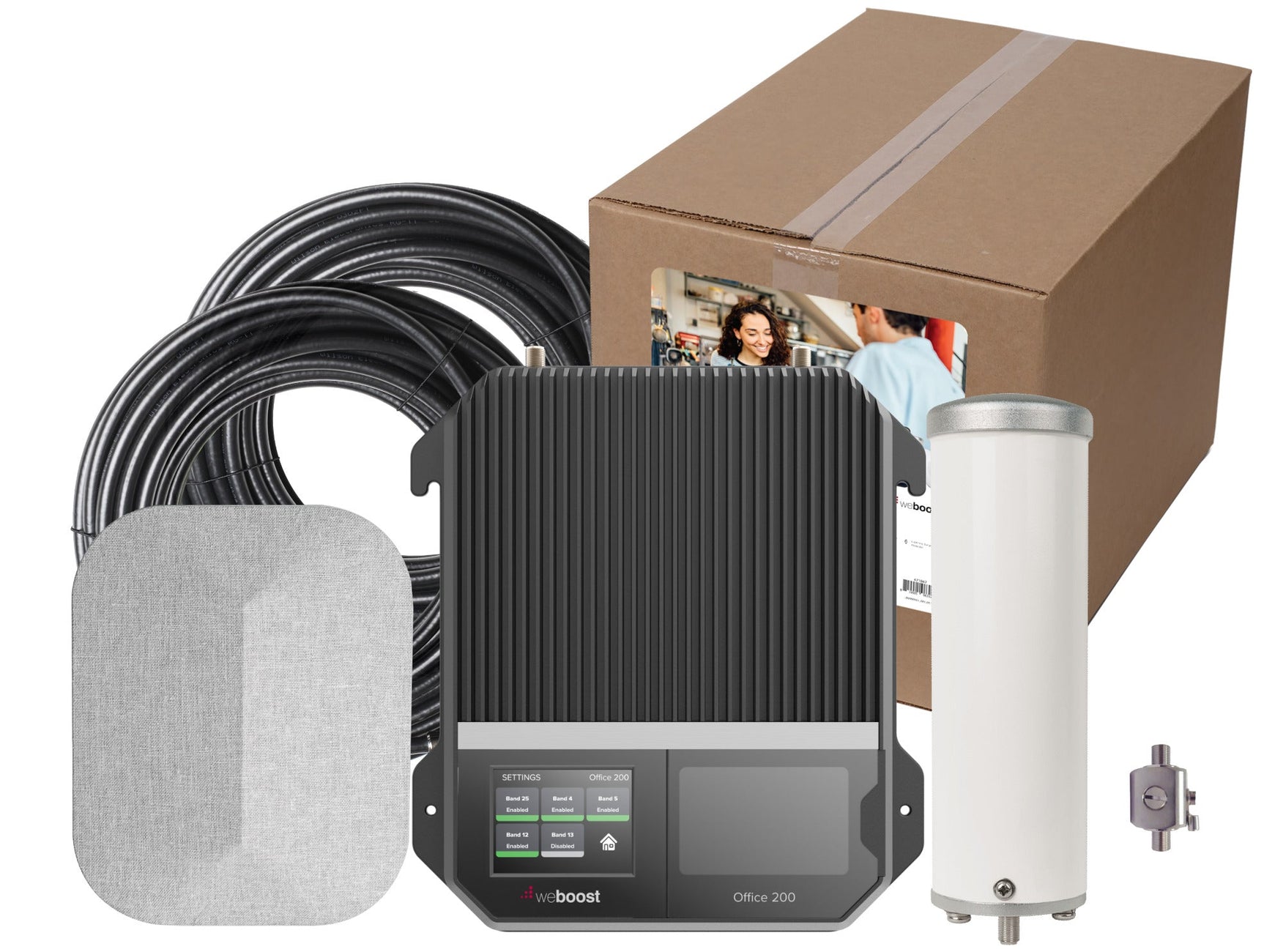

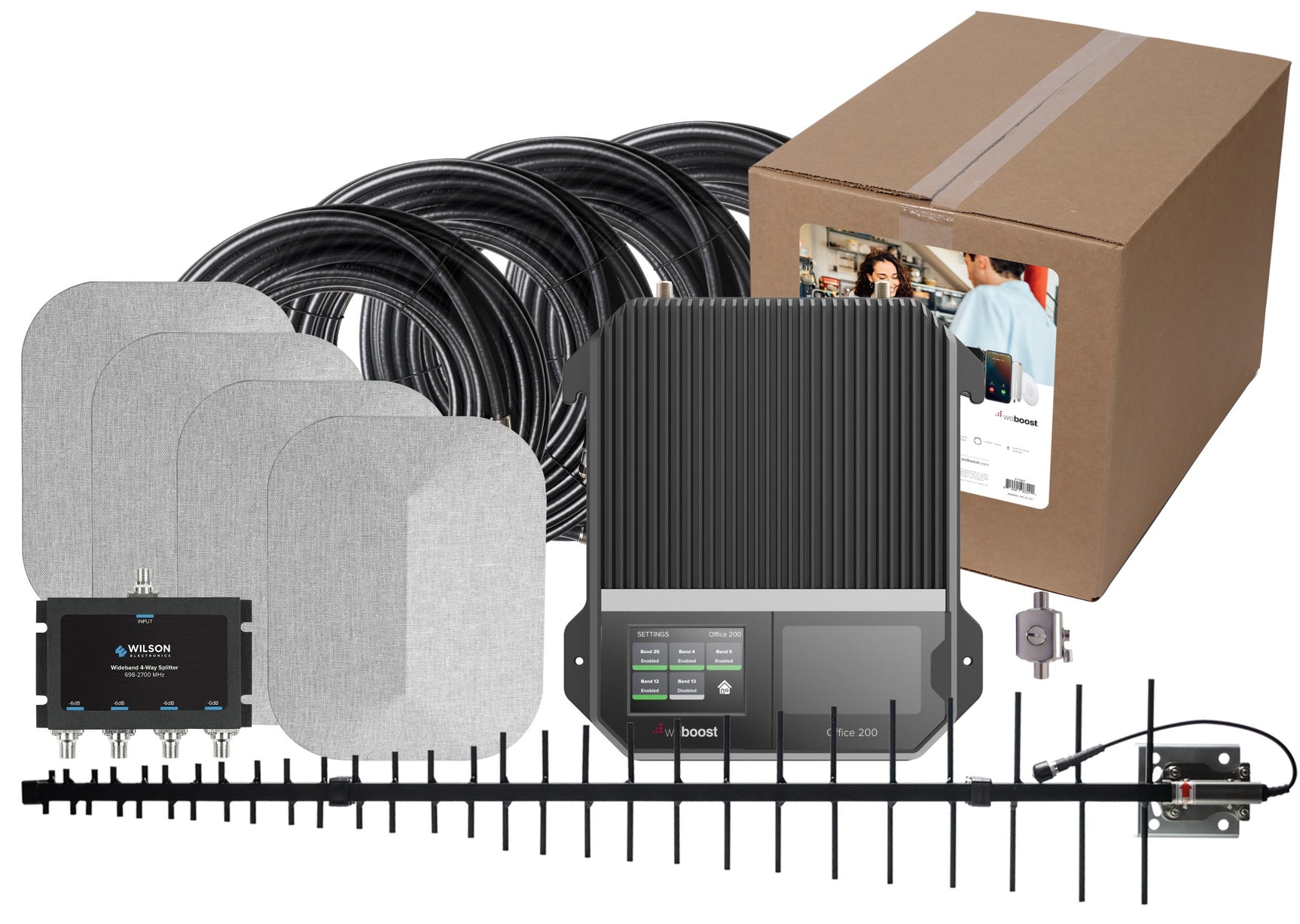

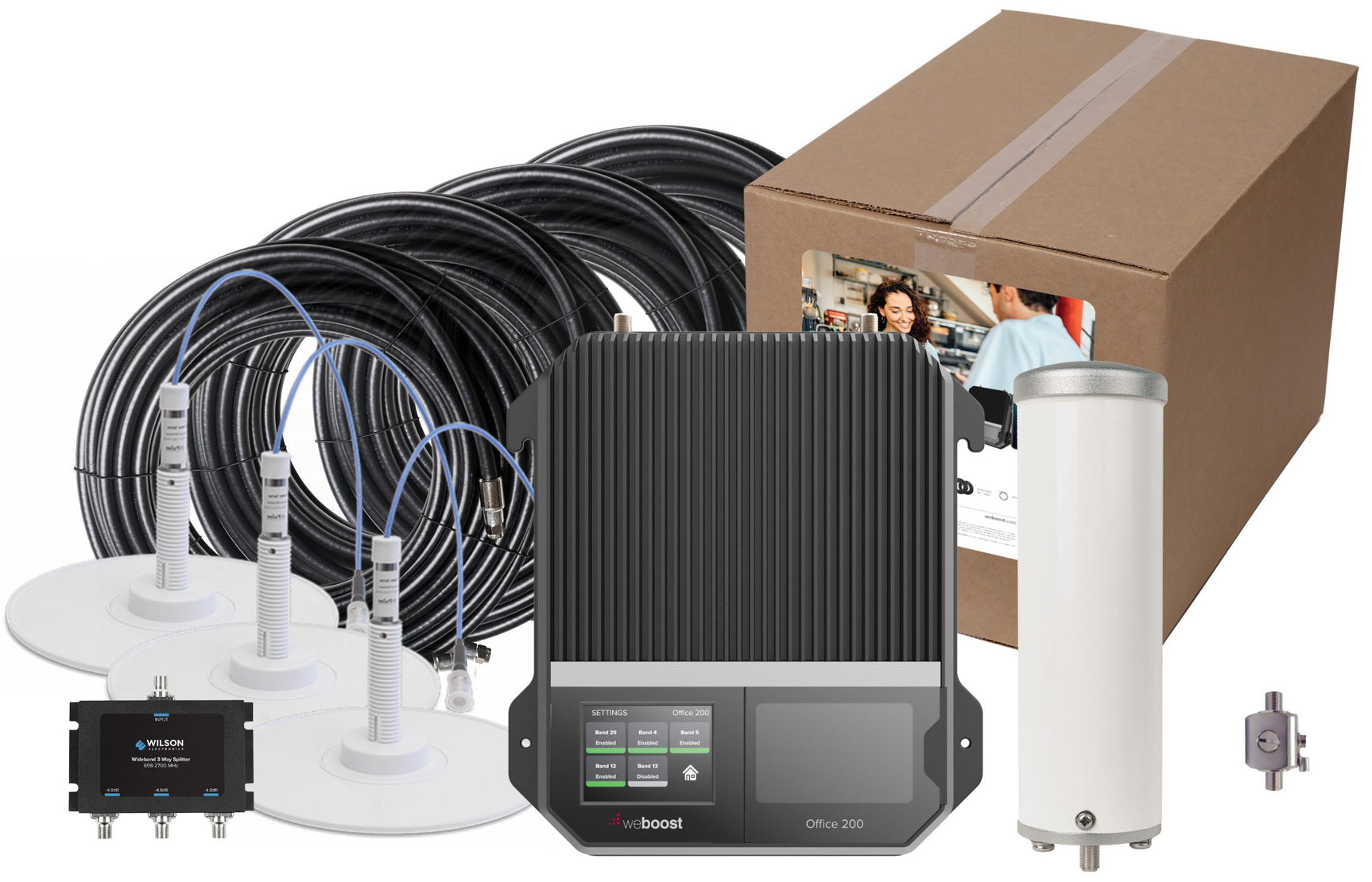

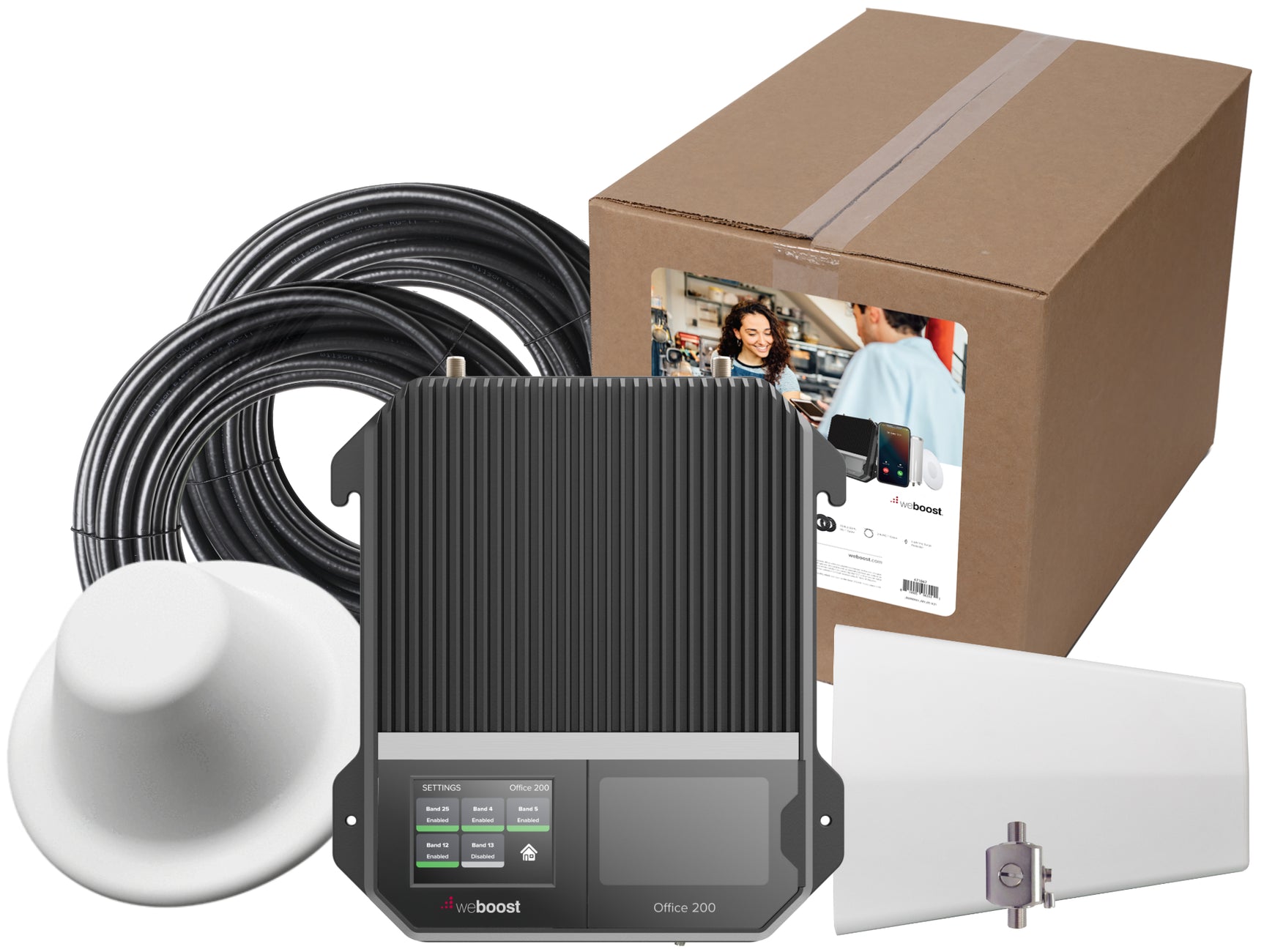

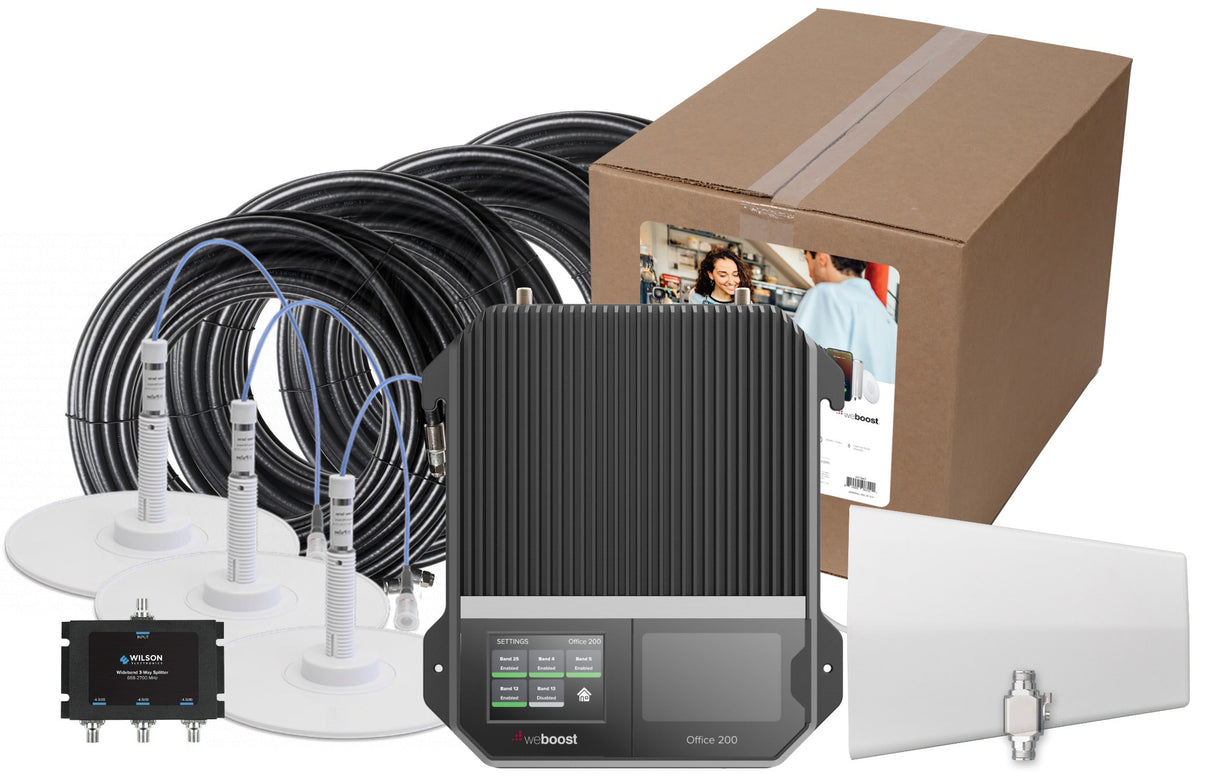

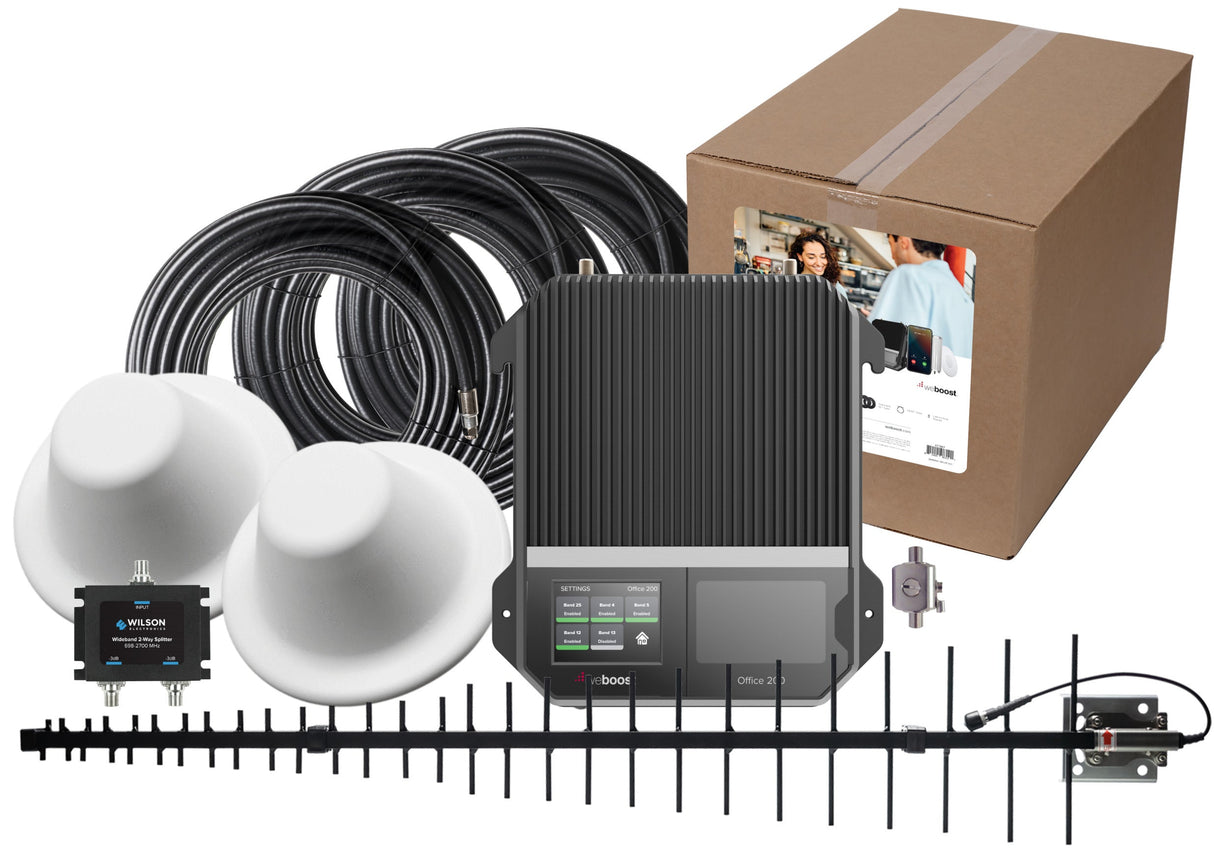

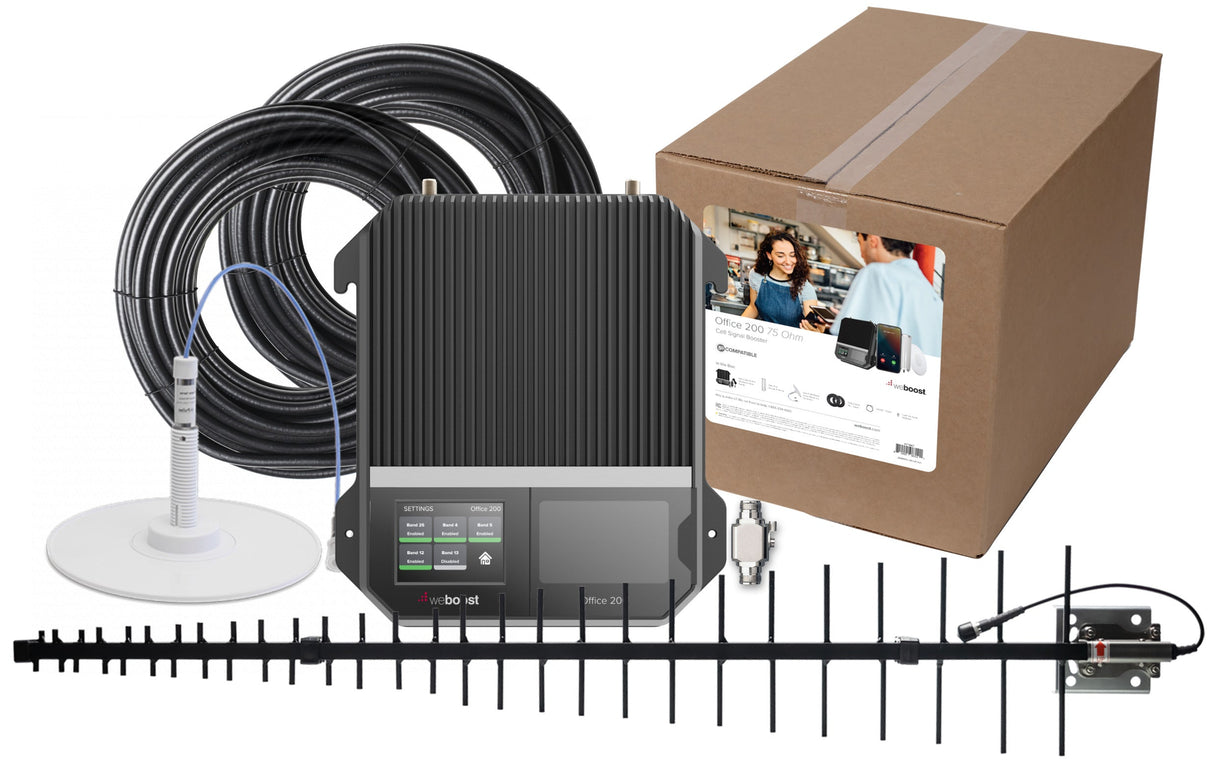

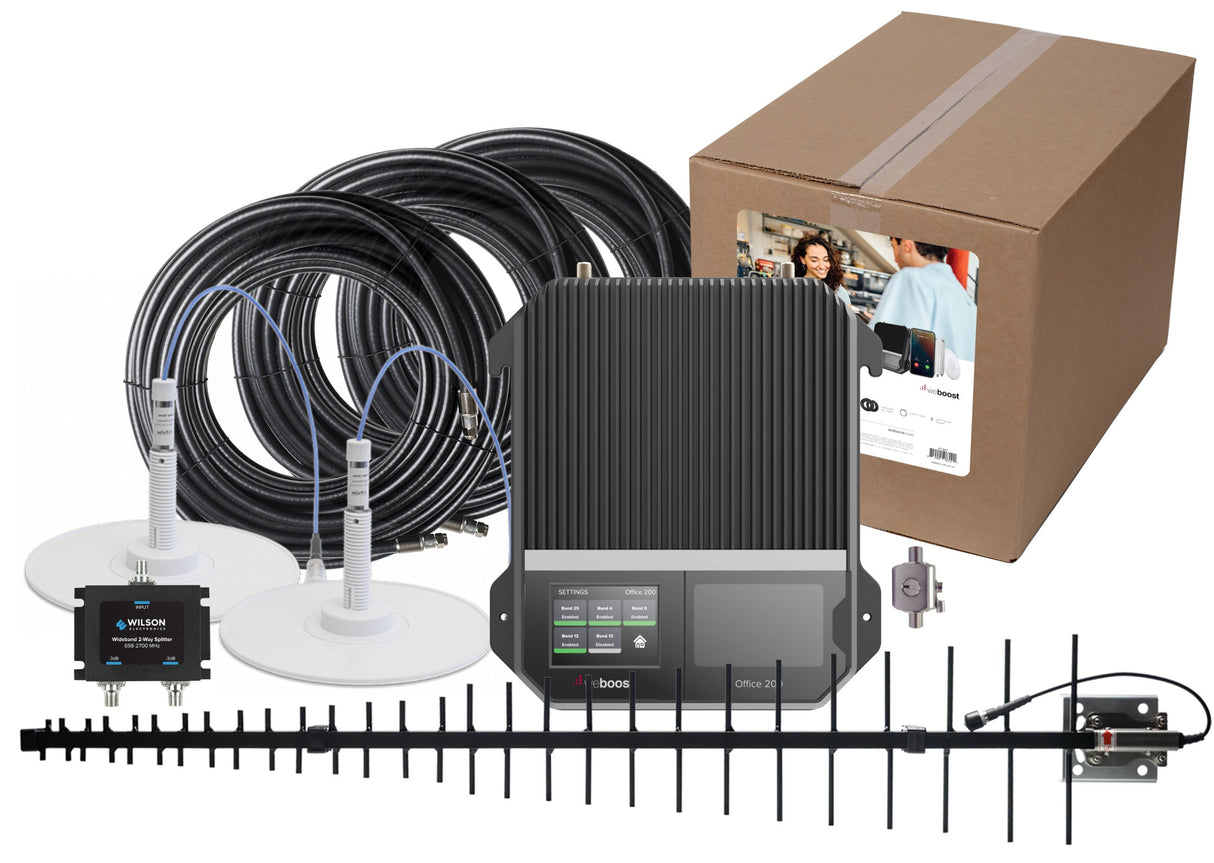

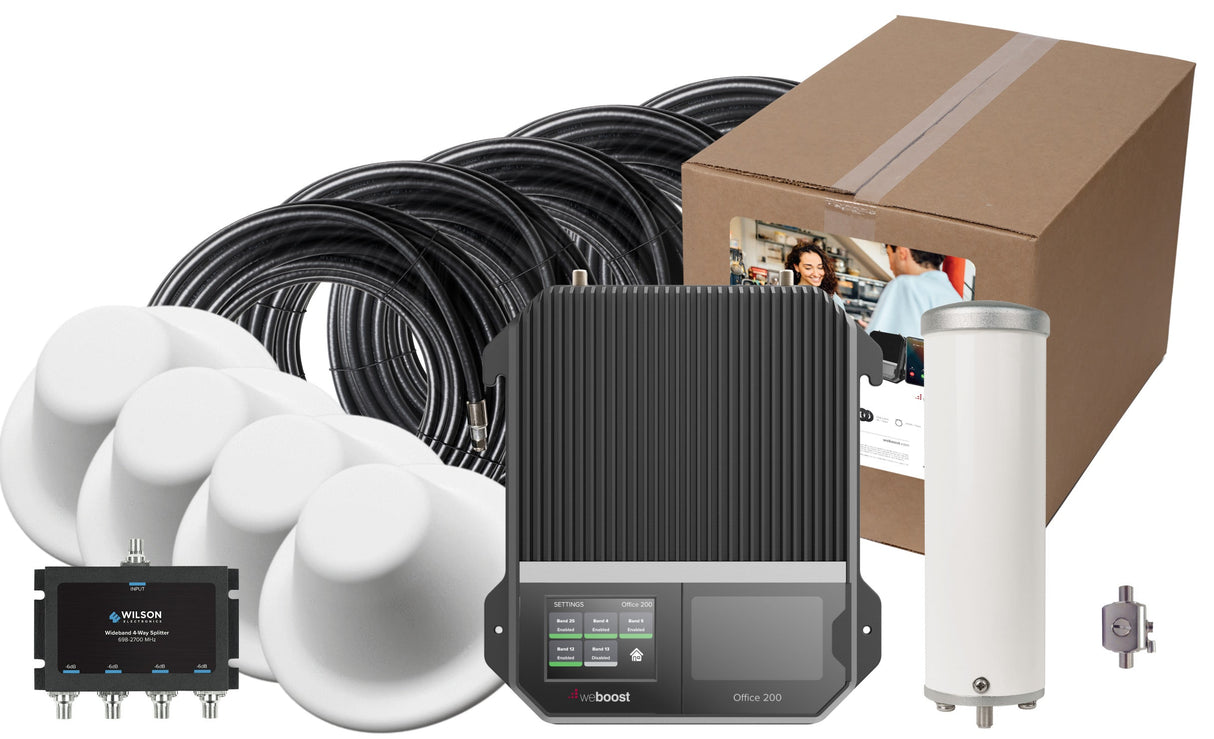

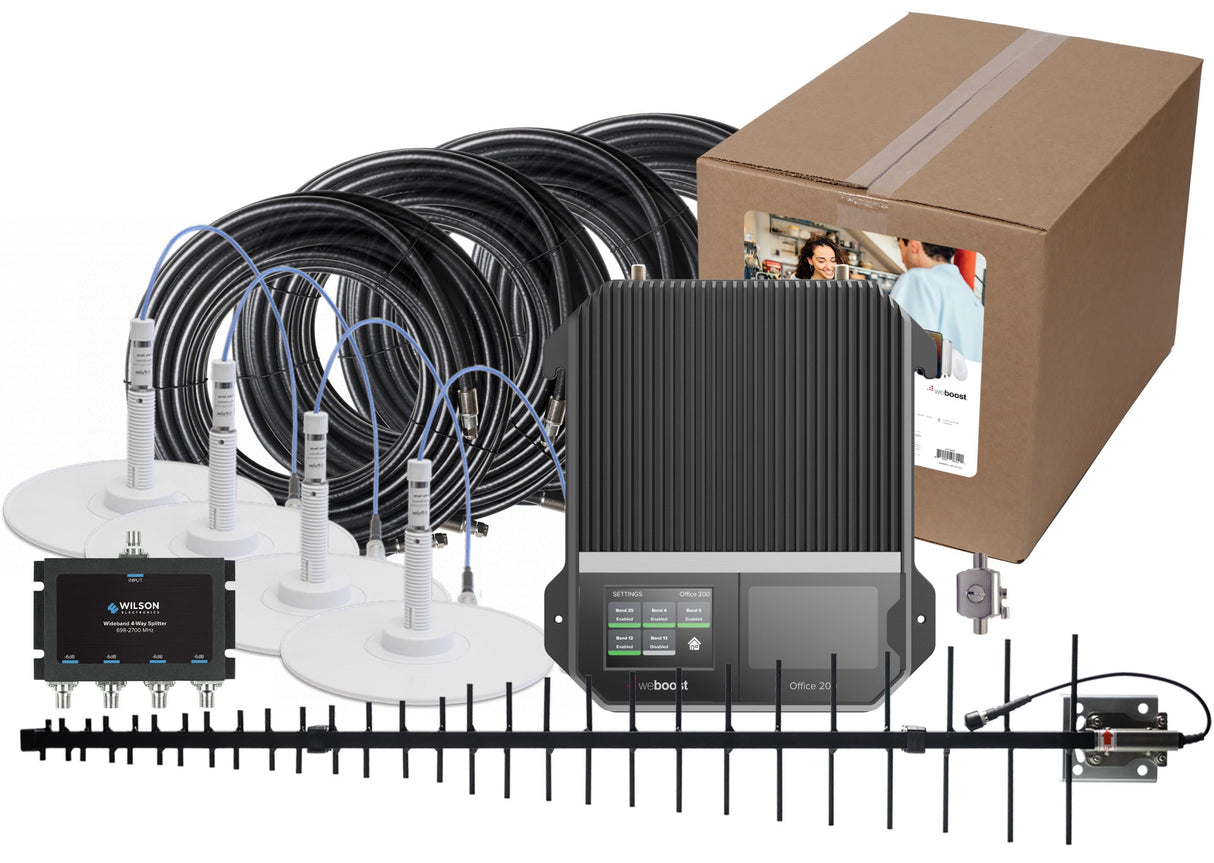

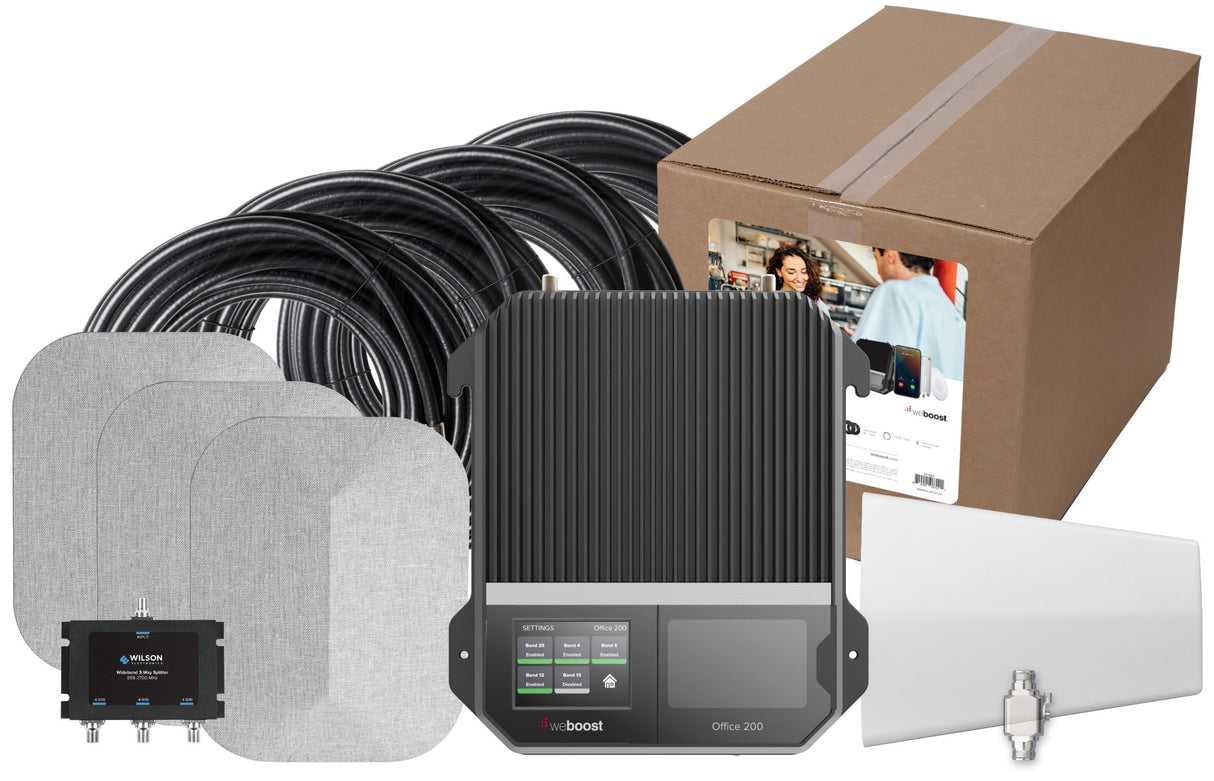

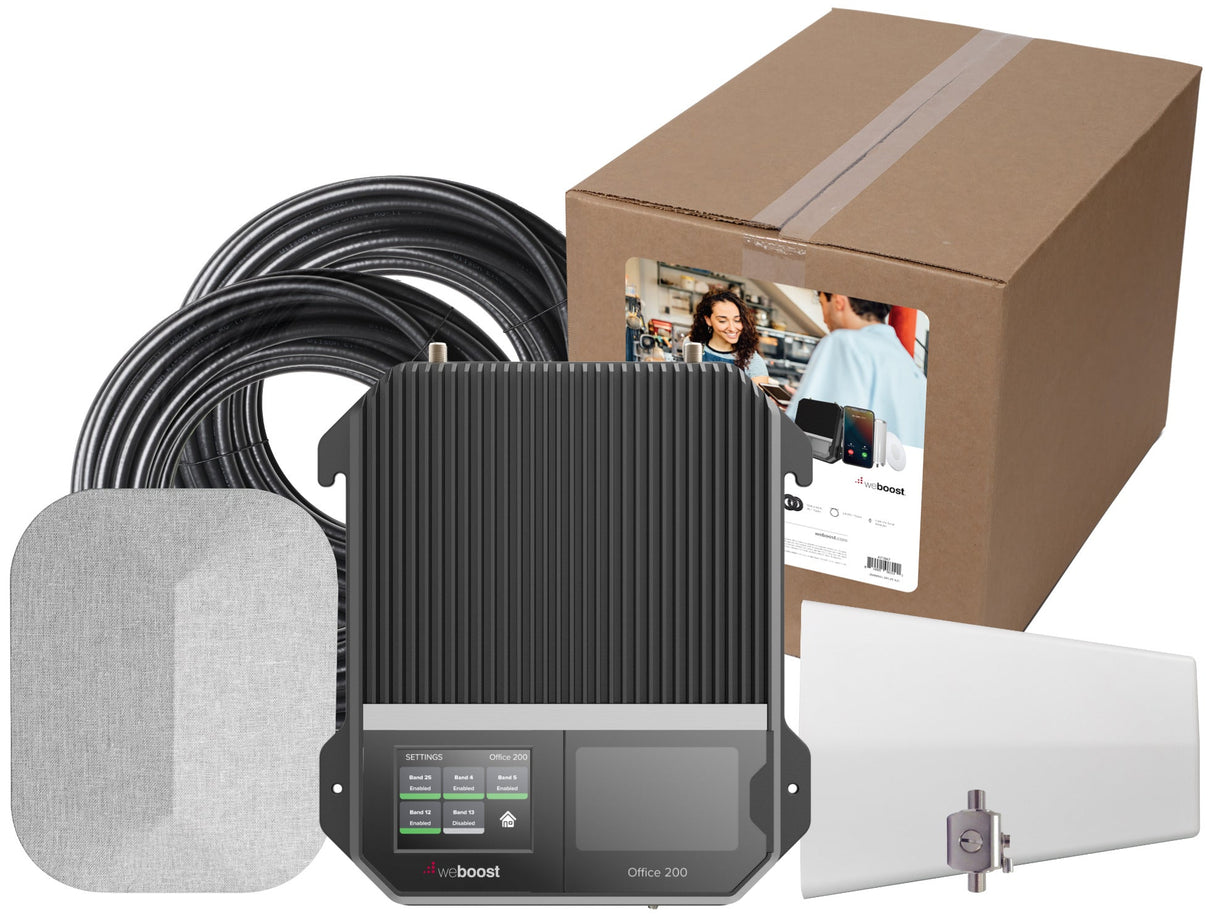

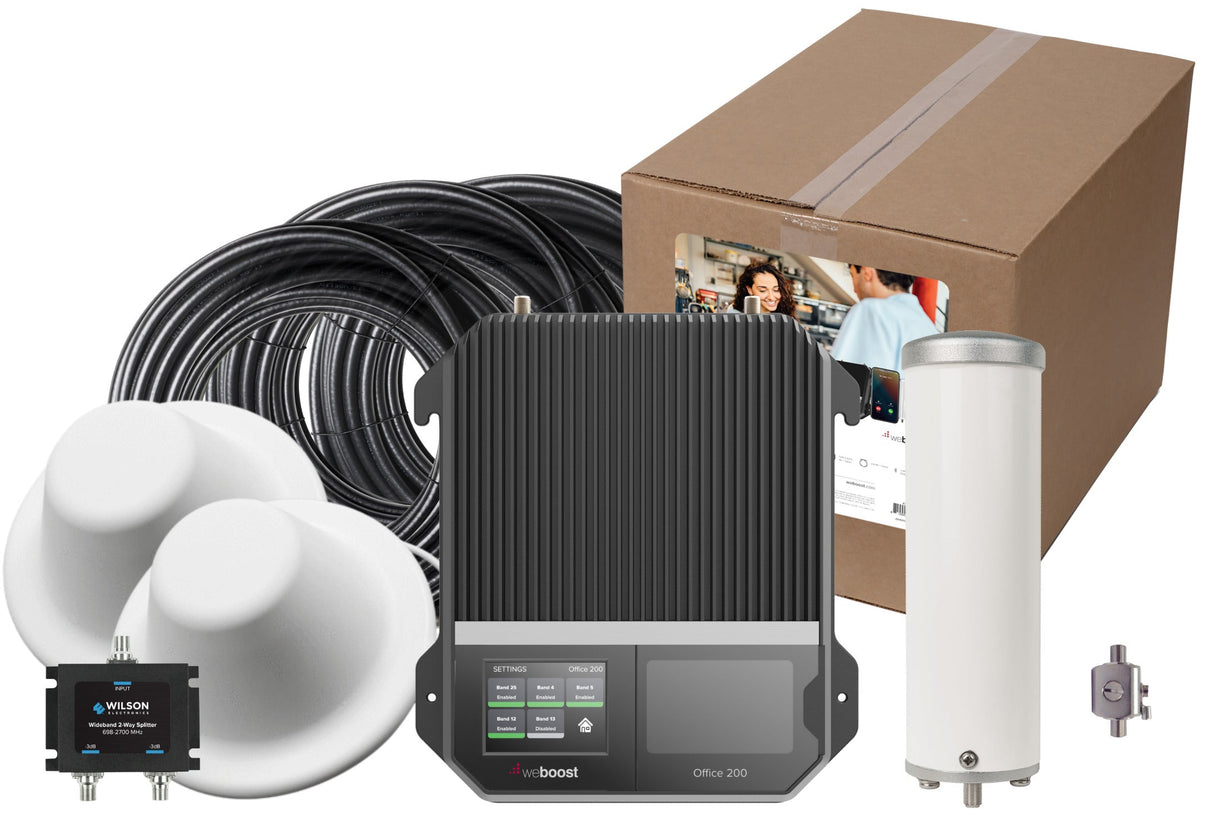

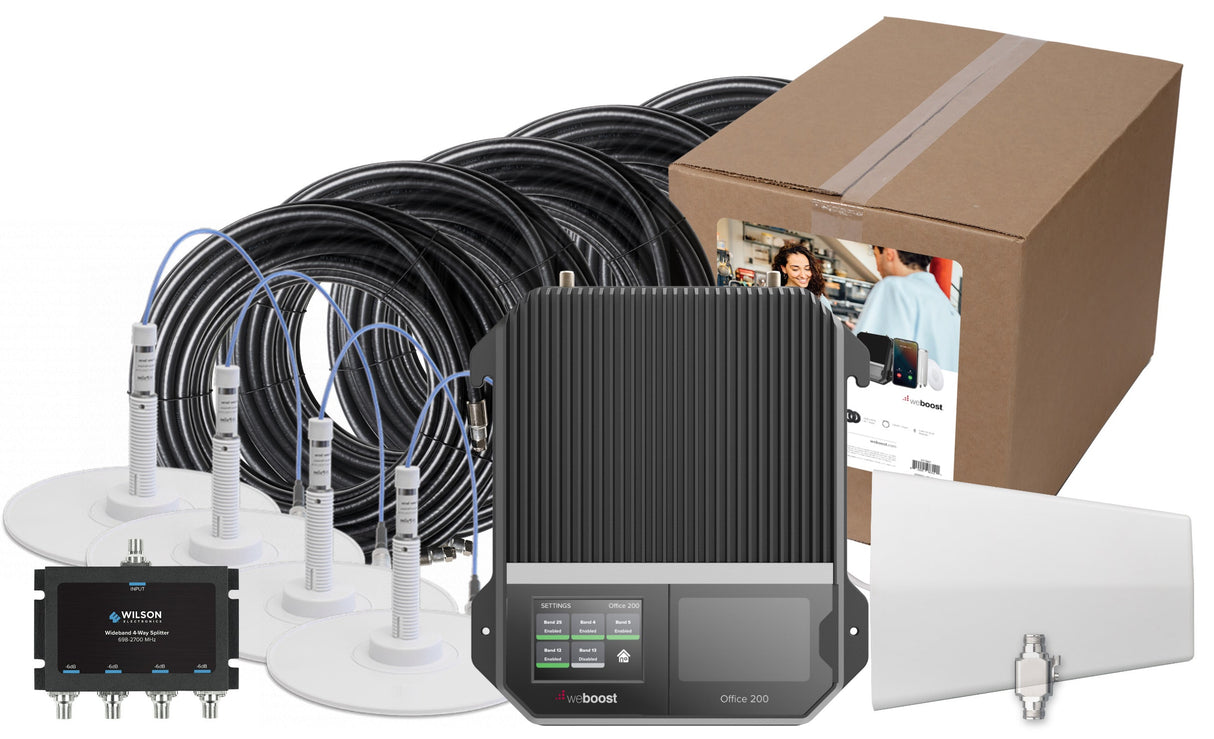

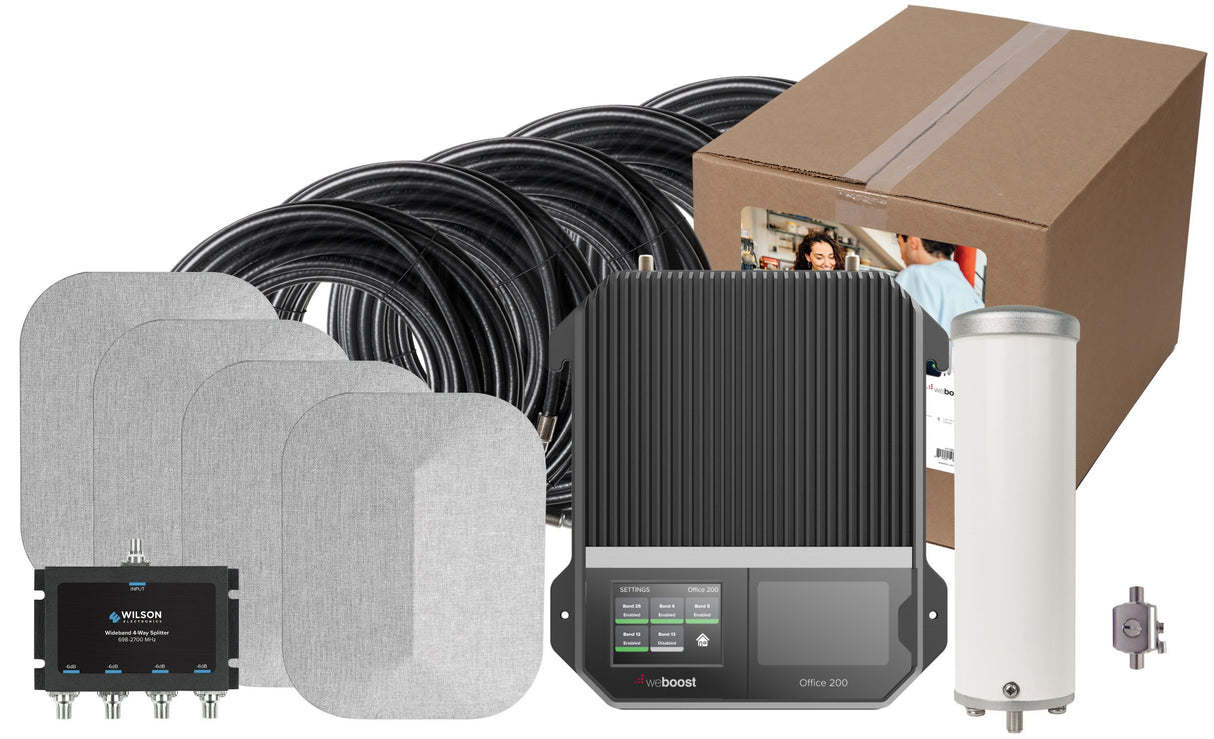

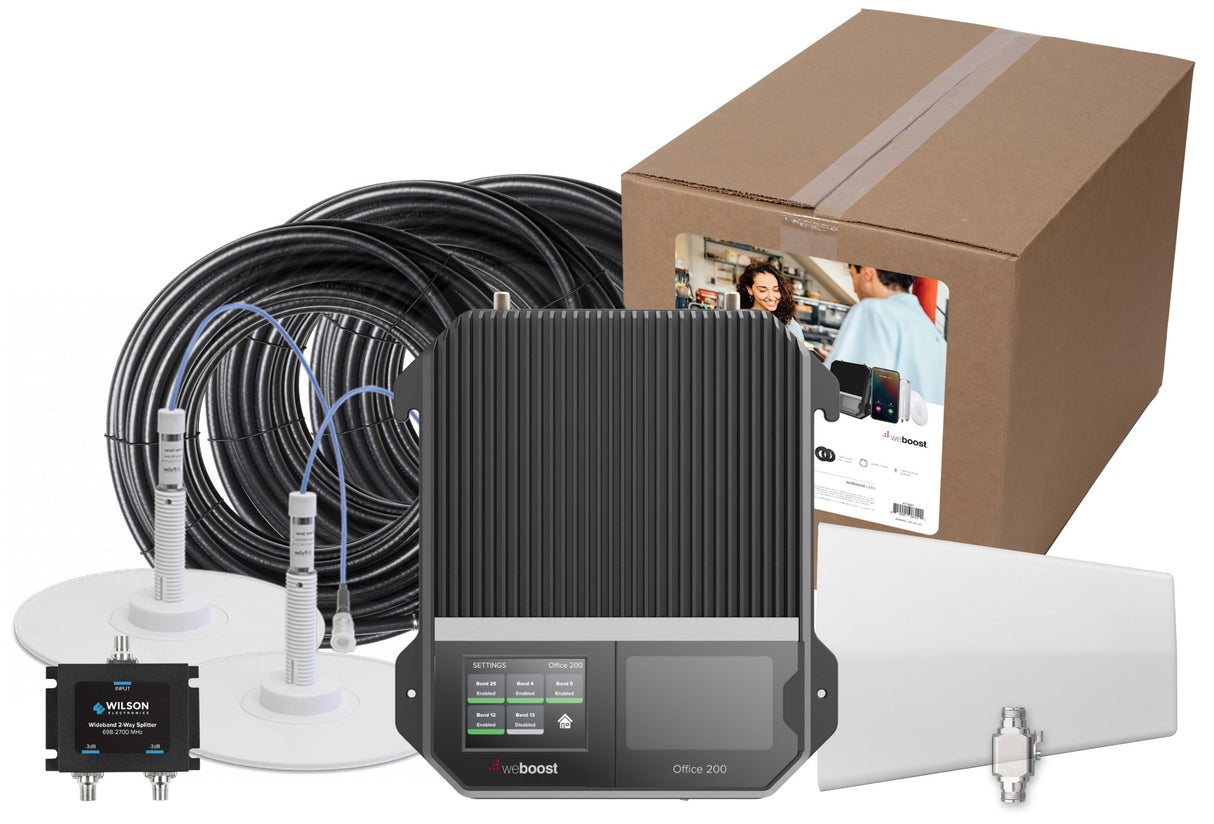

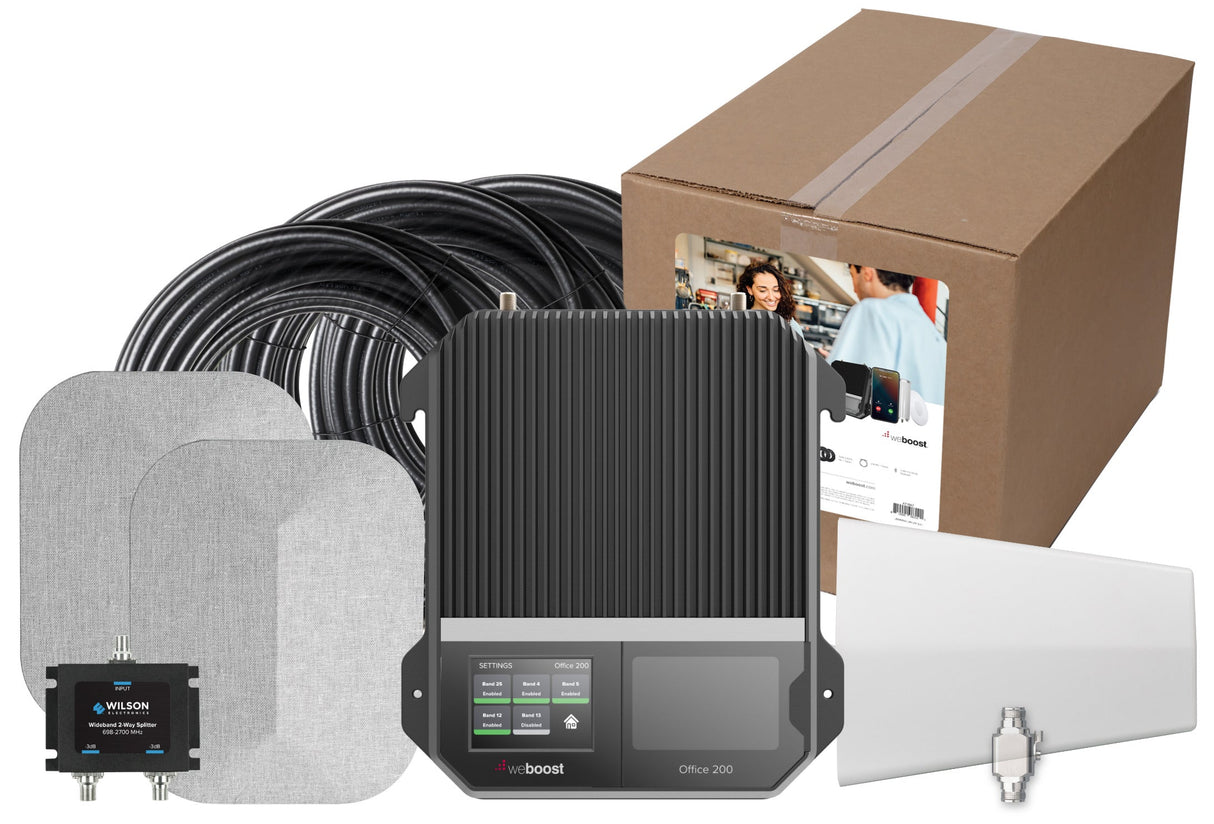

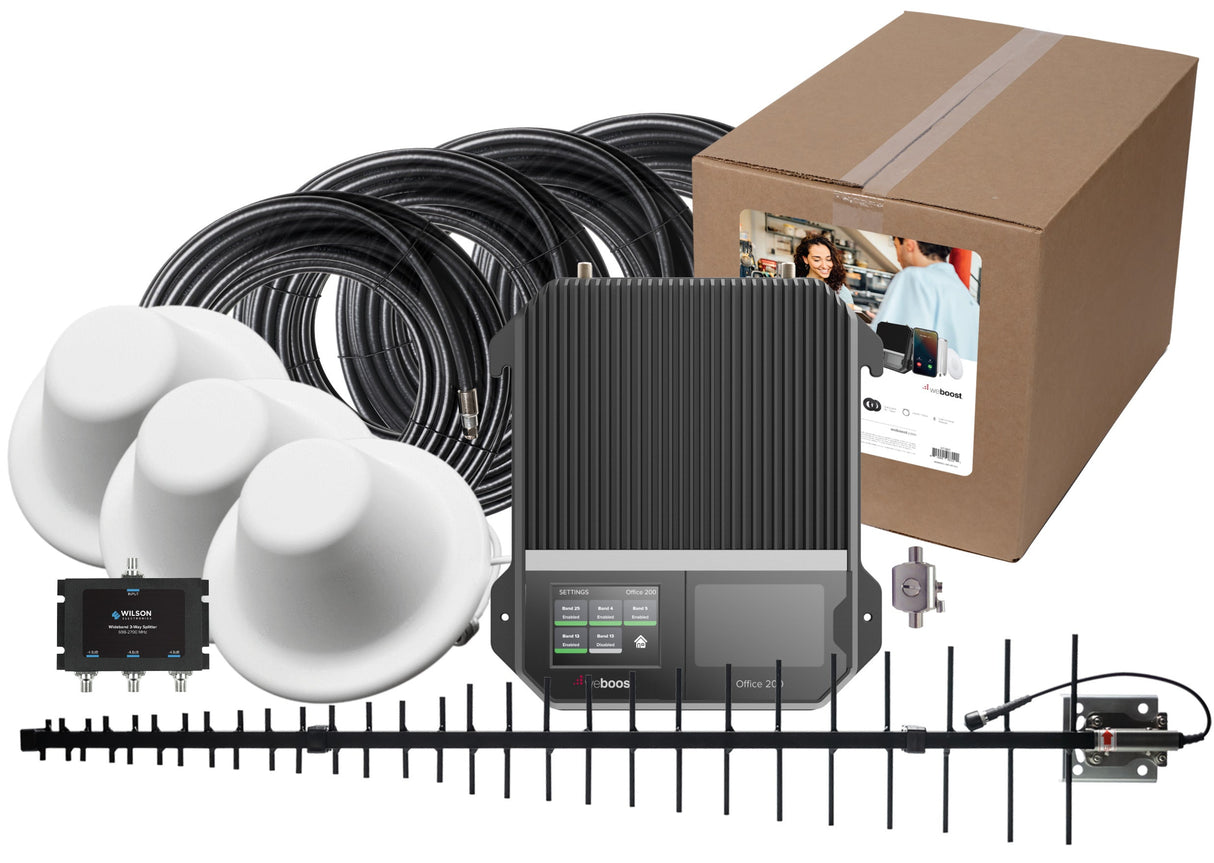

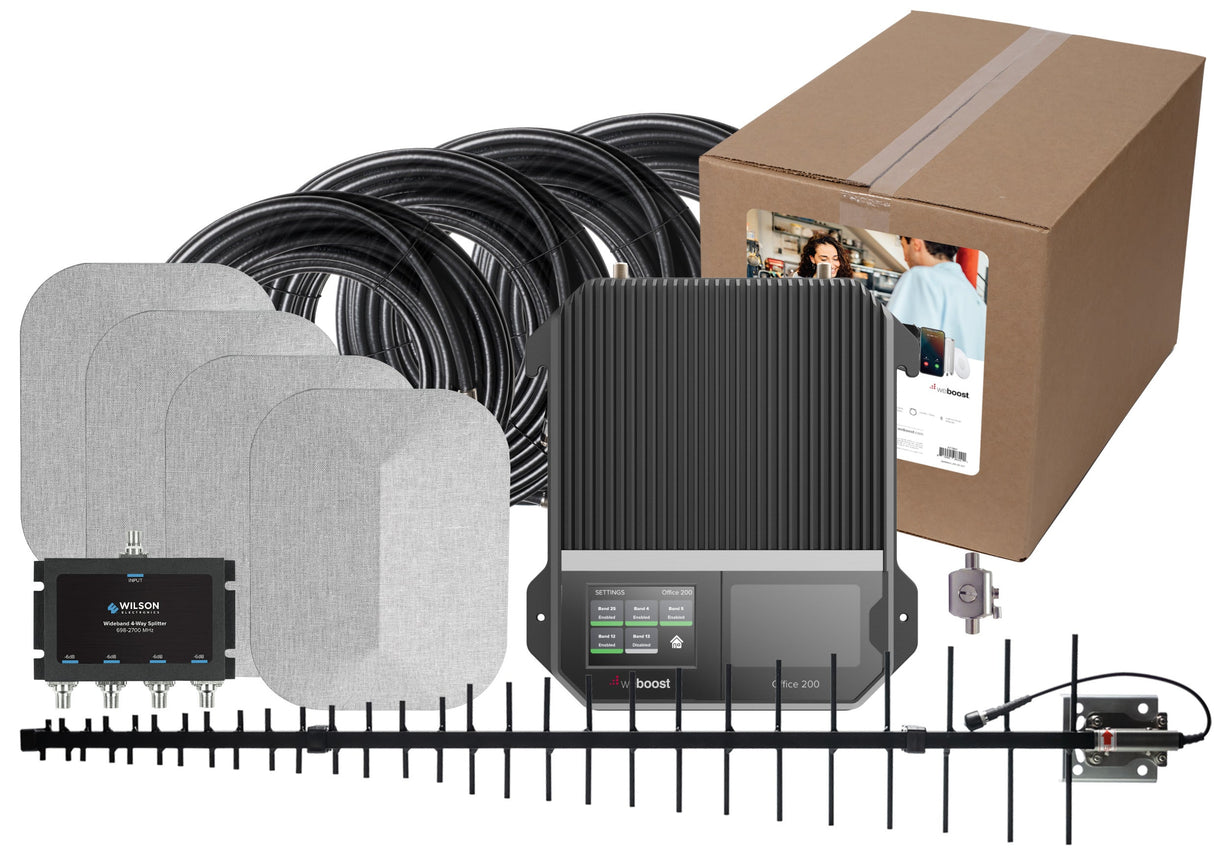

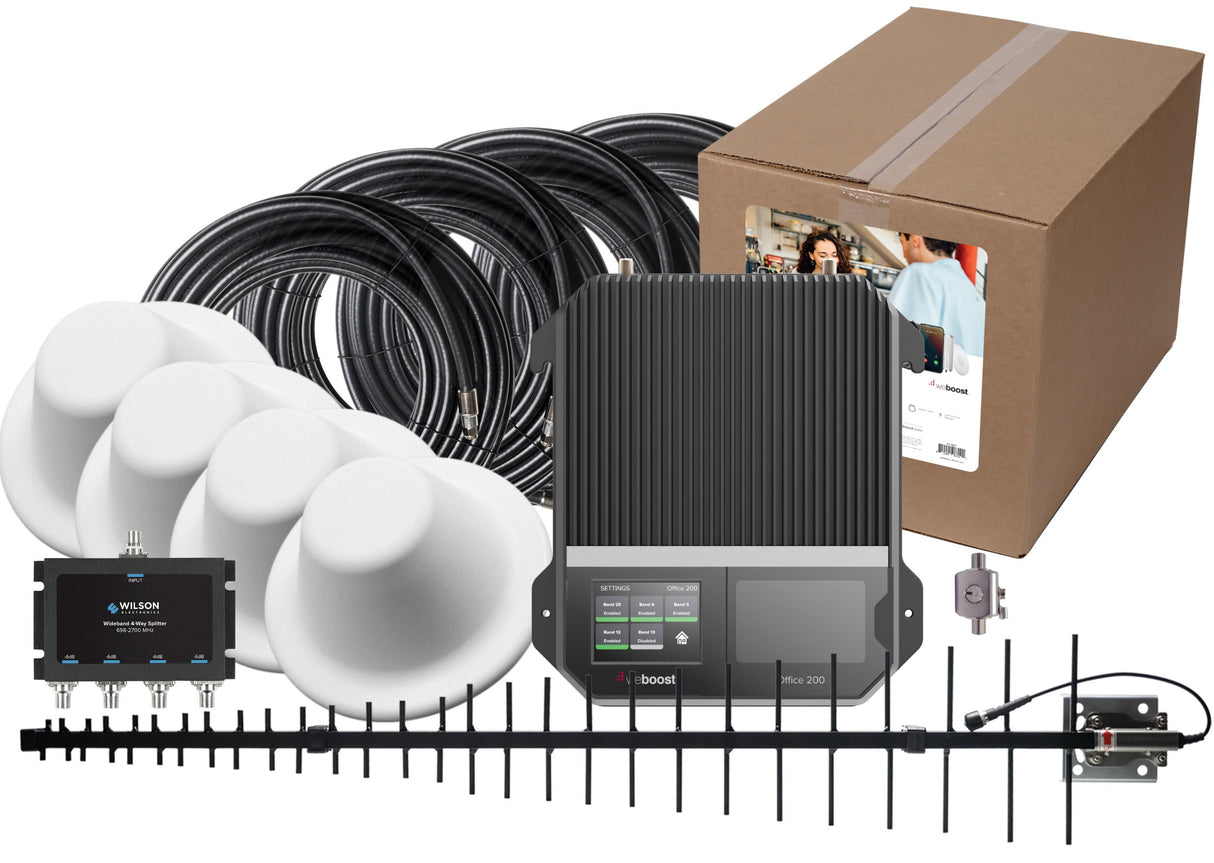

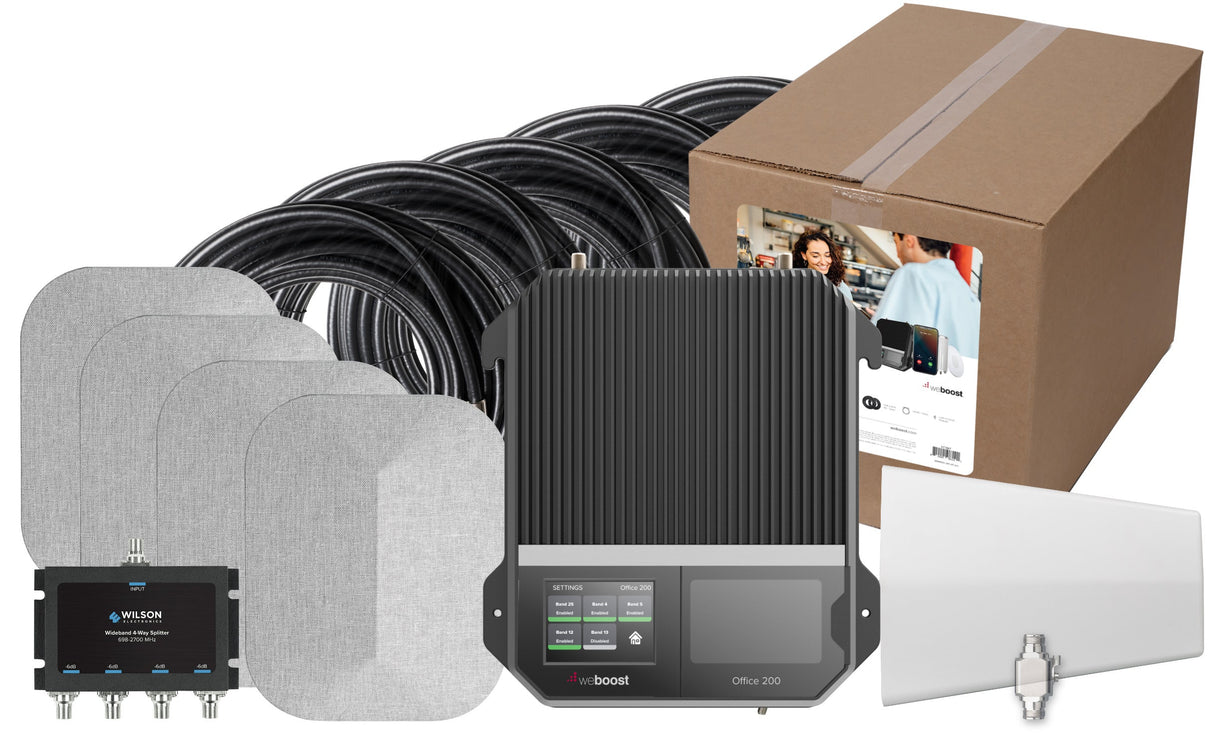

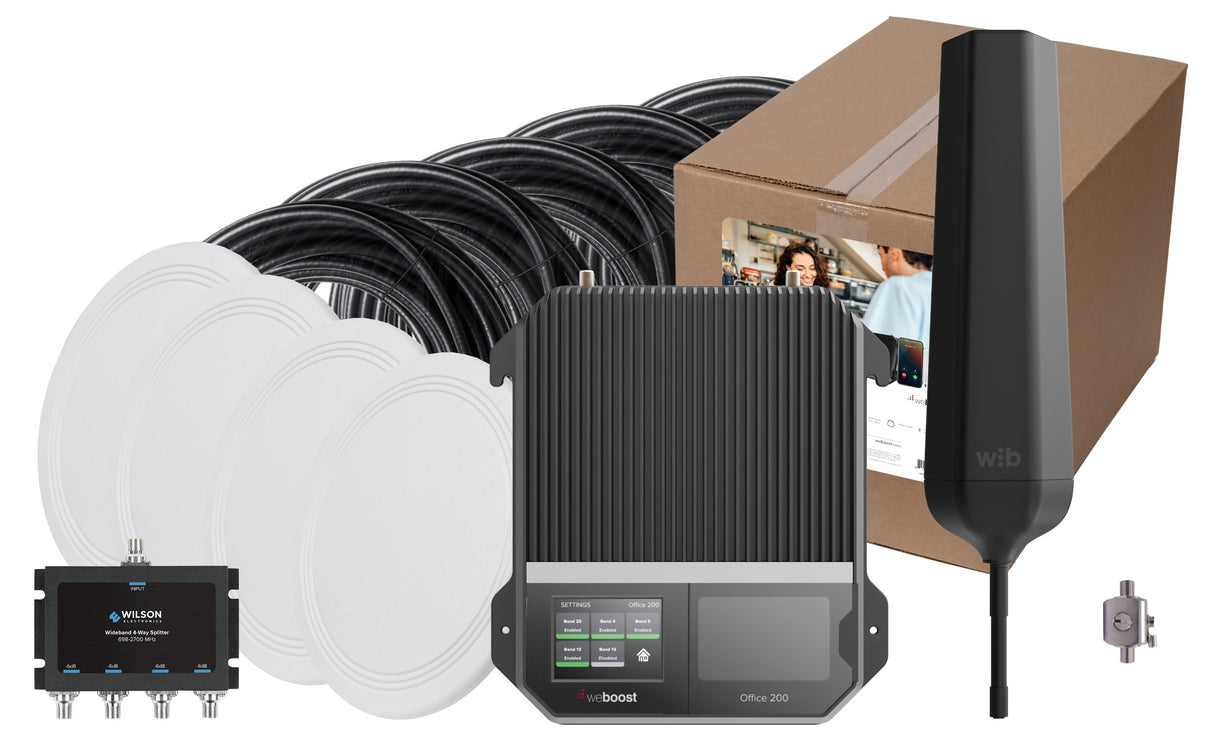

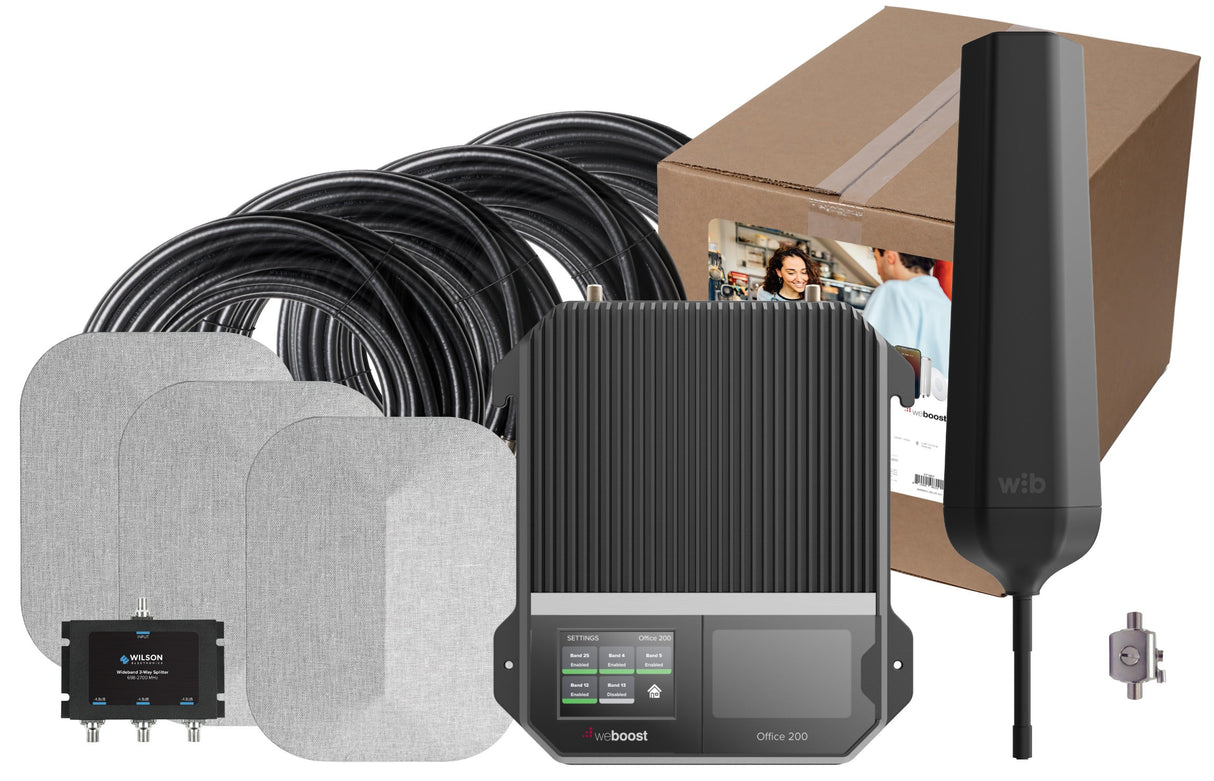

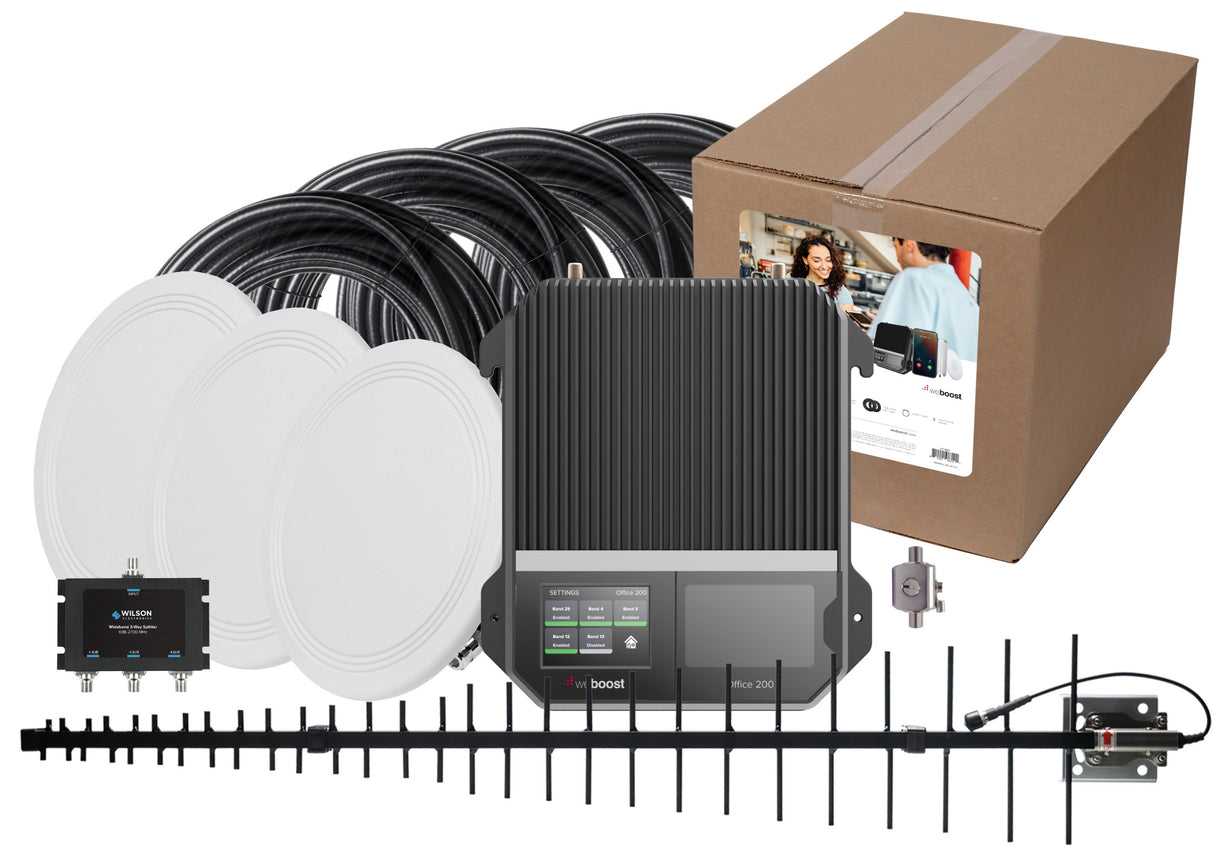

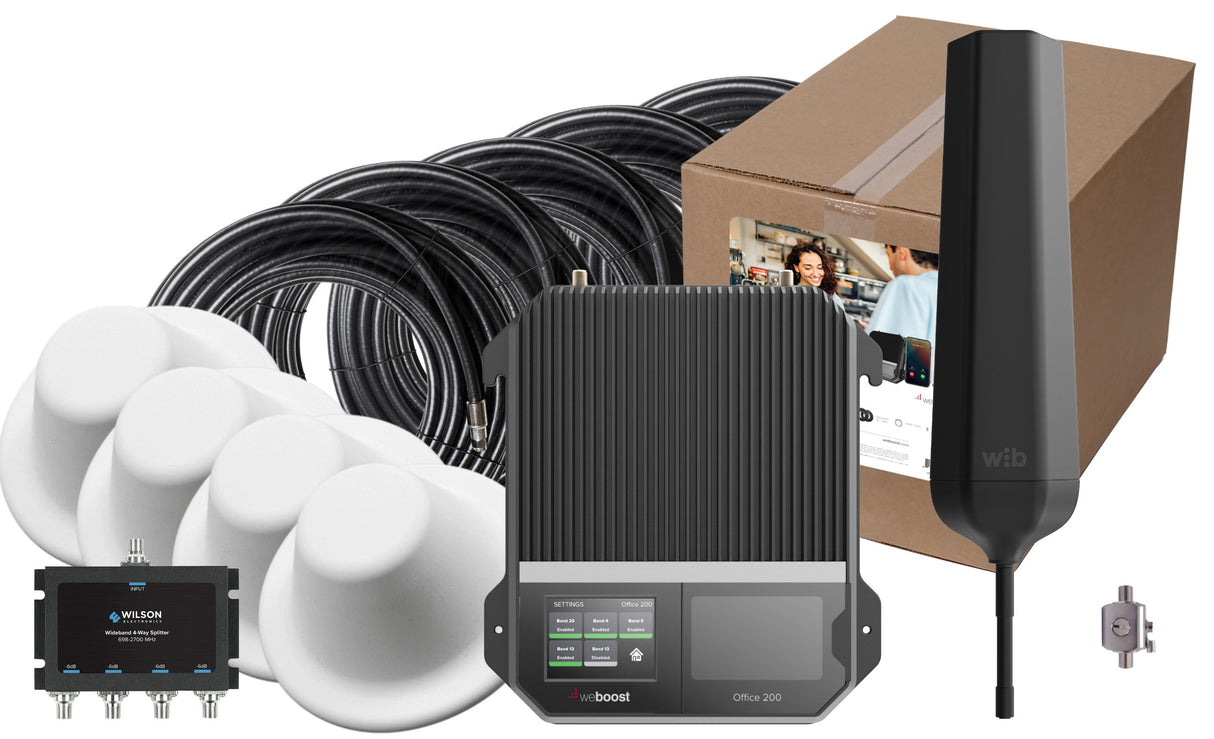

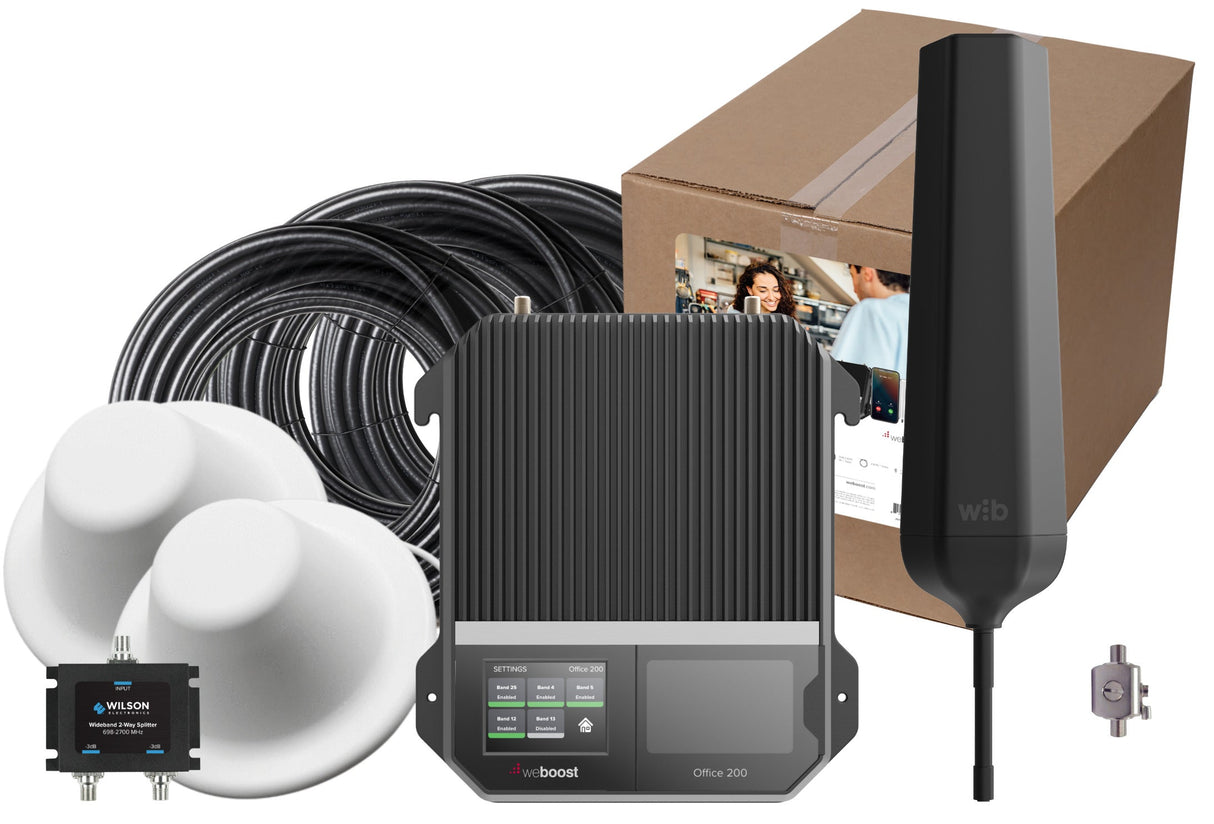

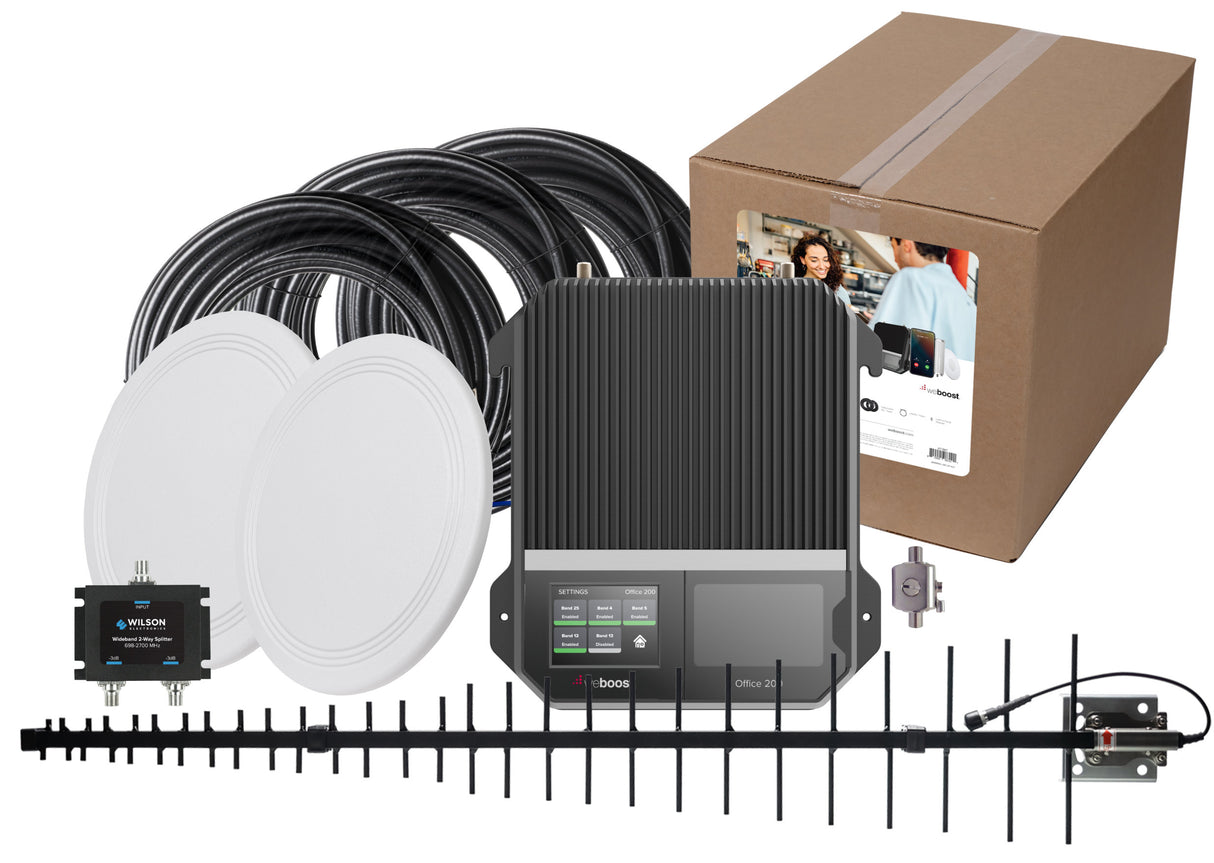

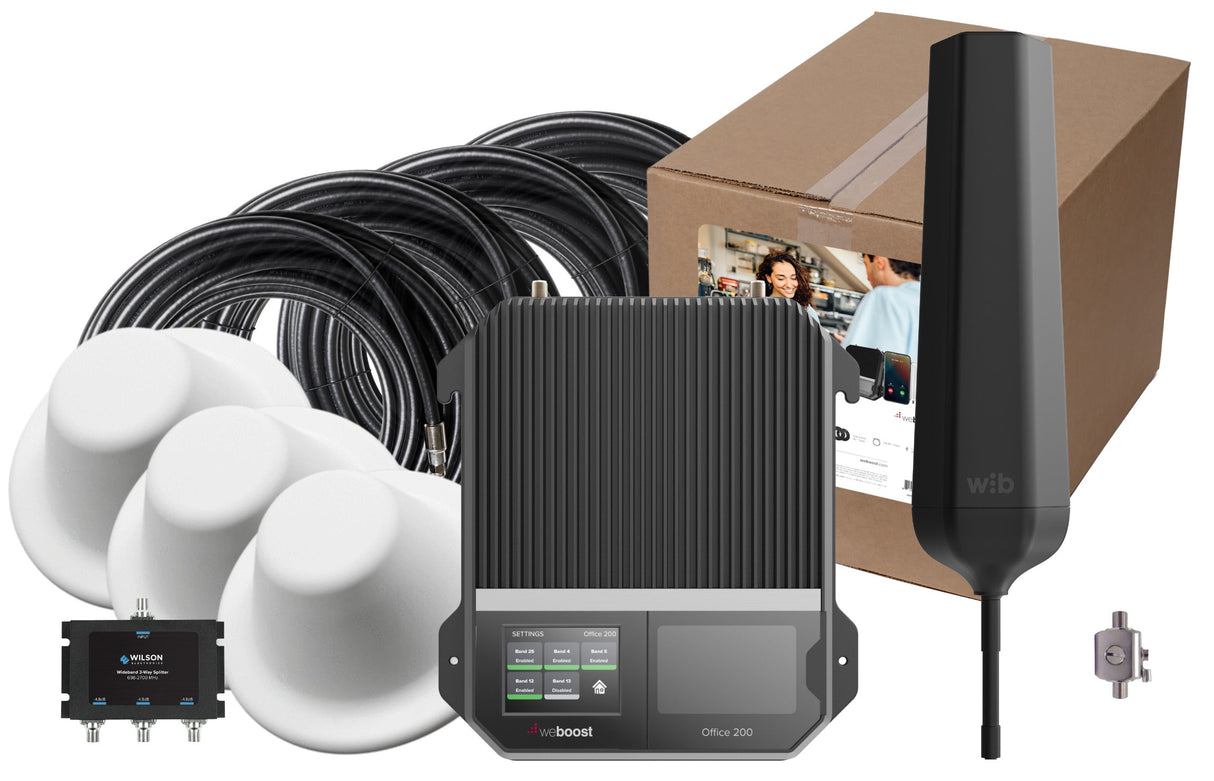

In the Box

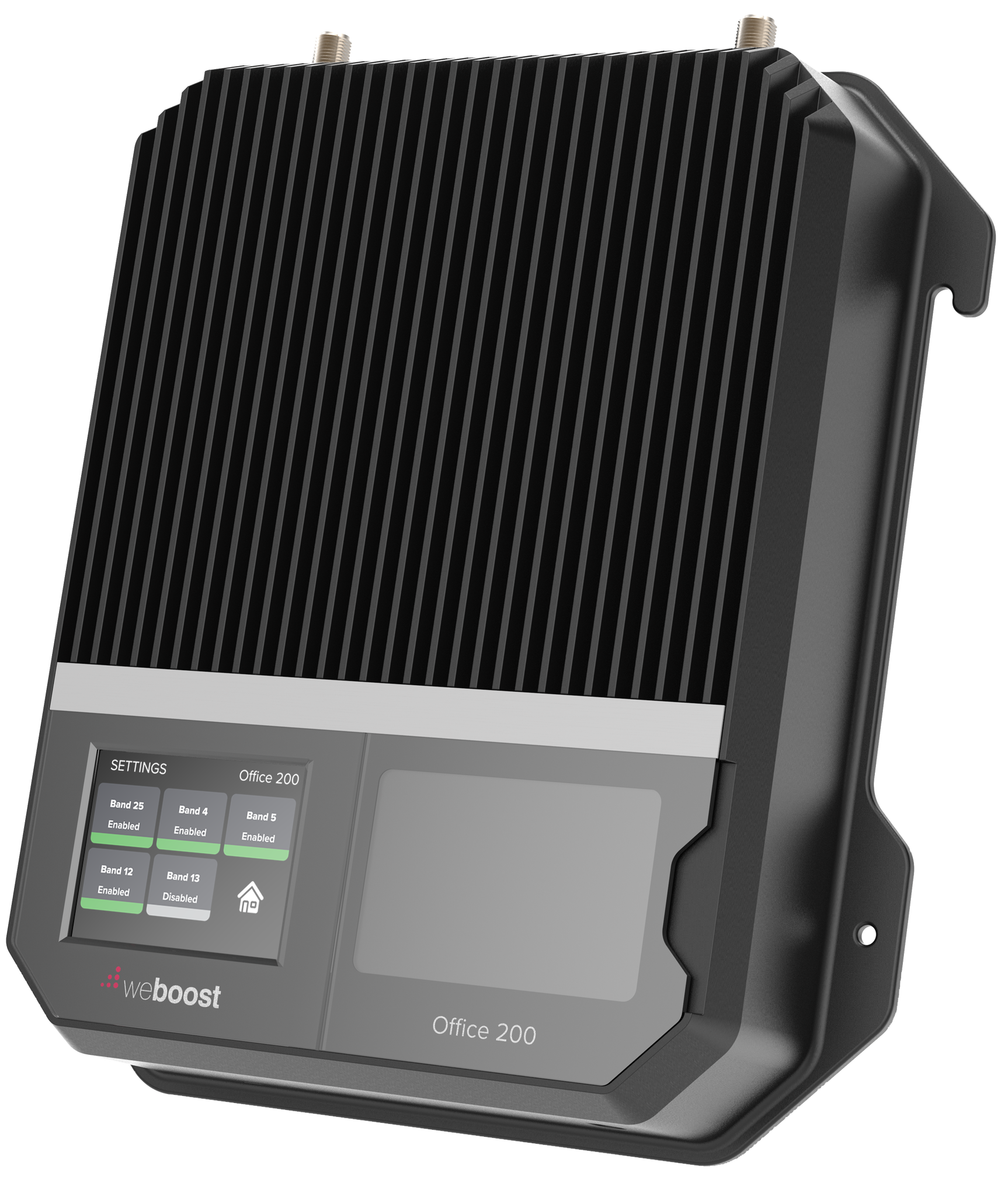

• weBoost Office 200 Amplifier

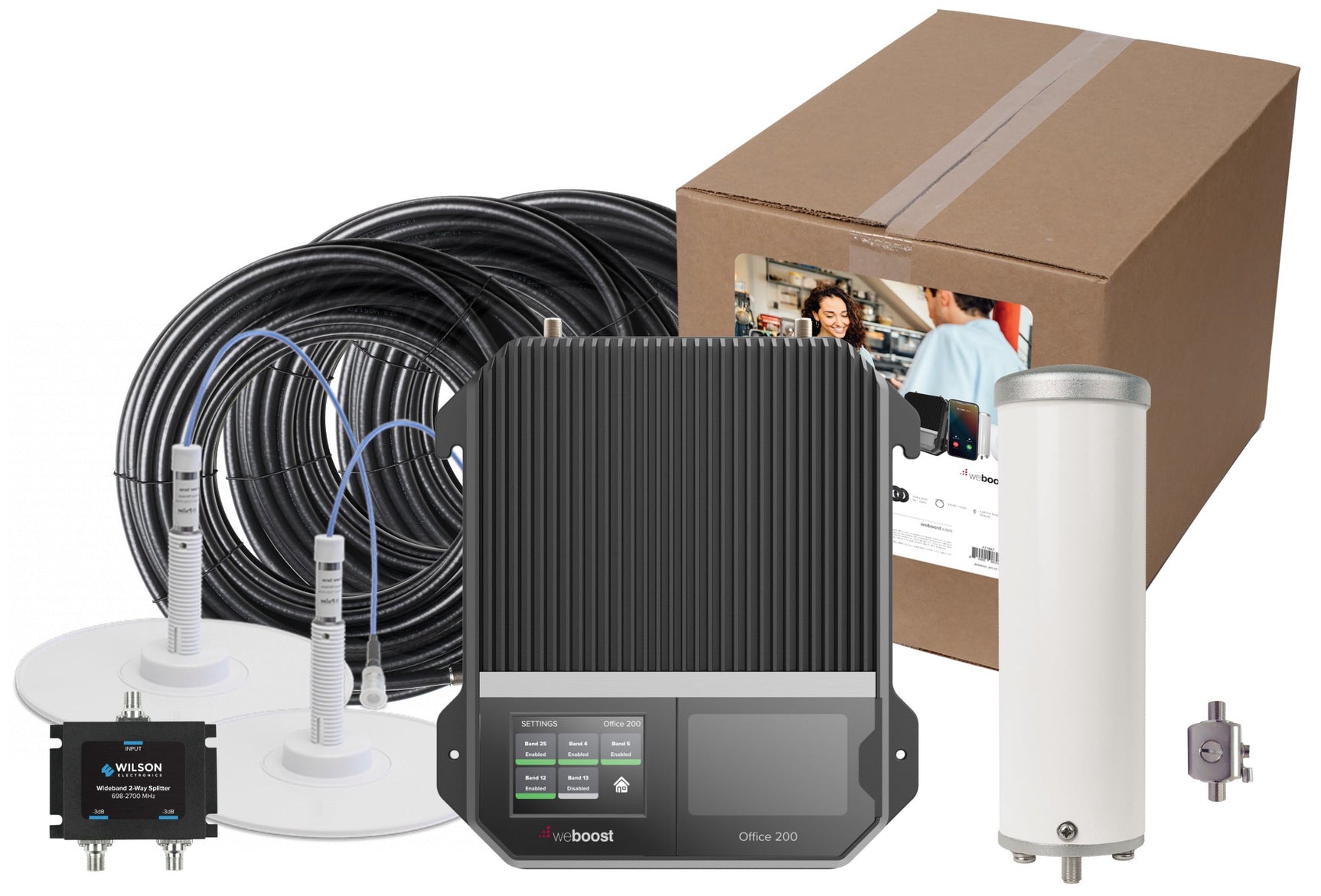

• Wilson Omni Outside Antenna Option
• Wilson Yagi Directional Outside Antenna Option

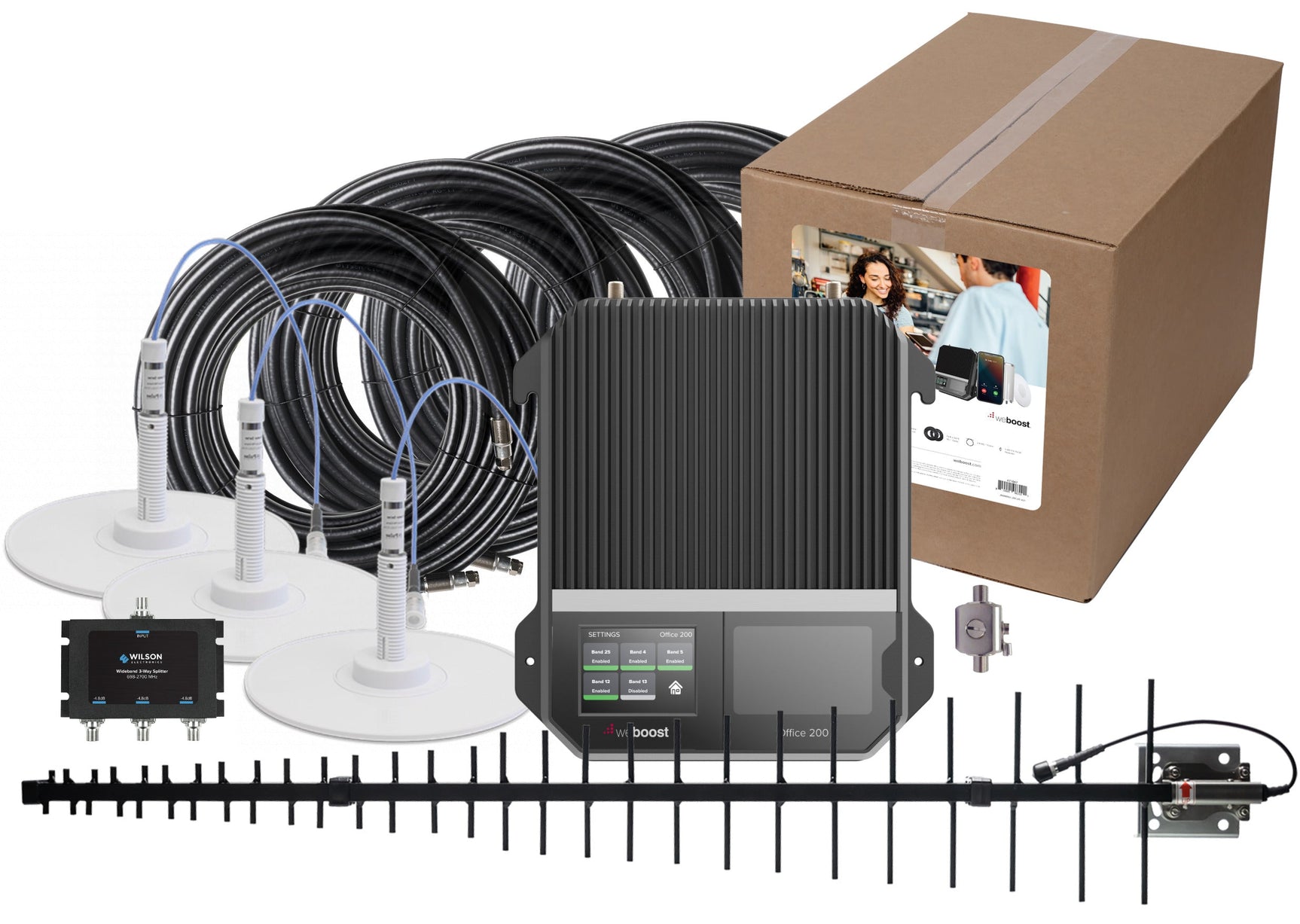

• Wilson LPDA Outside Antenna Option
• Wilson Dome Inside Antenna Option
• Wilson Ultra Thin Dome Inside Antenna Option

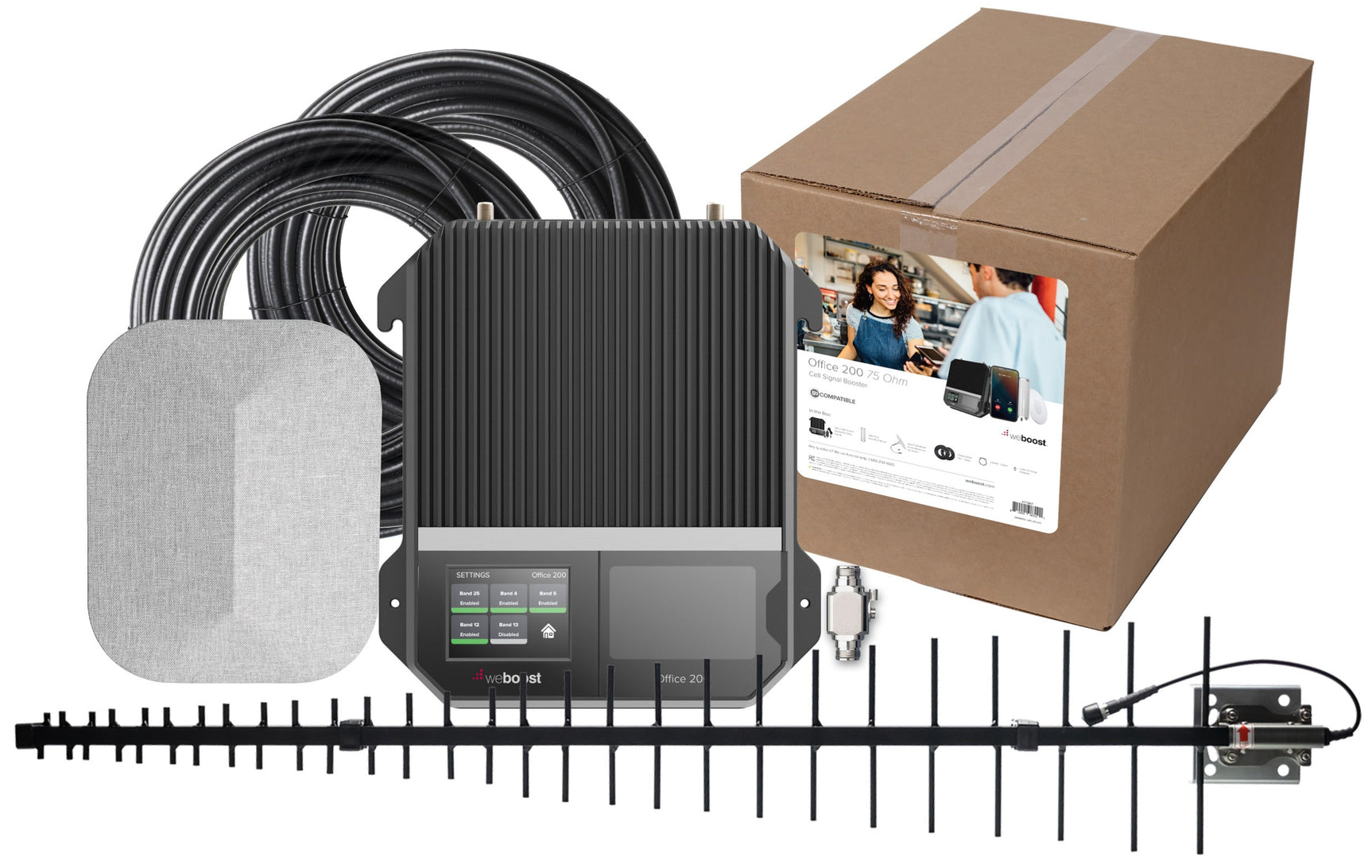

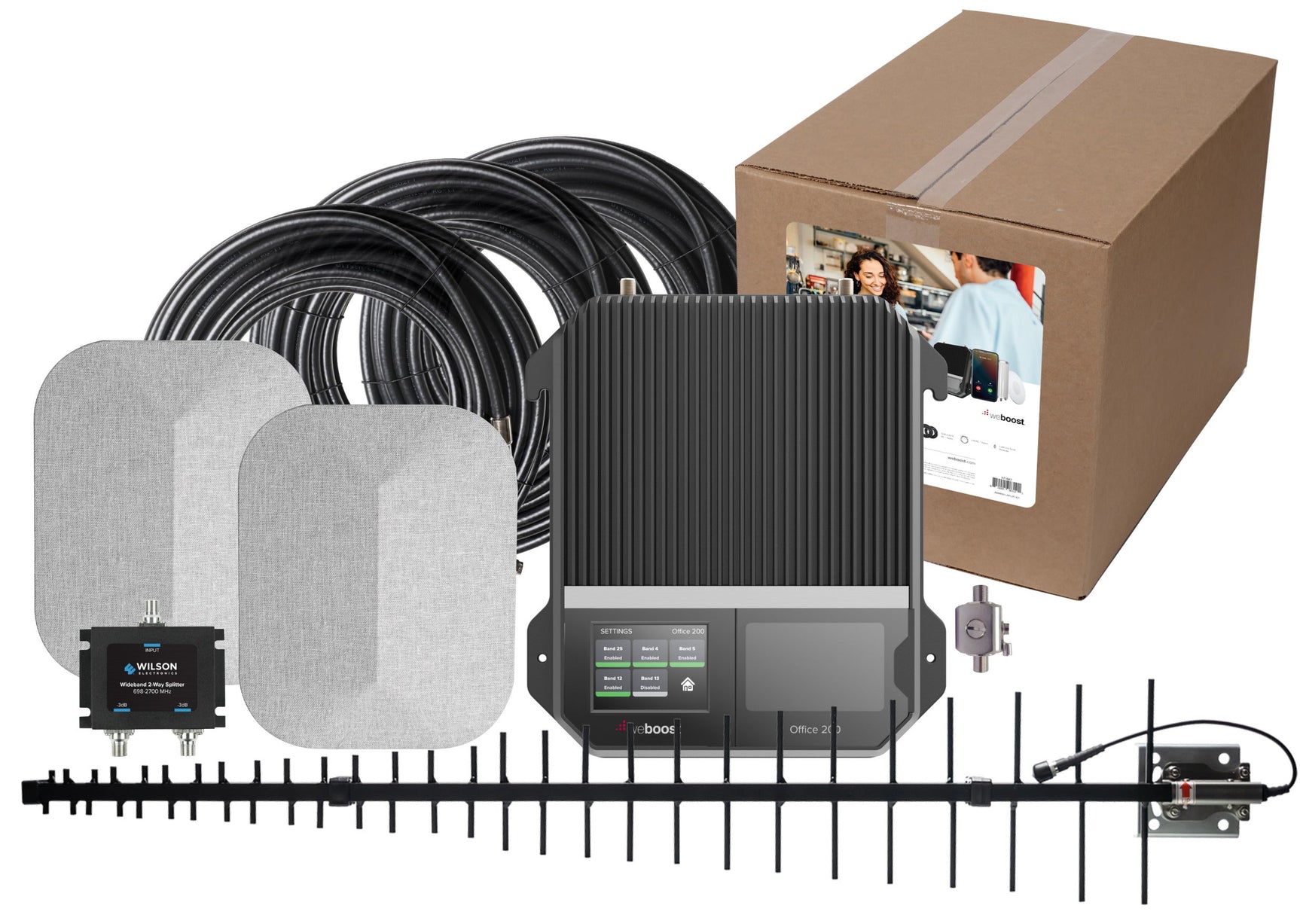

• Wilson Panel Inside Antenna Option

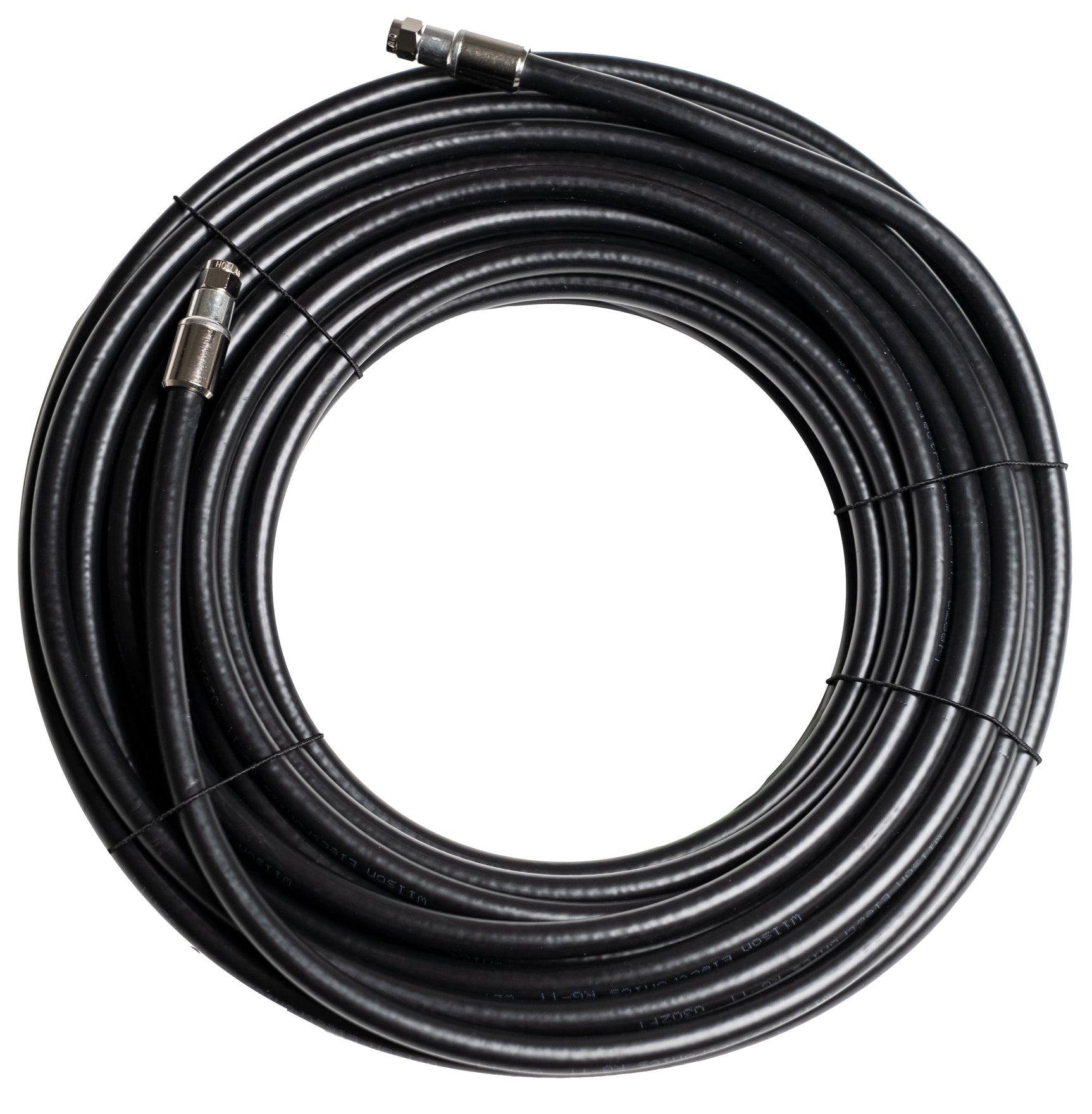

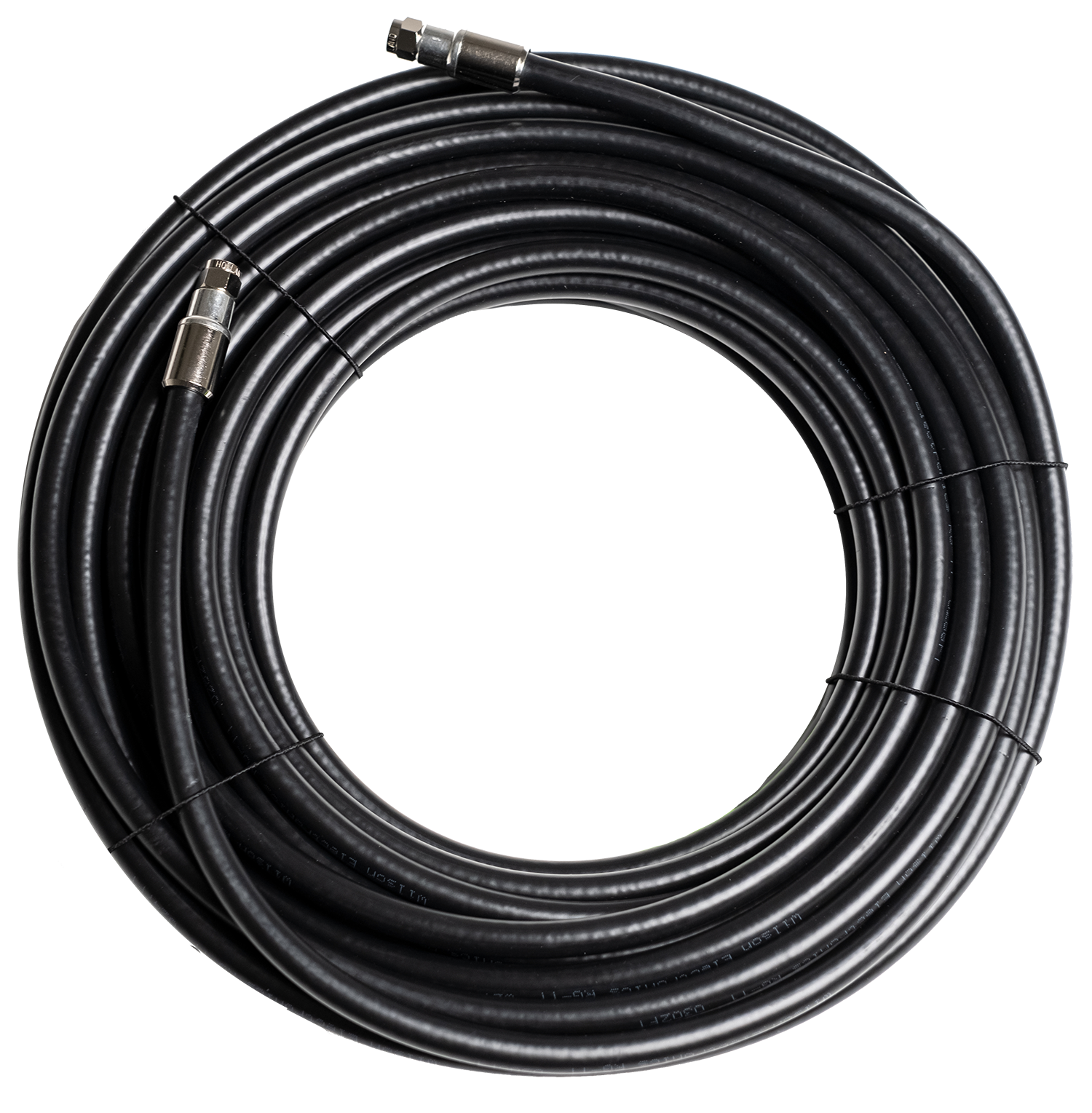

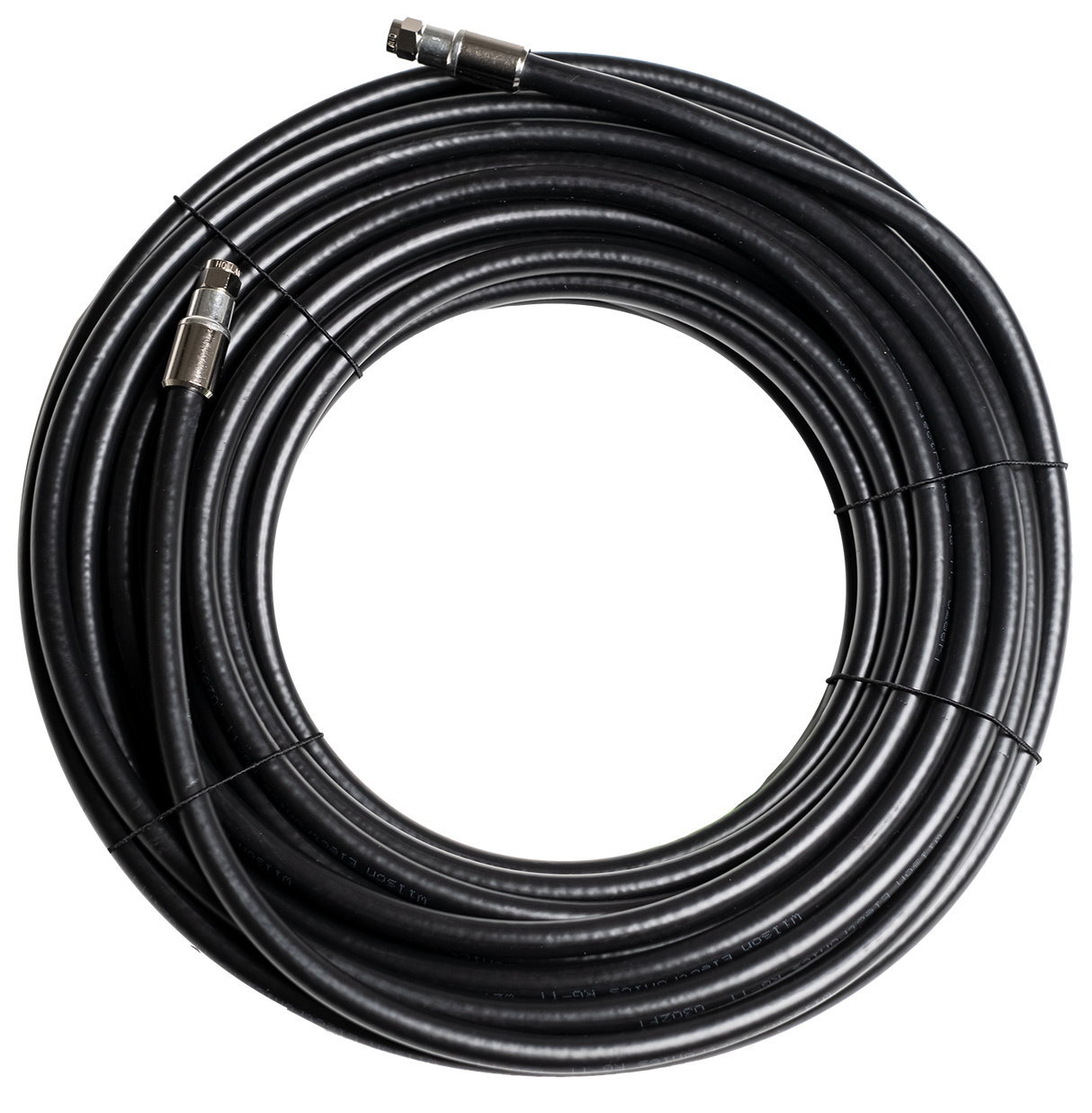

• 75 ft of weBoost RG11 Cable (For Outside Antenna Cable Run)
• 50 ft of weBoost RG11 Cable (For Each Inside Antenna Cable Run)

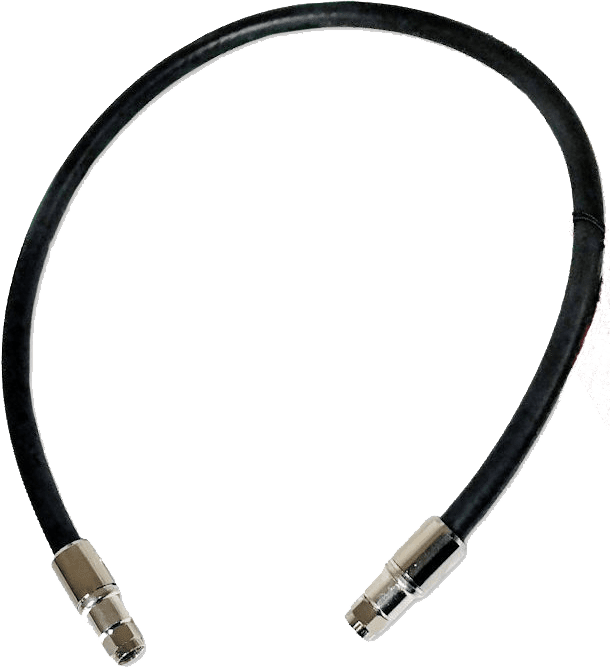

• 2 ft of weBoost RG11 Cable

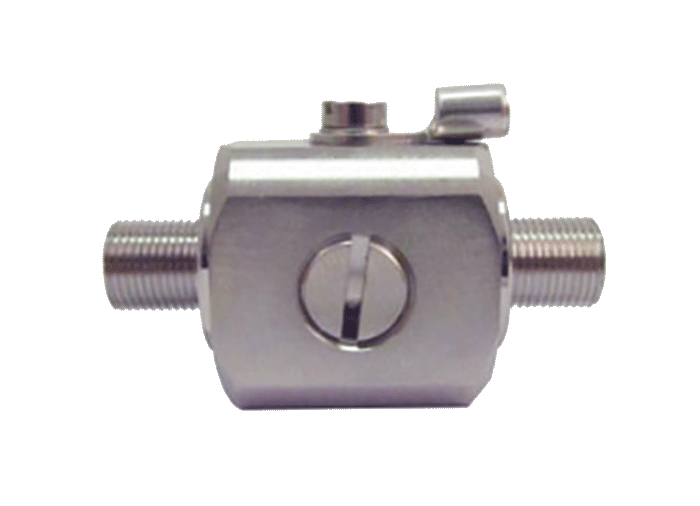

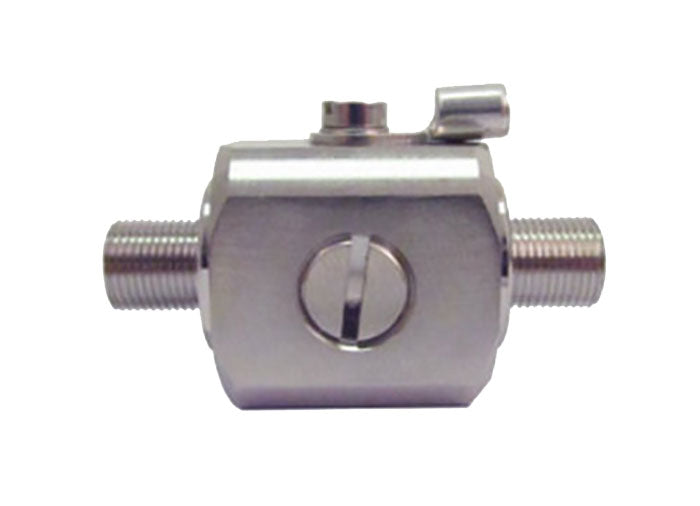

• Lightning Protector

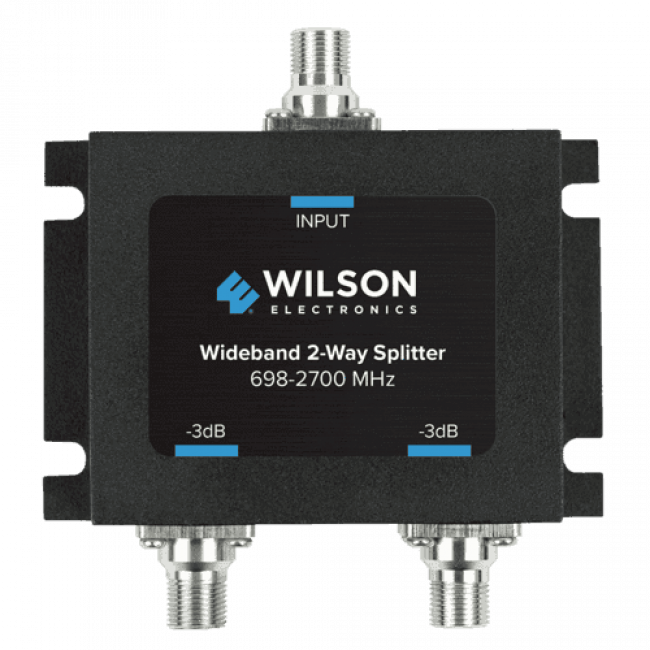

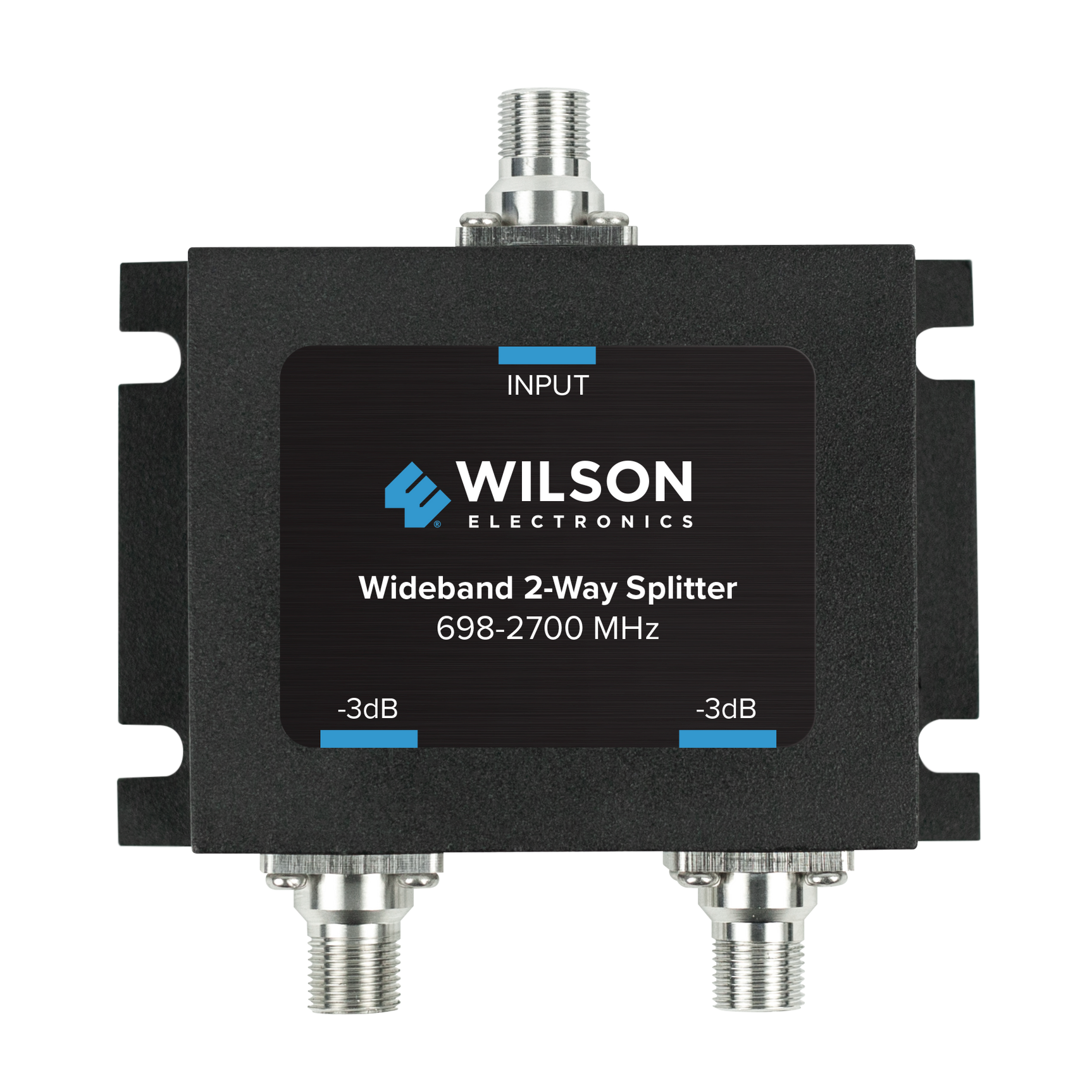

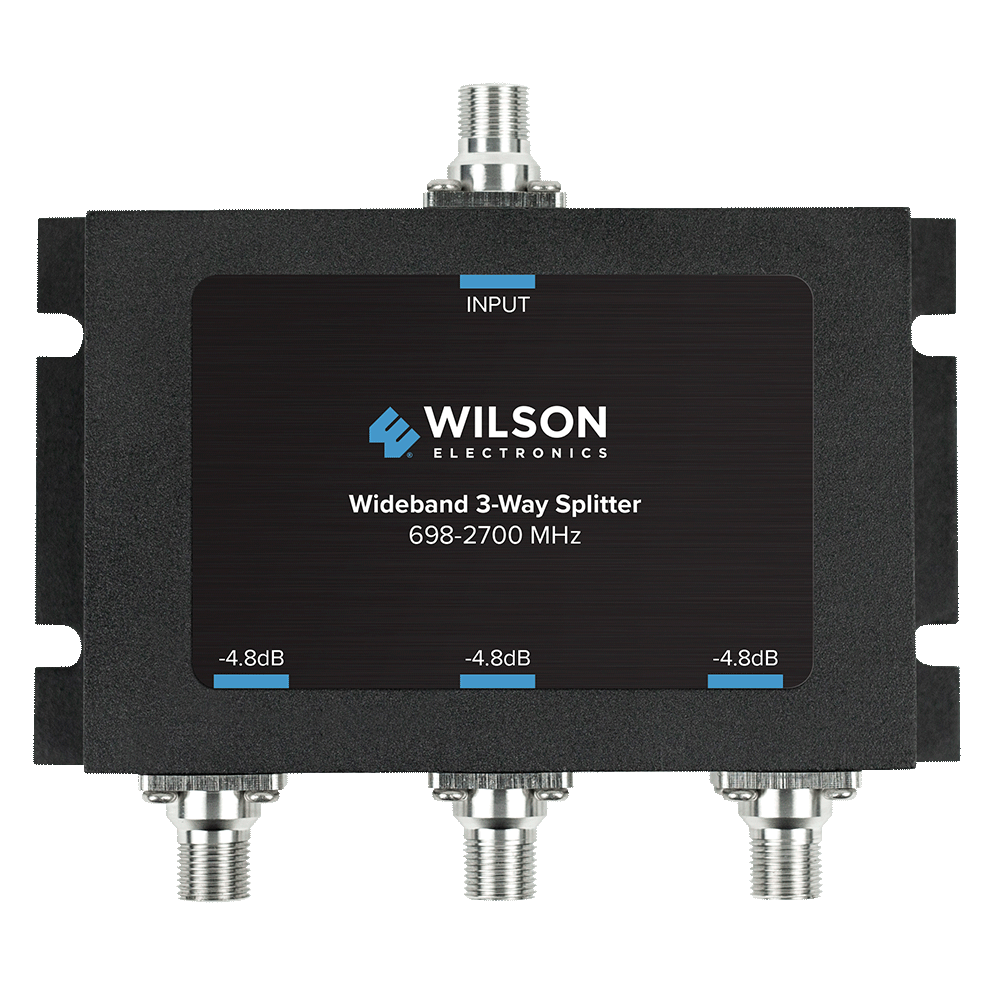

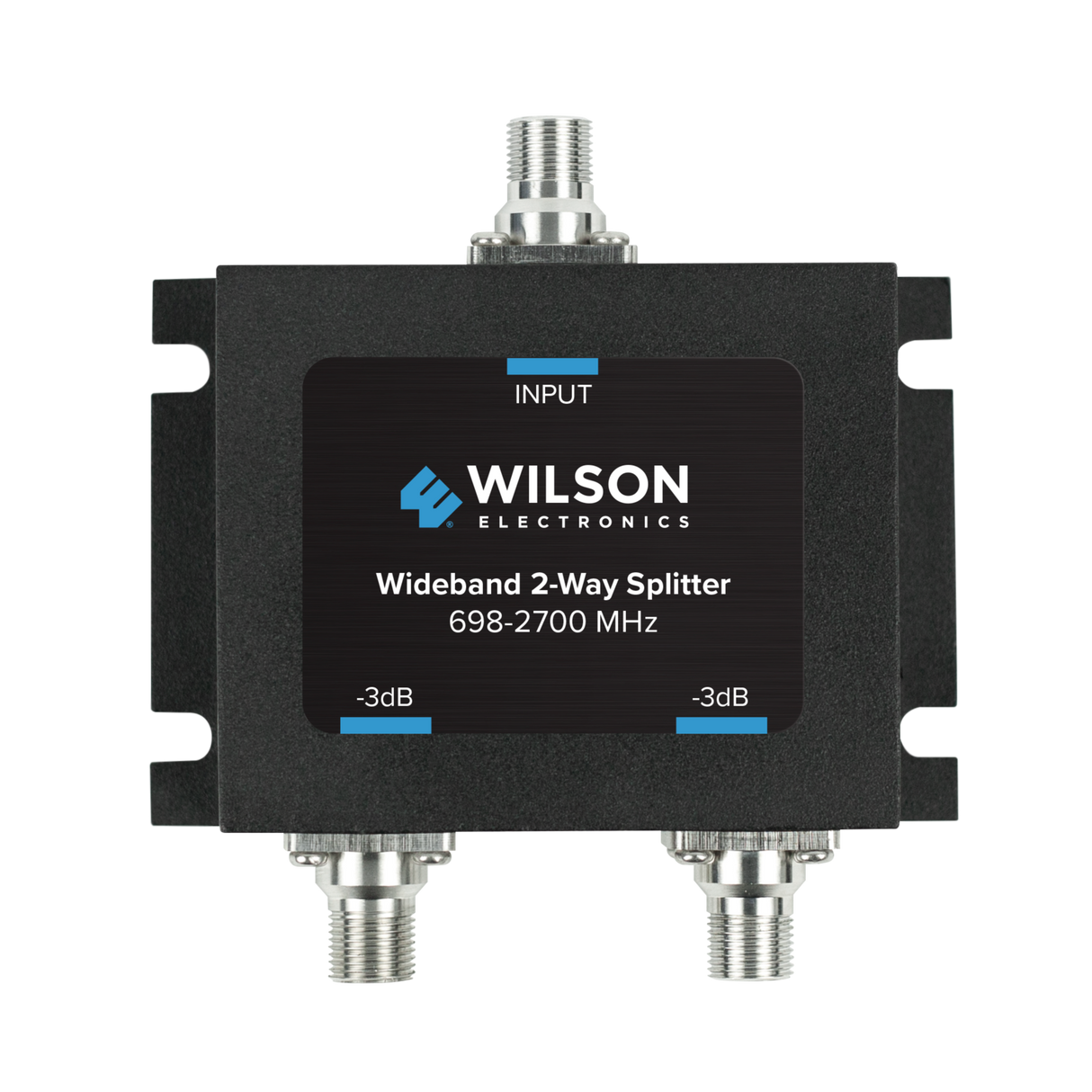

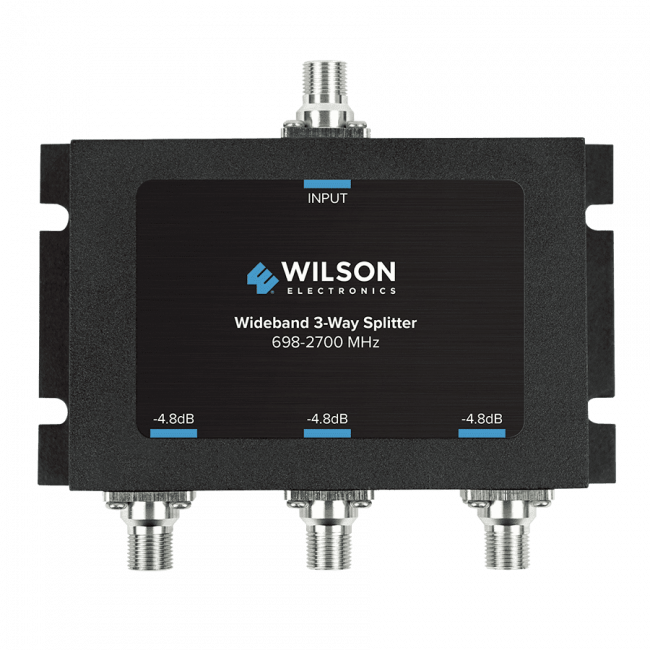

• 3-Way Splitter (For 3 Inside Antennas)

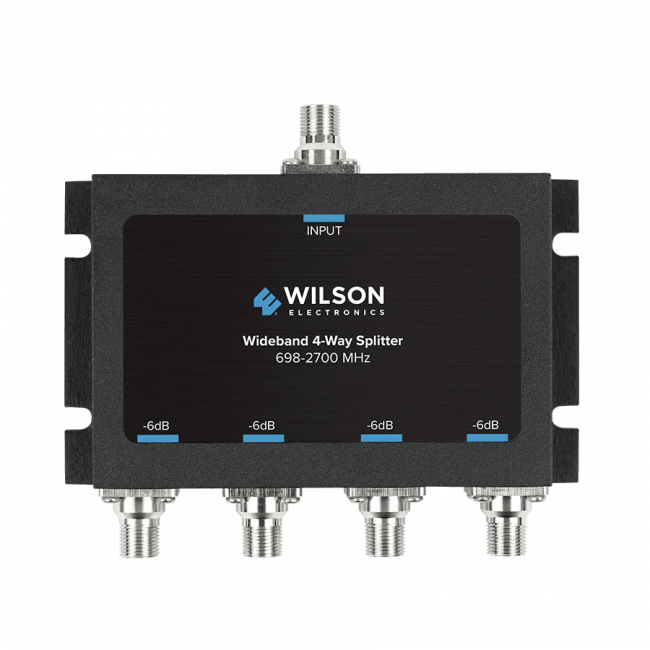

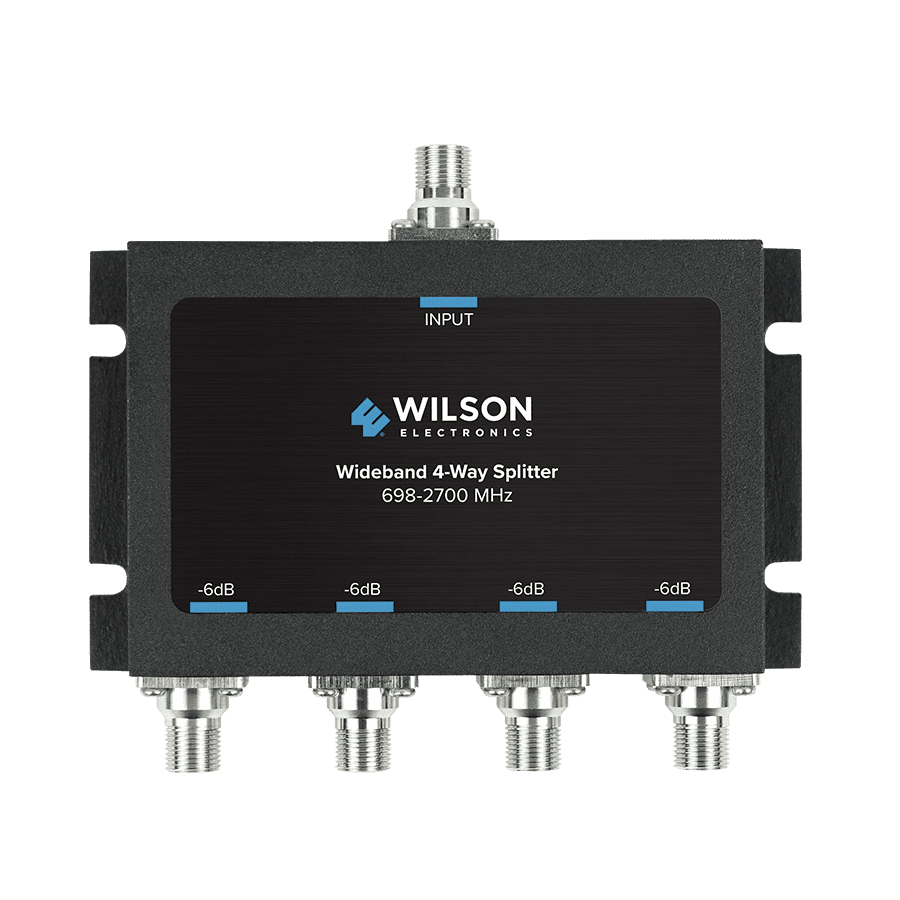

• 4-Way Splitter (For 4 Inside Antennas)

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
