WilsonPro IoT 5-Band Direct-Connect System

The Wilson M2M Direct-Connect Signal 4G Kits are the newest suite of direct connect signal booster kits from the new Wilson Electronics brand of signal boosters. The Wilson M2M Direct-Connect Signal 4G booster is a machine-to-machine signal booster, which is perfect for situations where you have a device that needs to have boosted signal funneled directly to it, such as ATMs, remote gate openers, security systems, etc. Each kit includes everything that you need to quickly and easily install the system and begin providing your device with boosted signal, but if your device does not have an SMA connector, then you may need an additional adapter. The booster will amplify all of the networks for the major carriers in the United States, so it will boost 3G and 4G LTE voice and data.

Kit Options

Wilson 460119 Signal 4G Kit with AC Power Adapter
This Wilson M2M direct-connect Signal 4G kit includes an AC adapter to power the Signal 4G amplifier. You should choose this kit if you have a standard outlet available to power the amplifier.

Wilson 460219 Signal 4G Kit with DC Hardwire Power Adapter
This Wilson M2M direct-connect Signal 4G kit includes a DC hardwire power adapter to power the Signal 4G amplifier. You should choose this kit if you need to hardwire in the power to the amplifier.

You Should Choose This Kit If

You have a device or machine that requires a boosted 3G or 4G LTE signal
The Wilson M2M Direct-Connect Signal 4G Kit is designed to receive a 3G or 4G LTE signal from pretty much any carrier in the United States, amplify it, and pass it directly to a device or machine that needs a better signal.

Coverage Area

An M2M signal booster connects directly to the device or machine that it is providing boosted signal to, so there is no coverage area created with this type of booster.

Supported Carriers

The Wilson Signal 4G Signal Booster Kit supports all of the networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

• AT&T 2G, 3G & 4G LTE
• Verizon 2G, 3G & 4G LTE
• Sprint 2G, 3G & 4G LTE
• T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
• US Cellular 2G, 3G & 4G LTE
• All other carriers using 800 MHz, 1900 MHz, and AWS 1700/2100 MHz

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

In the Box

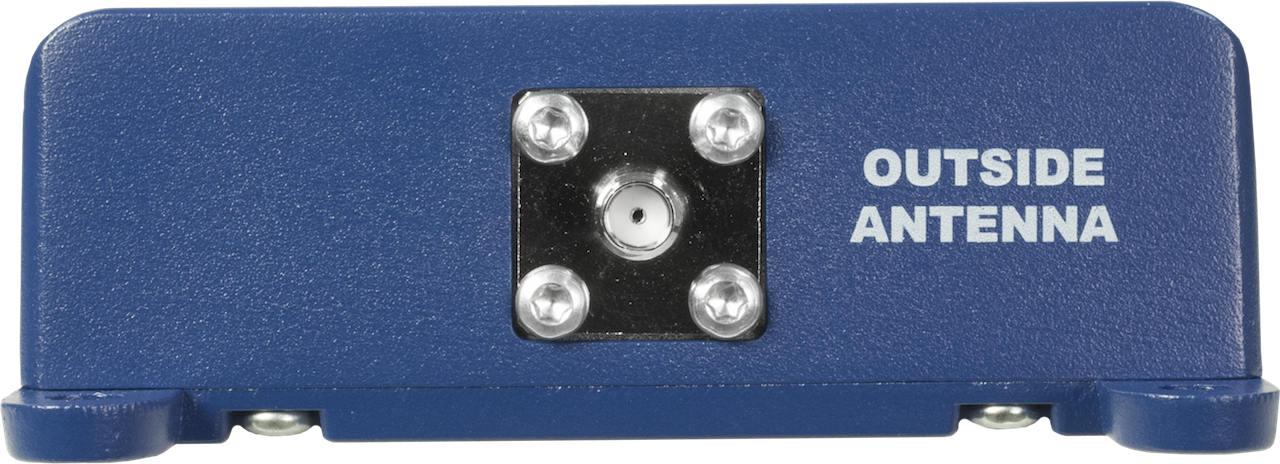

• Wilson M2M 15 dB Direct-Connect Amplifier
• Wilson 4 in. Mini-Mag External Antenna (301126)
• Wilson AC (850012) or DC Hardwire (859923) Power Supply
• Wilson 3' RG174 coax cable with SMA adapters
