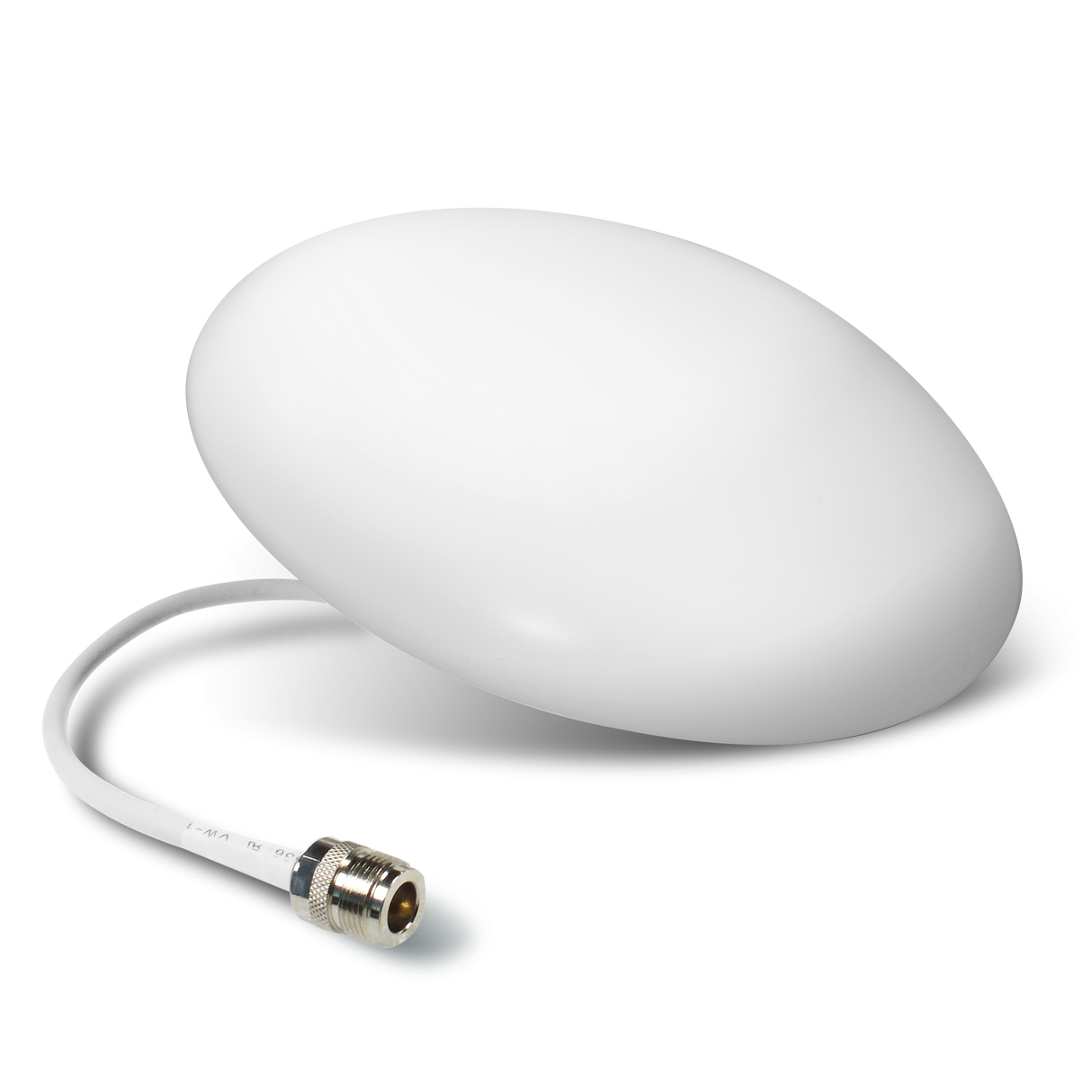

SureCall SC-528W Ultra Thin Ultra-wideband Dome Antenna (617-2700 MHz)

The SureCall SC-528W Ultra Thin Antenna is a state-of-the-art, ceiling-mount antenna optimized for in-building cell phone signal enhancement across a wide frequency range. This antenna is specifically designed to support 2G, 3G, 4G, 5G, and WLAN systems, making it an excellent choice for a variety of cellular, PCS, AWS, and LTE frequency applications.

Key Features:

• Frequency Range: Covers 617-697 MHz, 698-960 MHz, and 1710-2700 MHz, ensuring broad spectrum compatibility.
• Beamwidth: Provides a 360° horizontal beamwidth for comprehensive coverage within the installation environment.
• Gain: Offers variable gain levels of 2, 4, and 6 dBi, adaptable to the required signal amplification needs.
• Design: Features an ultra-thin profile with a diameter of 12.2 inches and a minimal height of 2.11 inches, blending seamlessly into any indoor setting.
• Connector: Equipped with an N-Female connector for reliable connectivity with SC-400 type cables (sold separately).

Installation Options:

Installation is straightforward, whether access is available above the ceiling or not:

1. With Crawl Space: Drill a hole, place the antenna cable through, secure from above with a fixing nut, and connect to the SC-400 cable.
2. Without Crawl Space: Drill necessary holes for the metal mounting plate, secure it, mount the antenna, and connect to the SC-400 cable.

Ensure the antenna is centrally located to maximize indoor signal coverage and minimize physical obstructions. The antenna's performance is influenced by the power generated by the booster and the signal level received from the outdoor antenna.

Environmental and Mechanical Specifications:

• Material: Constructed from PC+ABS for durability.
• Weight: Weighs approximately 1.21 lbs, ensuring a light yet sturdy installation.
• Operating Temperature: Functional between -45ºF to +108ºF, suitable for various climatic conditions.
