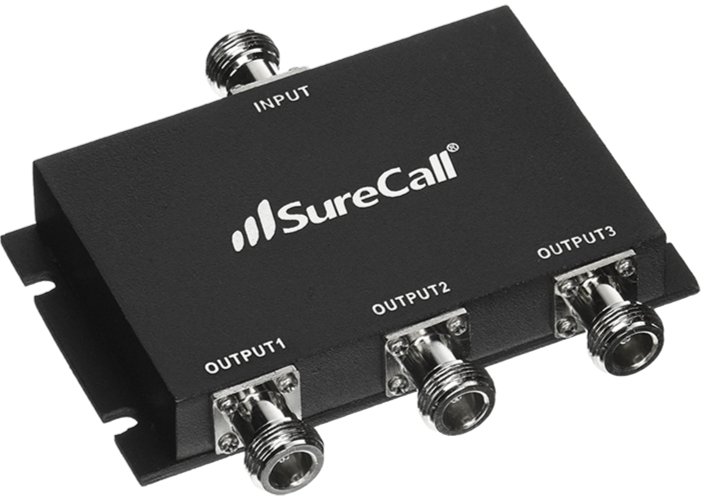

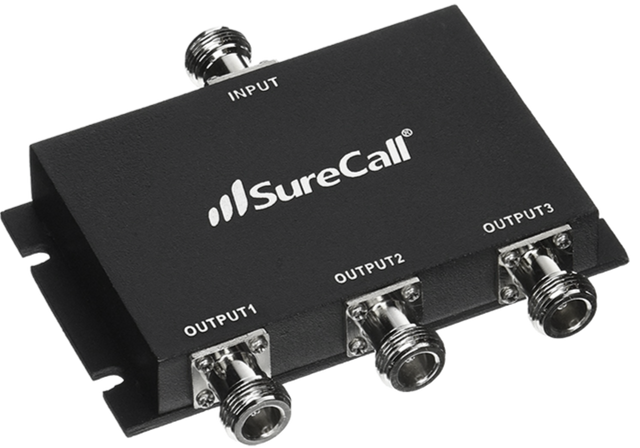

SureCall SC-WS-3-5G 50 Ohm Ultra-Wideband Three-Way Signal Splitter (617-2700 MHz)

The SureCall SC-WS-3-5G is an ultra-wideband three-way signal splitter that is designed to distribute the input signal evenly across three outputs. It operates effectively over a frequency range of 600 MHz to 2700 MHz, making it suitable for 2G, 3G, 4G, and 5G networks.

Key Features:

• Operating Frequency: 600 MHz to 2700 MHz, accommodating a wide range of cellular frequencies.
• Distribution Loss: 4.8 dB, ensuring minimal signal reduction across the splits.
• Insertion Loss: Less than or equal to 0.7 dB, minimizing the loss of signal strength through the splitter.
• SWR (Standing Wave Ratio): ≤1.3 : 1, indicating efficient power transmission and reduced signal reflection.
• Isolation: Greater than or equal to 20 dB, enhancing signal separation and clarity between outputs.

Technical Specifications:

• Impedance: 50 Ohms, compatible with standard RF installations.
• Power Capability: Can handle up to 50 Watts, suitable for a range of signal enhancement scenarios.
• Connectors: Equipped with N-Female connectors for secure and reliable connectivity.
• Dimensions: Measures 4.73 inches by 4.22 inches by 0.83 inches (120 x 107 x 21 mm).
• Weight: Weighs 7.8 ounces, ensuring it is both sturdy and easy to install without being cumbersome.
• Operating Temperature: Functional between -31°F and +140°F, capable of operating in diverse environmental conditions.

This three-way splitter is ideal for use in settings where a single signal source needs to be distributed evenly to multiple locations, such as in large buildings or complex network installations.
