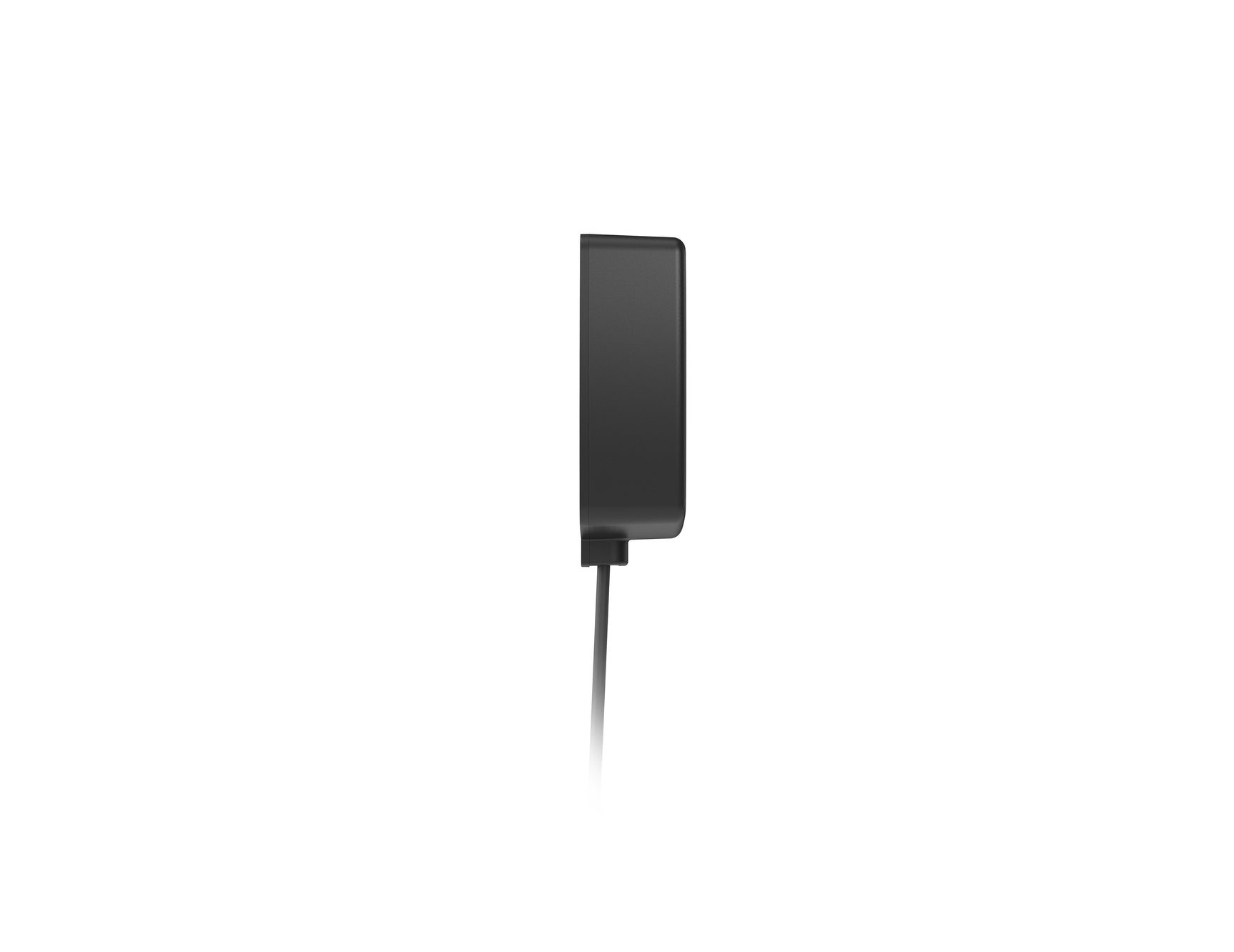

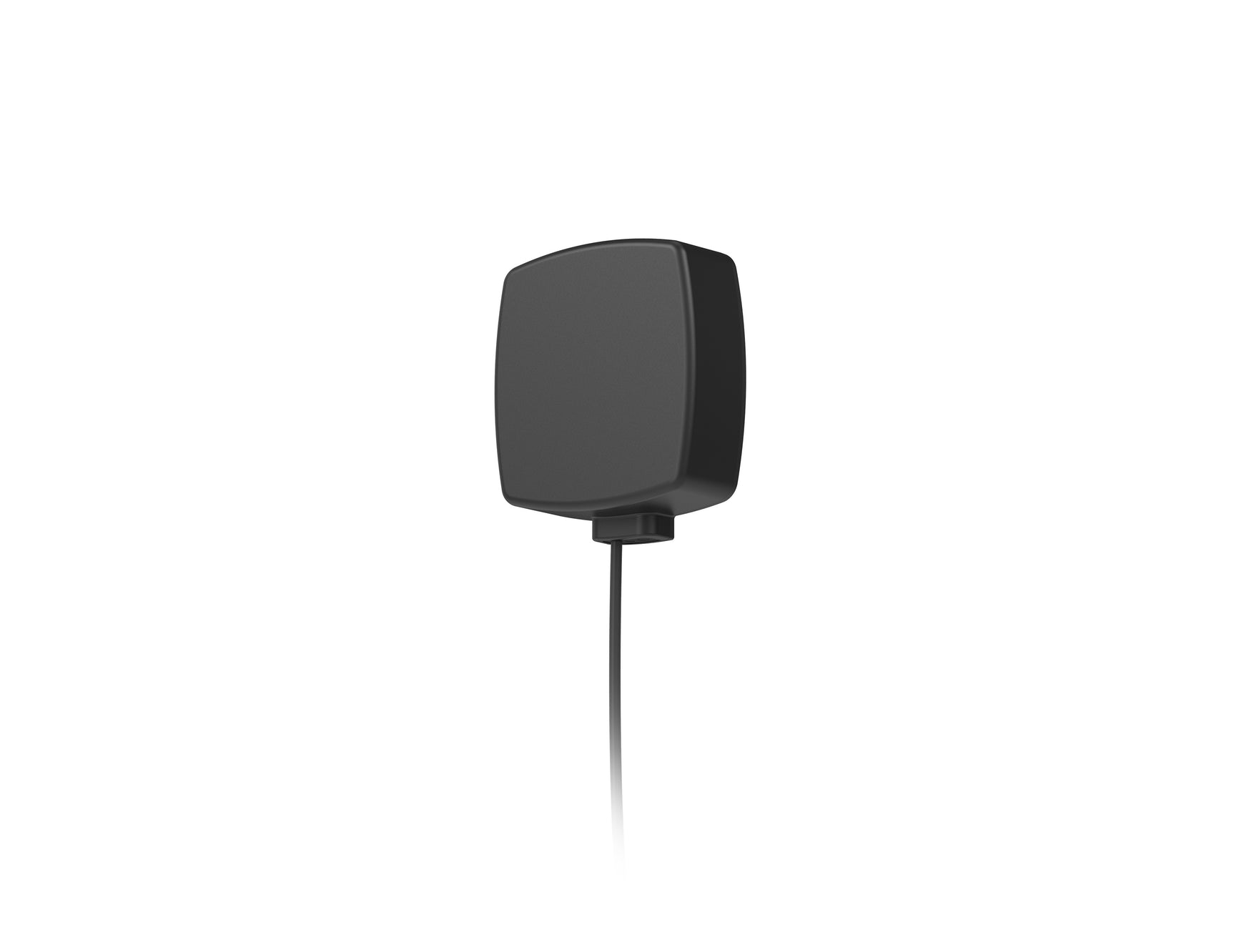

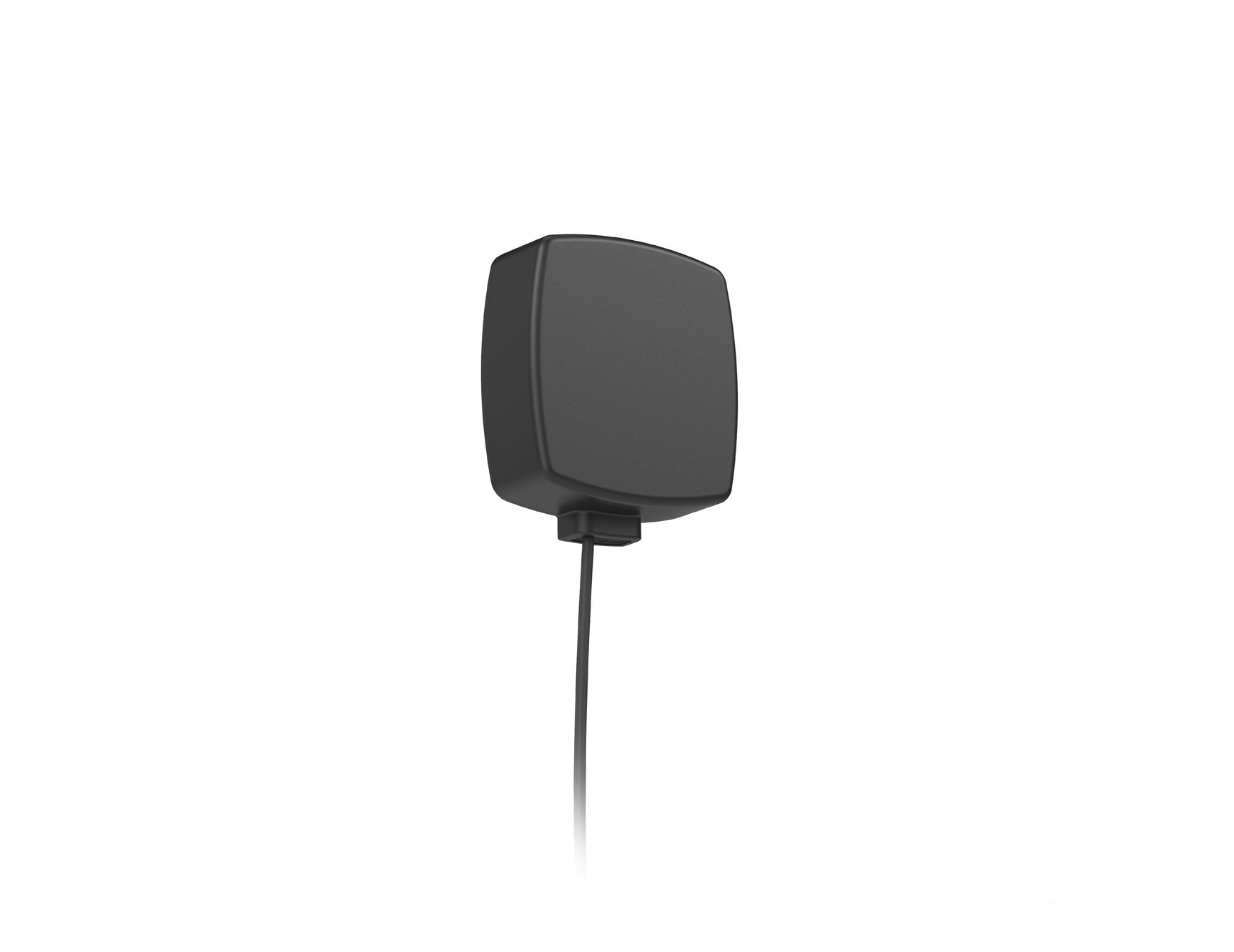

Wilson Mini In-Vehicle Panel Antenna | 310004
60-Day Returns • Free Shipping $100+ • 2-Year Warranty
Product Info
Product Info
The Wilson Mini In-Vehicle Panel Antenna is a compact yet powerful solution for enhancing cellular signal reception inside vehicles. Designed to support a wide range of networks, including 5G, 4G, 3G, and 2G, this antenna ensures consistent and reliable connectivity on the go. Its low-profile design, weather-resistant construction, and easy Velcro mounting make it an excellent choice for improving signal strength in various driving environments.
Key Features
- Supports multi-band frequencies from 617 MHz to 5925 MHz, including 5G.
- Delivers high gain for stronger and more stable signals.
- Ground plane-independent design for versatile mounting locations.
- Durable with IP67/IP69 ratings for resistance to dust and water.
- Compact dimensions (3.5" x 3" x 1") for unobtrusive in-vehicle installation.

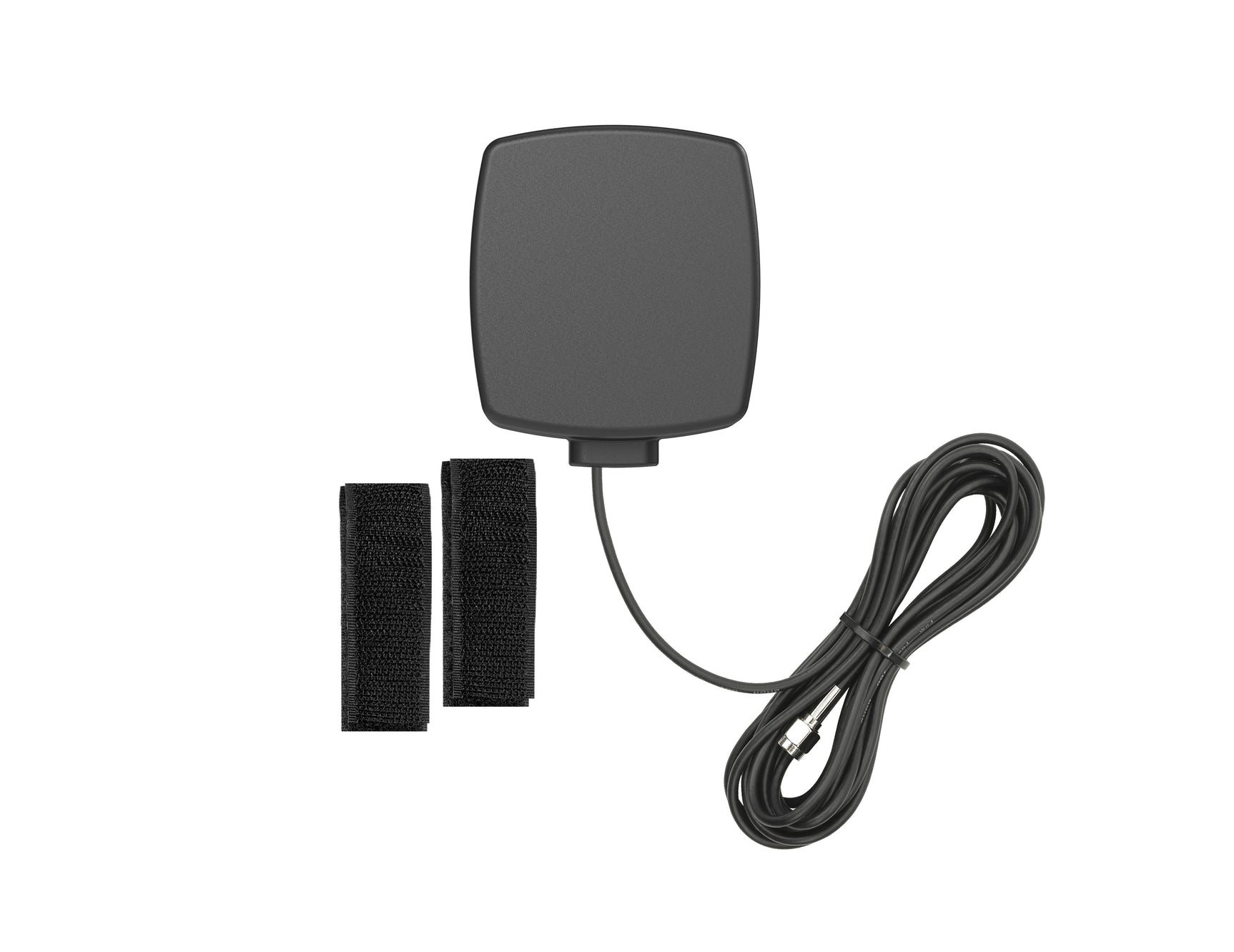

- Includes a 10-foot DACAR-302 cable with SMA male connector for easy setup.
- Omni-directional reception for comprehensive 360° signal coverage.
- Operates in extreme temperatures ranging from -40°C to +85°C (-40°F to +185°F).
Specifications
- Frequency Bands: 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz.
- Return Loss: Ranges from ~-7.0 dB to ~-11.2 dB for efficient performance.
- VSWR: ~2.1:1 to ~3.1:1 for optimal signal transfer.
- Efficiency: Varies between ~25.1% and ~56.3%, depending on frequency.
- Peak Gain: Up to ~6.3 dBi for improved signal strength.
- Impedance: 50 Ohms for compatibility with cellular systems.
- Cable Length: 10 feet (3 meters) for flexible placement options.
- Radome Material: ASA UV-stable material for durability.
- Maximum Power: Supports up to 35 Watts.
Who Should Use This Antenna
The Wilson Mini In-Vehicle Panel Antenna is ideal for drivers who need reliable cellular connectivity on the road. Whether for work or leisure, this antenna ensures you stay connected even in areas with weak signal coverage. Its durability, compact size, and high performance make it suitable for frequent travelers, commuters, and anyone requiring uninterrupted communication while driving.
```
